|Usage:||Wood Cutting,Panel Cutting||Type:||Table Panel Saw， Sliding Table Saw|
|Application:||Panels Wood Cutting Machine||Main Saw Blade Motor:||5.5KW|
|Scoring Saw Blade Motor:||1.1KW|
sliding table panel saw,
sliding panel saw machine

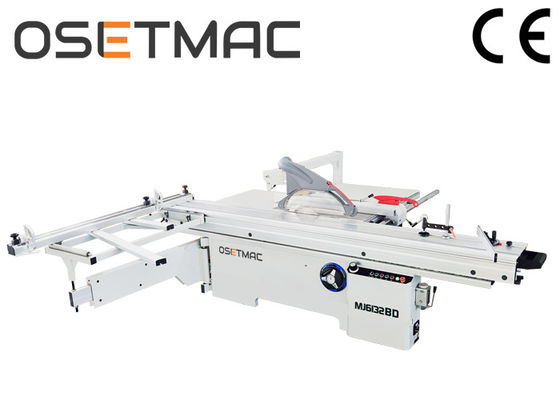

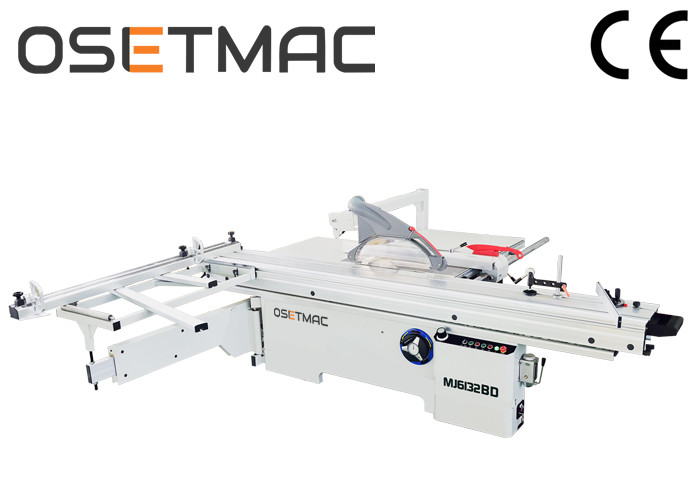

Woodworking Machine Sliding Table Saw MJ6132BD for Plywood and Panel Cutting
Woodworking Sliding Table Saw Features:
* Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
* Import columnar guide rail assembled with sliding table ,higher precision and longer service life.
* The working table surface is oxidation treated, beautiful and hardwearing.
* 0-45 degree tilting saw blade.
This machine uses linear guide-way to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compressible strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

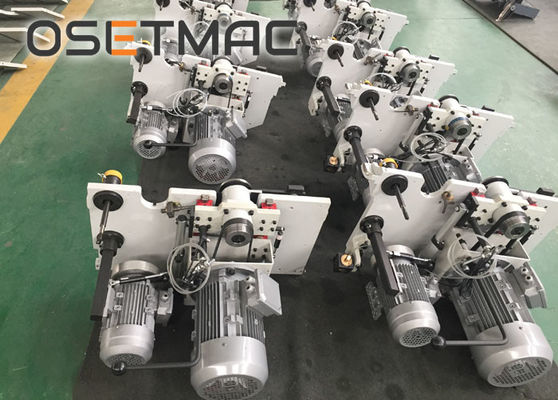

Main Saw and Scorning Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
Sliding Table Structure and Feature
Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guide-way of movable table is steel bar structure. After quenching and chroming, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.
Optional Device---Big Dust Cover and Digital Readout
Big Dust Cover
This device can make sure better dust collection effect, which is suitable for main saw blade diameter 400mm and maximum cutting height 120mm. It’s position is flexible, and it’s very safe for the operator.
We can provide customization according to your different requirements. You can choose different digital readout for your machines.
|Sliding Table Dimension||3200*380mm|
|Cast Iron Table Dimension||910*620*80mm|
|Length Extension Table||905*680*70mm|
|Width Cutting Extension Table||640*680*70mm|
|Main Saw Diameter||300mm|
|Main Saw Blade Diameter Maximum||350mm|
|Main Saw Bore Diameter||30mm|
|Max. Cutting Height With Bade at 90||80/100mm(φ300/350)|
|Max. Cutting Height With Bade at 45||50/70mm(φ300/350)|
|Main Motor Power||5.5KW|
|Main Blade Speed||4000/6000RPM|
|Scorning Saw Blade Diameter||120mm|
|Scorning Saw Bore Diameter||20mm|
|Scorning Saw Motor Power||1.1KW|
|Scorning Blade Speed||8000RPM|
|Max. Cutting Width||1250mm|
|Max. Cutting Length||3100mm|
|Blade Tilting Adjustment||0-45°|
|Main Saw Height Adjustment||Electric|
|Scorning Saw Height Adjustment||Manual|
|Dust Guard Outlet Diameter||80mm|
|Dust System Outlet Diameter||100mm|

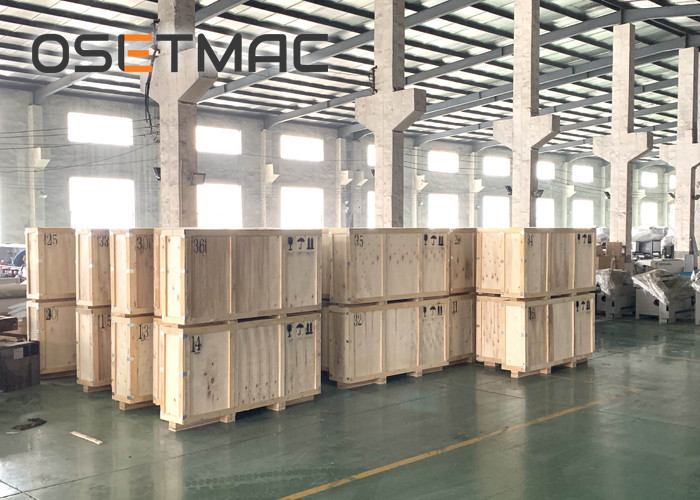

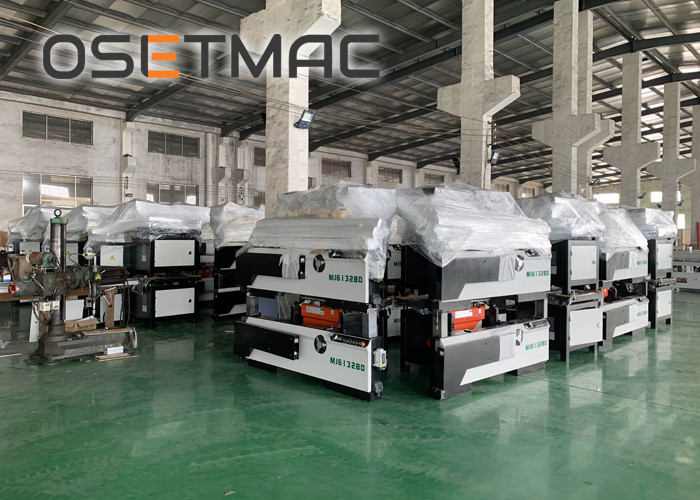

Wood Packing Dimensions
Main Crate and Sliding table
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
