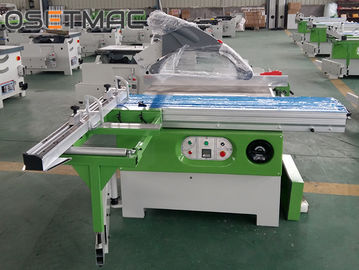

High Precision Woodwork Sliding Table Saw Furniture Making Machine MJ6116TY
Contact Person : Lisa Mou
Phone Number : 86-18765232007
WhatsApp : +8618765232007
|Minimum Order Quantity :||1||Price :||Negotiable|
|Packaging Details :||Seaworthy wooden case||Delivery Time :||15 days|
|Payment Terms :||T/T||Supply Ability :||3000 sets per year|
|Place of Origin:||Qingdao, China||Brand Name:||OSETMAC|
|Type:||Sliding Table Saw||Application:||Panels Wood Cutting Machine|
|Tilting Saw Blade:||90°/0~45°||Gross Cut Capacity:||3200mm|
|Product Name:||Woodworking Sliding Table Panel Saw Wood Cutting Machine|

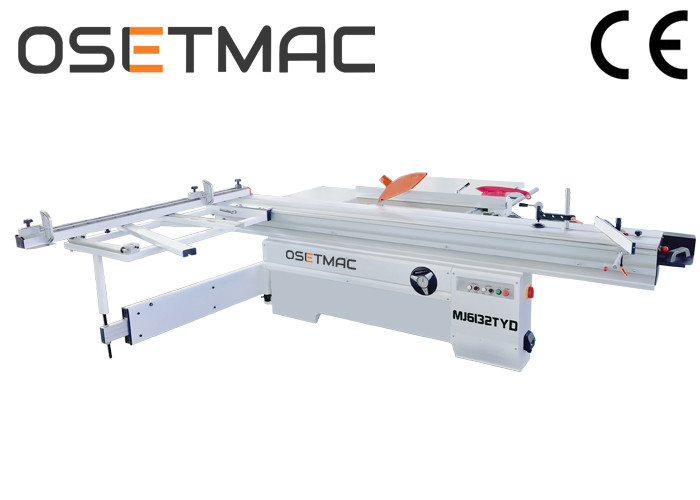

Woodworking Machine Sliding Panel Saw MJ6132TYD for Plywood and Panel Cutting
This machine uses linear guideway to lift the saw blade which is more smooth and more
durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compressive strength and the high precision of the inter-machine, which
can also reduce the shock of the machine.
Main Saw and Scorning Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
All bearings in this machine are all imported SKF brand, which has lower sliding resistance
and power consumption comparing with ordinary bearings.

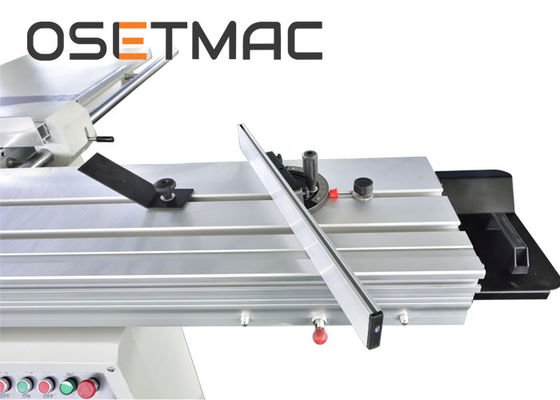

Sliding Table Structure and Feature
Our table is made of fully-extruded, anodized aluminum that will stay square and true over
many years of use. The guideway of movable table is steel bar structure. After quenching
and chromizing, our table is more smooth and less resistance. The comb lock on the table
makes it convenient to stop anywhere.

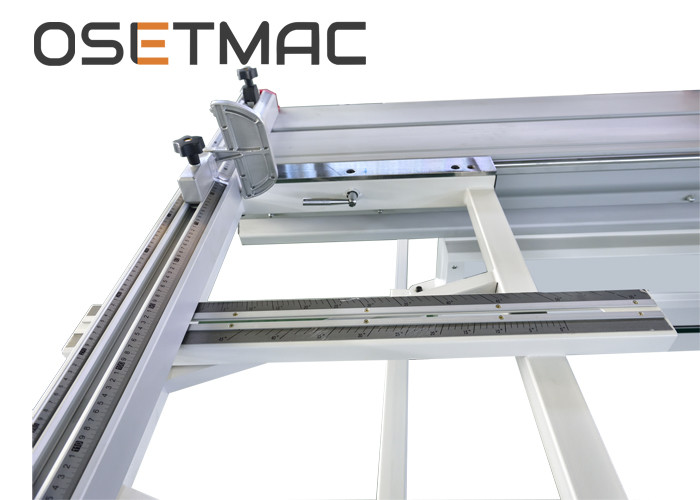

Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of
sliding table when the machine has heavy loading.
Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise.
It is also very easily to adjust.
Orange Dust Hood and Riving Knife
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the
functions of warning, protection and dust absorption.
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
|Sliding Table Dimension||3200*375mm|
|Cast Iron Table Dimension||980*560*70mm|
|Length Extension Table||760*630*50mm|
|Width Cutting Extension Table||575*550*50mm|
|Main Saw Diameter||300mm|
|Main Saw Blade Diameter Maximum||300mm|
|Main Saw Bore Diameter||30mm|
|Max. Cutting Height With Bade at 90||80/100mm(φ300/350)|
|Max. Cutting Height With Bade at 45||55mm50/70mm(φ300/350)|
|Main Motor Power||4KW(5.5KW)|
|Main Blade Speed||4000/6000RPM|
|Scoring Saw Blade Diameter||120mm|
|Scoring Saw Bore Diameter||20mm|
|Scoring Saw Motor Power||0.75KW(1.1KW)|
|Scoring Blade Speed||8000RPM|
|Max. Cutting Width||1250mm|
|Max. Cutting Length||3200mm|
|Blade Tilting Adjustment||0-45°|
|Main Saw Height Adjustment||Manual|
|Scoring Saw Height Adjustment||Manual|

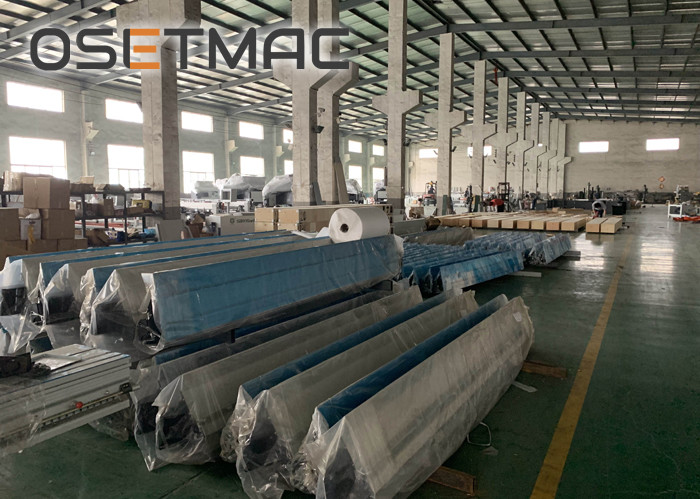

Wood Packing Dimensions
Main Crate and Sliding table
