Industrial Woodworking Sliding Table Saw Machine For Cutting Wood MJ6132AD
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions(l*w*h) | 3200*1100*1200mm | Name | MJ6132AD Sliding Table Panel Saw Machine For Wood Working |
|---|---|---|---|
| Gross Cut Capacity | 3200mm | Wrranty | 1 Year |
| After-sales Service Provided | Online Support ,video Techical Support ,Field Maintenance And Repair Service | Voltage | 220v/380v/415v/440v Or As Request |
| High Light | sliding panel saw machine,sliding table circular saw machine |
||
Product Description

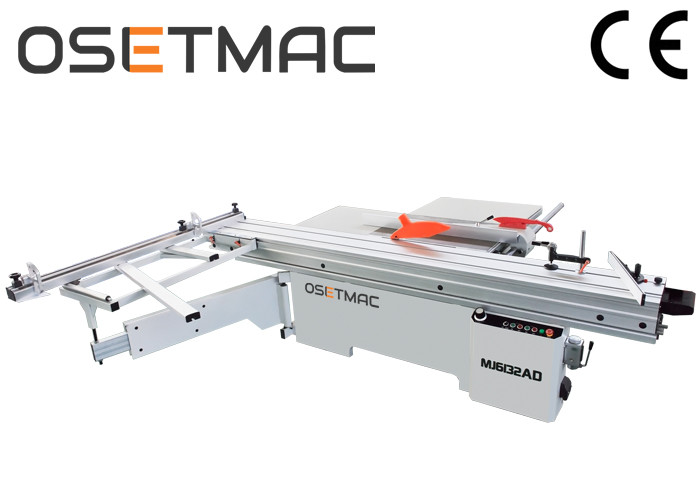

Industrial High Precision Woodworking machine MJ6132AD Sliding Panel/table Saw for cutting wood
Details Show

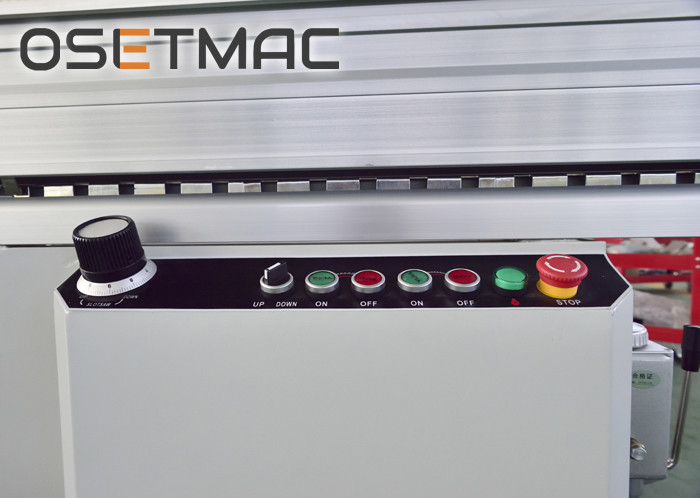

1.Electrical lifting of main saw blade, and the control board is easy to operate
2.Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass
plate and solid wood and other wood structure similar to the hardness of the plate.
3. Henghong electric motor with Aluminum shell with top qualtiy .
-
This machine uses linear guideway to lift the saw blade which is more smooth and more
durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compressive strength and the high precision of the inter-machine, which
can also reduce the shock of the machine
-
-
4.HAORUN spindle of blade .
-
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
-
-
-
5.All bearings in this machine is SKF Bearings.
-
-
-

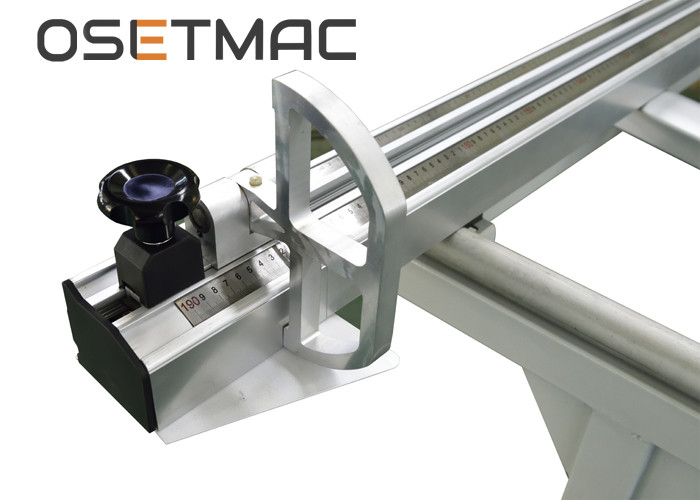

6.1.9m Large European guiding ruler
-
-
7. European dust collector can be connected with this machine.
-
-
Main Technical patameter
-
Sliding Table Dimension 3200*380mm Cast Iron Table Dimension 910*620*80mm Length Extension Table 905*680*70mm Width Cutting Extension Table 640*680*70mm Main Saw Diameter 300mm Main Saw Blade Diameter Maximum 350mm Main Saw Bore Diameter 30mm Max. Cutting Height With Bade at 90 80/100mm(φ300/350) Max. Cutting Height With Bade at 45 50/70mm(φ300/350) Main Motor Power 5.5KW Main Blade Speed 4000/6000RPM Scorning Saw Blade Diameter 120mm Scorning Saw Bore Diameter 20mm Scorning Saw Motor Power 1.1KW Scorning Blade Speed 8000RPM Max. Cutting Width 1250mm Max. Cutting Length 3100mm Blade Tilting Adjustment 90° Main Saw Height Adjustment Electric Scorning Saw Height Adjustment Manual Dust Guard Outlet Diameter 80mm Dust System Outlet Diameter 100mm Wood Packing Dimensions
Main Crate and Sliding table
2250*1150*1100mm
3400*450*290mm
Installation Dimensions 3250*3450*900mm Gross Weight 790KG -
Certificate :
-
-

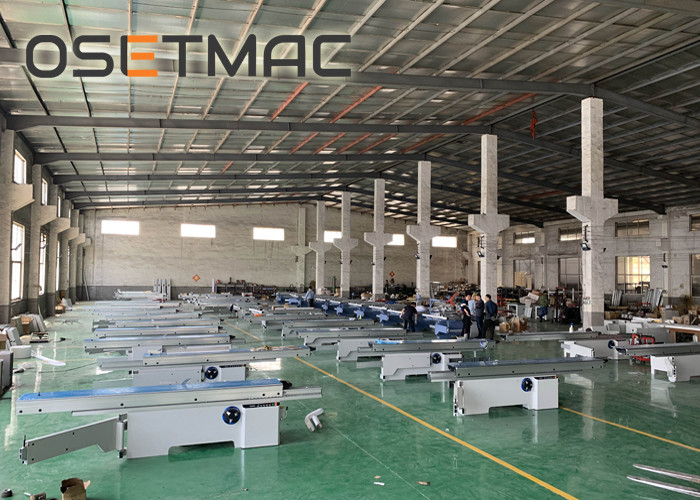

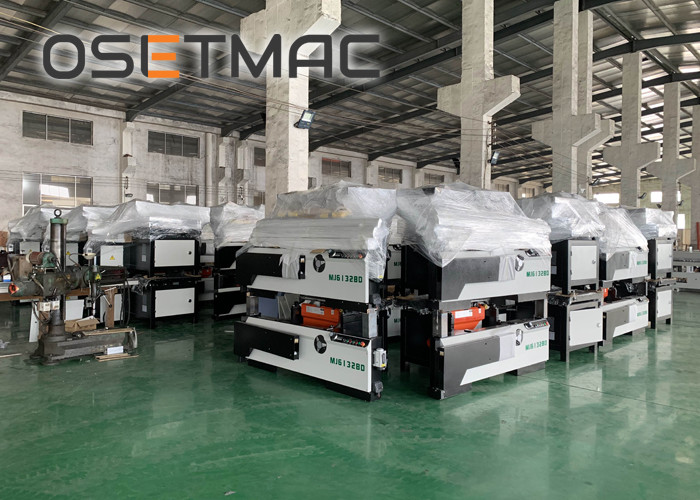

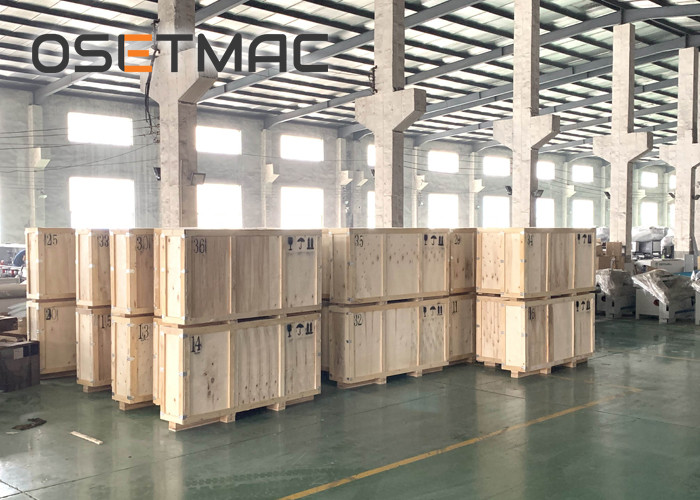

Warehouse and Loading Container :
-
-
-
-
-
