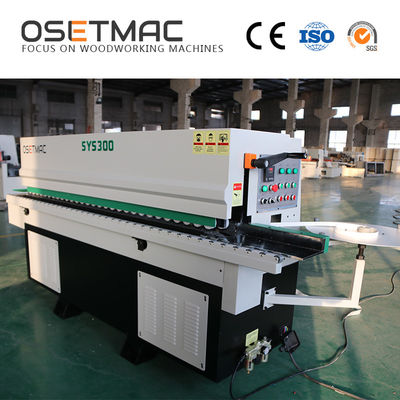

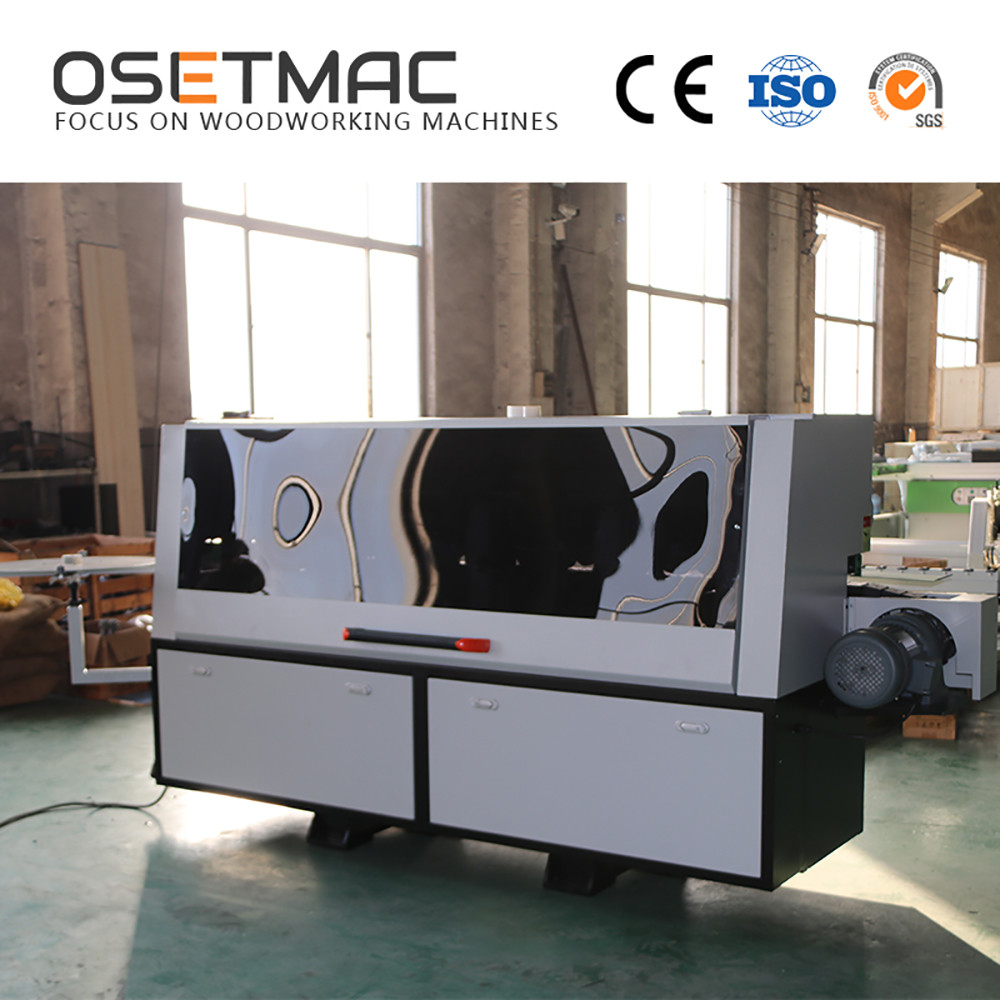

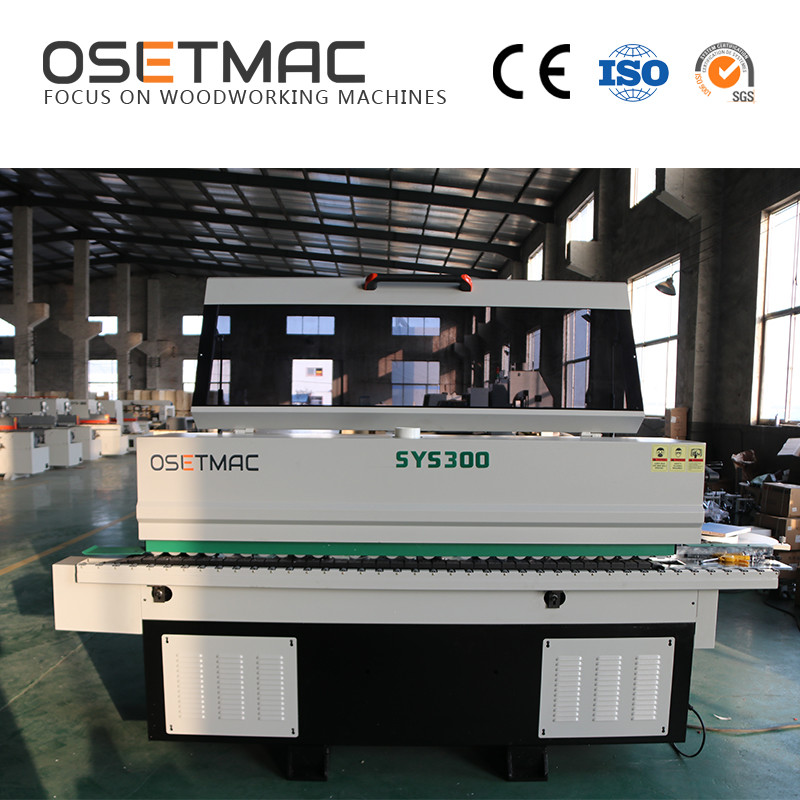

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300

  • 6.7KW Woodworking Edge Banding Machine PLC Control SYS-300
  • 6.7KW Woodworking Edge Banding Machine PLC Control SYS-300
  • 6.7KW Woodworking Edge Banding Machine PLC Control SYS-300
  • 6.7KW Woodworking Edge Banding Machine PLC Control SYS-300
  • 6.7KW Woodworking Edge Banding Machine PLC Control SYS-300
Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-300
Minimum Order Quantity Negotiable
Price Negotiate
Packaging Details wooden case or as request
Delivery Time 5-8 work days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000set per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

edge banding trimming machine

,

woodworking edge bander
Leave a Message
Product Description

Automatic Edge Banding Machine SYS300



MODEL: SYS-300
Panel Thickness: 10-60mm
Edge Band Thickness: 0.4-3mm
Panel Width: ≥60mm
Panel Length: ≥150mm
Feeding Speed: 15m/min
Working Pressure: 0.6Mpa
Voltage: 380V/50HZ/3PH
Gluing Motor: 0.37KW 50HZ 1400RPM
End Cutting Motor: 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor: 0.75KW * 2 200HZ 12000RPM
Buffing Motor: 0.37KW * 2 50HZ 1400RPM
Conveyor Motor: 1.5KW Glue Pot Heating Power:1.5KW
Assistant Heating Power: 0.3KW Lighting Power: 0.05KW
Total Power: 6.7KW
Dimension: 3800x900x1680mm




6.7KW Woodworking Edge Banding Machine PLC Control SYS-300 0



6.7KW Woodworking Edge Banding Machine PLC Control SYS-300 1

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300 2

Description:

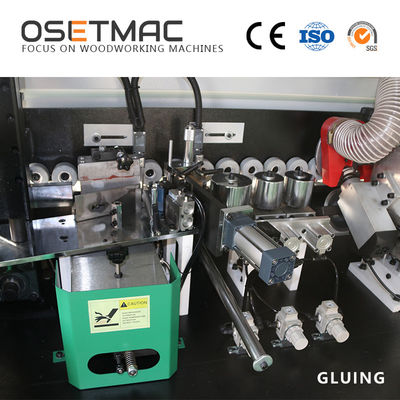

*5 functions:Gluing--end cutting--Fine--Trimming--Scraping-Buffing

*PLC control with touch screen (141*195mm)

*Working Voltage:380v/50HZ/3PH

*Taiwan"DELTA"brand inverter,PLC Touch Screen

*The entire machine is painted in a white color

*In the machine is mounted lights

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300 3

6.7KW Woodworking Edge Banding Machine PLC Control SYS-300 4
