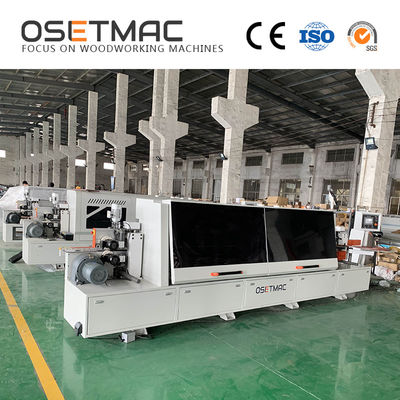

DELTA Inverter 380v/220v Woodworking Edge Banding Machine

Place of Origin CHINA
Brand Name OSETMAC
Certification CE
Model Number SYS-468
Minimum Order Quantity Negotiable
Price NEGOTIATE
Packaging Details wooden carton package
Delivery Time 5-8work days
Payment Terms Western Union, Western Union
Supply Ability 5000set/ year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 380v/220v Or Customized Condition New
Weight 1820kg Warranty 12month
After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service,Video Technical Support,Online Support,Overseas Third-party Support Available
High Light

woodworking edge bander

,

edge banding trimming machine

Leave a Message
Product Description

Woodworking Edge Banding Machine



Automatic Woodworking Edge Banding Machine SYS-468

Advantage:

* 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
* Working Voltage: 380V/50HZ /3PH
* DELTA inverter or MCGS inverter for your choice.
* PLC Touch Screen
* CC highspeed motor.
* The conveyor speed can be adjusted from 13-25m/min
*Honeywell travel switch, contactor, air switch.
*Air Tac solenoid valve, air cylinder,oil-water seperator.
* With automatic oil feeder.
*14mm high strenth steel sheet for the whole machine.
* In the machine is mounted lights.
* Support customization for the machine appearance.

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 0

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 1

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 2

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 3

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 4

DELTA Inverter 380v/220v Woodworking Edge Banding Machine 5

Parameters
Model SYS-468
Panel Thickness 10-60mm
Edge Band Thickness 0.3-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 200HZ 12000RPM
Corner Trimming Motor 0.37KW * 2 200HZ 12000RPM
0.75KW * 2 200HZ 12000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Glue Pot Heating Power 2.4KW
Lighting Power 0.05KW
Lifting Motor 0.25KW
Total Power 12.4KW
Dimension 5670*800*1620mm
Wooden Crate Package

5770*900*1720mm



DELTA Inverter 380v/220v Woodworking Edge Banding Machine 6
