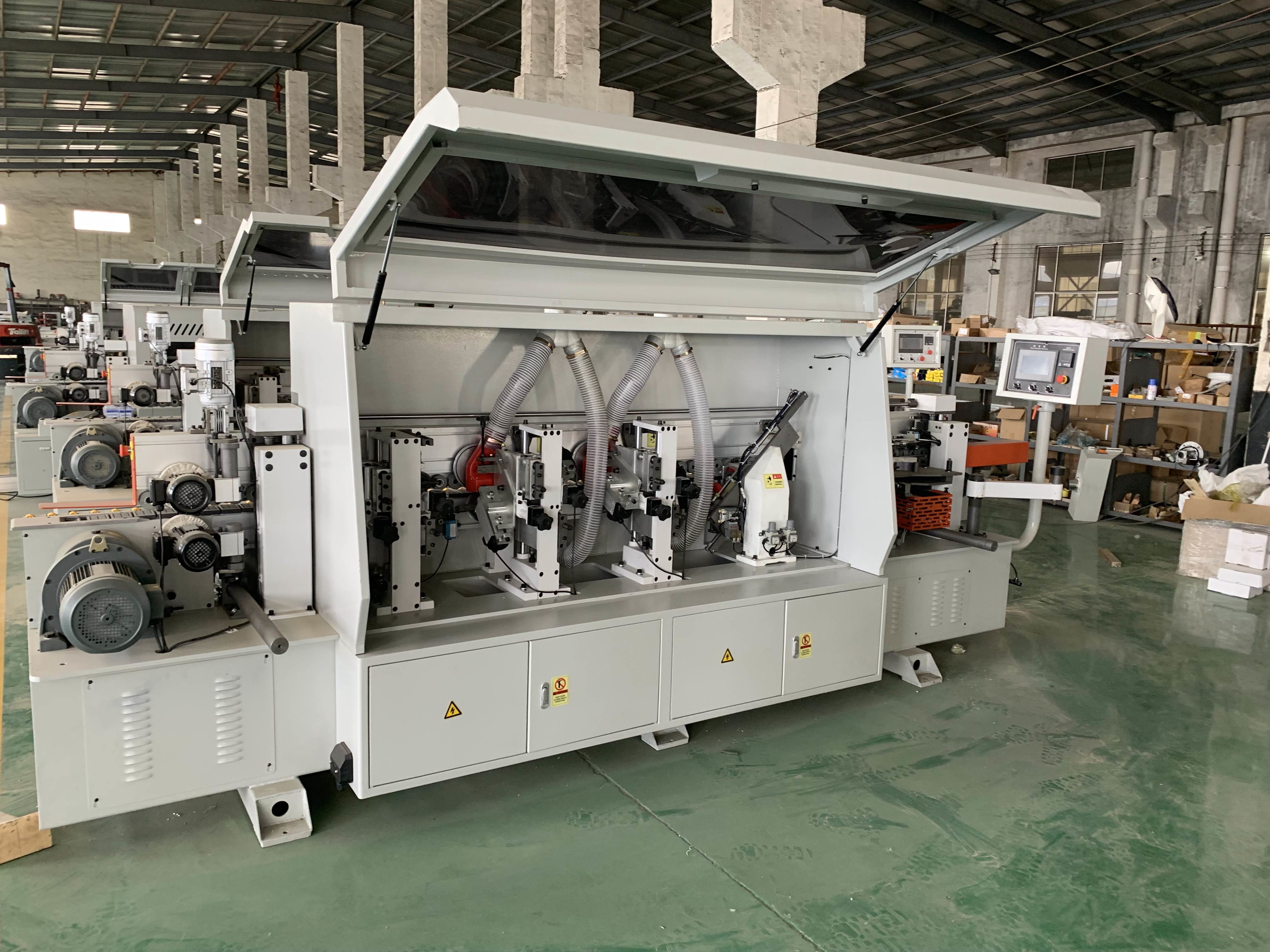

Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control

Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control
Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control

Large Image :  Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control

Product Details:
Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-320
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year

Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control

Description
Voltage: 220V/380V Type: Edge Banding Machine
Panel Thickness: 10-60mm Name: Edge Trimming Saw Machine
Feeding Speed: 12-24m/min
High Light:

60mm Plywood Edge Banding Machine

,

10mm Plywood Edge Banding Machine

,

PLC Control Plywood Edge Banding Machine

Thickness 10-60mm Plywood Edge Banding Machine PLC Touch Screen Control



Description:

  1. This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
  2. High precision and easy-to-use features makes your work more efficient.
  3. This is an economic model with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
  4. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.



Applications:



This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.




Specifications:



MODEL SYS-320
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.37KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Fine Trimming Motor 0.75KW * 2 300HZ 18000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 1.5KW
Glue Pot Heating Power 1.5KW
Assistant Heating Power 0.3KW
Lighting Power 0.05KW
Total Power 6.7KW
Dimension 3120x670x1270mm
Net Weight 700KGS





Competitive Advantage:

  1. This new model edge banding machine is small-sized with automatic function, which can load 10 sets in one 20’ GP container and 20 sets in one 40’ GP container.
  2. We can customize the outlook and functions of the machine according to your requirement.
  3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
