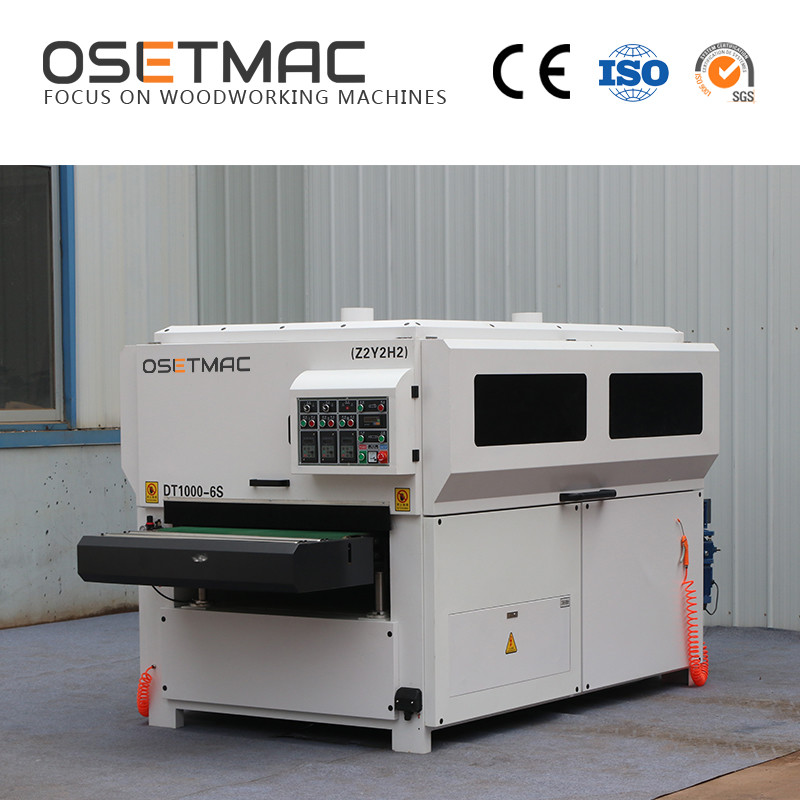

1000mm Woodworking Sanding Machines For Polishing Wood

1000mm Woodworking Sanding Machines For Polishing Wood
1000mm Woodworking Sanding Machines For Polishing Wood
1000mm Woodworking Sanding Machines For Polishing Wood 1000mm Woodworking Sanding Machines For Polishing Wood

Large Image :  1000mm Woodworking Sanding Machines For Polishing Wood

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE ISO
Model Number: DT1000-8S(Z2Y2Y2H2)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box or as request
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

1000mm Woodworking Sanding Machines For Polishing Wood

Description
Name: Woodworking Sanding Machines Application: Polishing Wood
Working Length: ≥350mm Power: 13.55kw
Max Working Width: 1000mm Working Thickness: 10-160mm
Automatic Grade: Automatic
High Light:

1000mm Woodworking Sanding Machines

,

Polishing Wood Woodworking Sanding Machines

,

1000mm belt sanding machine

1000mm Woodworking Sanding Machines For Polishing Wood



Description:

It is mainly aimed at the embryo polishing of wood products. It is suitable for all kinds of solid wood, composite board and density board and etc.

Inner Structure Sketch:

1000mm Woodworking Sanding Machines For Polishing Wood 0

1000mm Woodworking Sanding Machines For Polishing Wood 1

1000mm Woodworking Sanding Machines For Polishing Wood 2



1000mm Woodworking Sanding Machines For Polishing Wood 3



Advantage:

----A variety of arrangements of the roller , it can be customized according to the different polishing requirements .OEM&ODM are available .

----Imported high-quality sandpaper,Japan RIKEN brand sandpaper and Germany HERMES sandpaper are available.

----Fuselage platform through gantry milling processing, improve the service life of linear guide, workpiece polishing precision is higher.

----The machine is equipped with a frequency converter device, which can adjust different speed according to the hardness of polishing materials.

----The machine is equipped with pure copper core national standard motor and imported electrical parts to ensure the high quality and high efficiency of the machine.

----High work efficiency , every minute to grind a door , save time and labor .

Main Technical Parameter :

Specification Z2Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 13.55kw
Packing Dimension 4100*1730*1850mm
Net Weight 2800KG
Wooden Case Dimension 4700*1730*1850mm

























1000mm Woodworking Sanding Machines For Polishing Wood 4

Loading Container:

1000mm Woodworking Sanding Machines For Polishing Wood 5

1000mm Woodworking Sanding Machines For Polishing Wood 61000mm Woodworking Sanding Machines For Polishing Wood 7

Other Similar Models:



DT1000-6S(Z2Y2H2)

1000mm Woodworking Sanding Machines For Polishing Wood 8



Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Total Power 11.65kw
Packing Dimension 3100*1760*1890mm
Net Weight 1500kg
Wooden Case Demension 3180*1830*2150mm
Wooden case Weight 180kg

























DT1000-6S(Y2H2H2)

1000mm Woodworking Sanding Machines For Polishing Wood 9



Main Technical Parameter :

Specification Y2H2H2
Max Working Width 1000mm
 Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed  5-20m/min
Wooden Case Weight  170kg
Total Power 12.14kw
Packing Dimension  2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension                     2890*1830*2150mm































DT1000-6S(Y2Y2H2)

1000mm Woodworking Sanding Machines For Polishing Wood 10

Main Technical Parameter :

Specification Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 170kg
Total Power 9.6kw
Packing Dimension 2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension 2890*1830*2150mm



























DT1000-6SY:

1000mm Woodworking Sanding Machines For Polishing Wood 11





Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm /1300mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Total Power 11.65kw
Packing Dimension 3200*2100*1750mm
Net Weight 2400KG
Wooden Case Dimension                 3200*2100*1750mm

























DT1000-8S(Z2Y2H2H2):

1000mm Woodworking Sanding Machines For Polishing Wood 12

Main Technical Parameter:

Specification Z2Y2H2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 16.45kw
Packing Dimension 4130*1800*2150mm
Net Weight 2800KG
Wooden Case Dimension 4550*1730*1850mm
