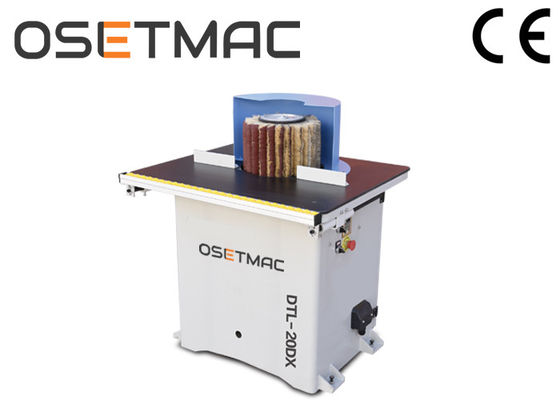

Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX

Place of Origin CHINA
Brand Name OSETMAC
Certification CE ISO
Model Number DTL-20DX
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details without package or wooden box or as request
Delivery Time 5-15 workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 20000sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Brush Sanding Machine Type Manual
Roller Height 200mm After Sale Service Online Installation Support , Technical Support
Warranty 1 Year Function Polish The Wood Or Plywood And PVC Panels
High Light

manual wood sanding machine

,

manual wood sanding equipment

Leave a Message
Product Description

Electric Rotary Brush Sanding Machine Mini for Side Sanding of Cabinet, Door, Plywood and Furniture



QUICK DETAILS:

  • Roller is φ300mm and 200mm Height
  • Rotate Speed is adjustable
  • Delta Frequency Inverter
  • Shanghai Libo Motor
  • Japanese RIKEN Sandpaper
  • Different Abrasive Materials for your choice
  • Support CustomizationManual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 0

Description:



*The speed of the roller is adjustable with frequency inverter, so it can use different speed according to the

hardness of the wood materials.

*The roller can lift with electric motor control which make sure the perfect sanding effect.

*Imported Riken sandpaper is good quality and more durable.

*It is more beautiful and will not rust with high temperature painting.

*The fluency strips will make it easy to move the workpiece on the worktable.

*This machine can be used in different boards with different sculpture or curve. Wood materials with primer

or without primer both can be sanded on this machine.

Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 1

Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 2

Applications:

This machine can be used in different wood materials such as solid wood, plywood, MDF, veneer board, etc.

It is mainly for the sanding and polishing of the special-shaped cabinet, door, photo frame, stair post, small

wooden artwork and any other special curved workpiece that can be hold in hand.

Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 3

Main Techincal Parameter :

Model DTL-20DX
Roller Diameter 300mm
Roller Height 200mm
Lifting Motor 0.37KW RV40 1:60
Main Motor 0.75KW
Dimension 870*750*1060mm
Wooden Case Packing 950*840*1170mm
Net Weight 140KG
Gross Weight 180KG
Quantity Per 20’Container 36



Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 4

Competitive Advantage:



  1. We can change the outlook of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
  3. This serial sanding machine support customization.Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 5Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 6

Other brush sanding machine /polishing machine :



Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 7Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 8

Main Techincal Parameter :

Model DTL-20D
Roller Diameter 300mm
Roller Height 200mm
Lifting Motor 0.37KW RV40 1:60
Main Motor 0.75KW
Dimension 870*750*1060mm
Wooden Case Packing 950*840*1170mm
Net Weight 140KG
Gross Weight(Wooden Box package) 180KG
Quantity Per 20’Container 36sets


Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 9

Main Technical Parameter:

Model DTW-50D
Roller Diameter 300mm
Roller Width 400mm
Rotary Motor 0.37KW
Main Motor 1.1KW
Dimension 2400*840*1180mm
Wooden Case Packing 2420*900*1270mm
Net Weight 180KG
Gross Weight 245KG

Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 10

Main Technical Parameter :



Model DTW-60A
Roller Diameter 300mm
Roller Length 300/300mm
Motor Power 1.5KW
Dimension 1240*610*880mm
Wooden Case Packing 1280*790*1010mm
Net Weight 120KG
Gross Weight 182KG
Quantity Per 20’/40’Container 28





Manual Brush Sanding Machine For Side Sanding Cabinet Door And Plywood DTL-20DX 11

Main Technical Parameter:

Model DTW-120A
Roller Diameter 300mm
Roller Length 300/600/300mm
Motor Power 1.5KW
Dimension 1770*770*900mm
Wooden Case Packing 1700*880*1010mm
Net Weight 160KG
Gross Weight 210KG
Quantity Per 20’Container 20
