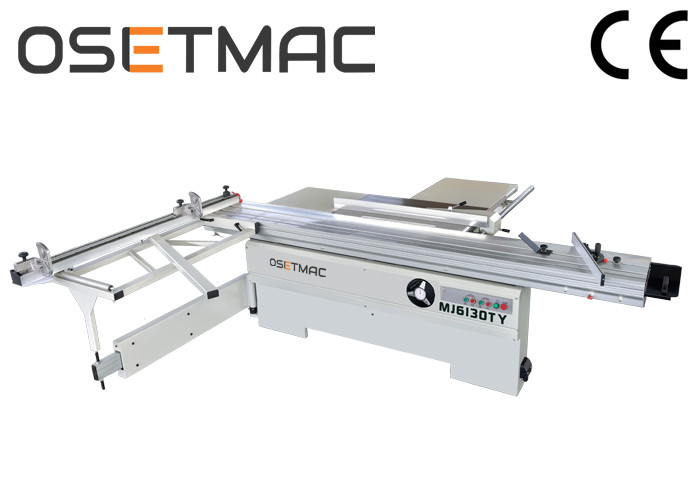

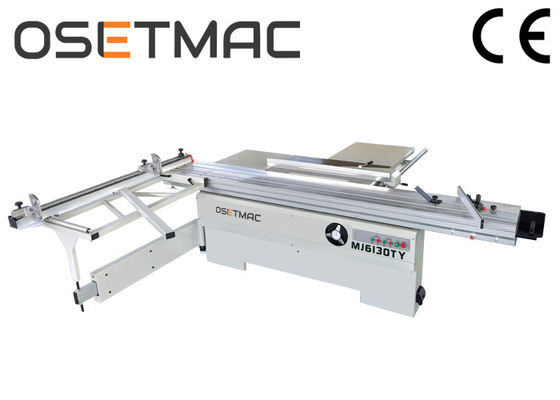

Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting
Product Details
| Warranty | 12 Months | Voltage | 220v/380v/415v/440v |
|---|---|---|---|
| Usage | Woodworking,Wood Cutting | Name | Precision Panel Saw,sliding Table Saw |
| Product Name | Sliding Woodworking Table Panel Saw Wood Circular Saw Cutting Machine | Main Saw Motor | 4/5.5KW |
| Scoring Saw Motor | 0.75/1.1KW | ||
| Highlight | sliding panel saw machine,sliding table circular saw machine |
||
Product Description
Woodworking Machine Sliding Panel Saw MJ6130TY for Plywood and Panel Cutting
Feature:
1. It is suitable for all kinds of density boards, shaving boards, wood-based panels, ABS
panels, PVC panels, organic glass plates and solid wood and others with wood structure
and similar hardness.
2 .Movable table guide track is plating chromium steel balls structure, exact and durable.
3 .Made of high-strengh extruded aluminum alloy,movable table is high in strength and won't bend.
4. With oxidation treatment, movable table surface is beautiful and hardwearing.
Applications:
This machine is suitable for processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Specifications:
| Sliding Table Dimension | 3000*375mm |
| Cast Iron Table Dimension | 980*560*70mm |
| Length Extension Table | 760*630*50mm |
| Width Cutting Extension Table | 575*550*50mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 315mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) |
| Max. Cutting Height With Bade at 45 | 55mm 50/70mm(φ300/350) |
| Main Motor Power | 4KW(5.5KW) |
| Main Blade Speed | 4000/6000RPM |
| Scoring Saw Blade Diameter | 120mm |
| Scoring Saw Bore Diameter | 20mm |
| Scoring Saw Motor Power | 0.75KW(1.1KW) |
| Scoring Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3000mm |
| Blade Tilting Adjustment | 0-45° |
| Main Saw Height Adjustment | Manual |
| Scoring Saw Height Adjustment | Manual |
|
Wood Packing Dimensions Main Crate and Sliding table |
2100*1100*1100mm 3400*420*220mm |
| Installation Dimensions | 3250*3150*900mm |
| Net Weight | 680KG |
Competitive Advantage:
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4.2 m.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
