Accuracy Woodworking Table Saw Customized Voltage and 310*500mm Rear Extension Table
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Panel Saw |
|---|---|---|---|
| Use | Woodworking, Wood Cutting | Style | VERTICAL |
| Voltage | Customized | Dimension(L*W*H) | 3250*3450*900mm |
| Warranty | 1 Year | Application | Furniture Factory, Wood Board Factory |
| Weight (KG) | 250 KG | Power (kW) | 2.2KW |
| Key Selling Points | High-accuracy | Max.Cutting Height At 90°(mm) | 100mm |
| Max.Cutting Height At 45°(mm) | 70mm | Max. Length Of Workpiece (mm) | 1500mm |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Woodworking | Marketing Type | New Product 2023 |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Support Table Dimension | 385mm*800 | Extension Table | 440*800mm |
| Rear Extension Table | 310*500mm | Crosscut Table Size | 680*580mm |
| CrossCut Fence | 1200-2200mm | Main Blade Diameter | 315mm |
| Main Saw Bore Diameter | 30mm | Main Saw Blade Speed | 4000RPM |
| Scoring Saw Blade Diameter | 90mm | Scorning Saw Bore Diameter | 20mm |
Product Description

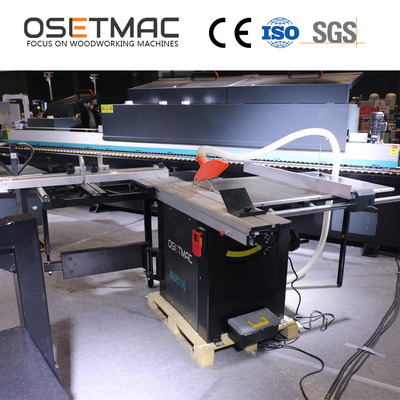

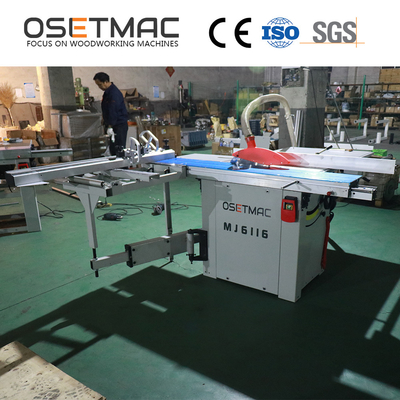

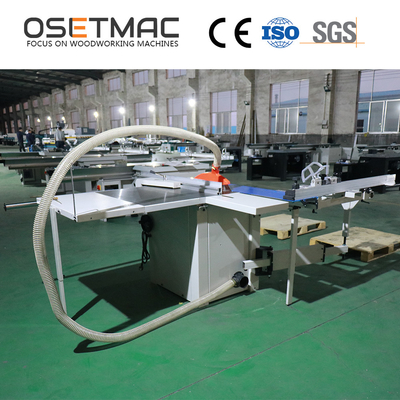

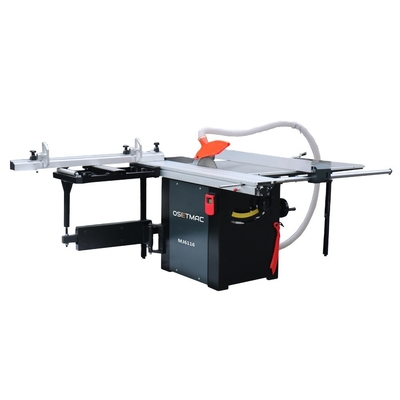

New Industrial Table Saw for Woodworking High-Accuracy Panel Saw with Core Motor for Wood Cutting
Product Description

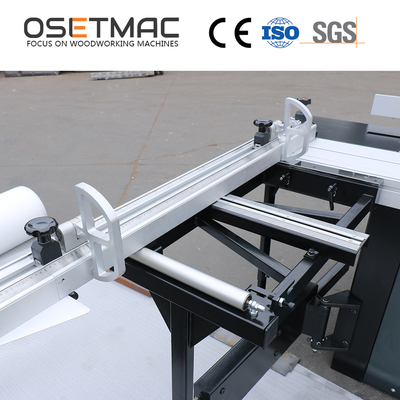

* Fully-extruded, anodized aluminum sliding table.
* The guideway of movable table is steel bar structure with quenching and chromizing.
* Cast-iron Main Table and Broaden Extension Table.
* With main saw blade and scoring saw blade.
* All bearings in our machine is SKF bearings.
* Covered by a 1-year parts warranty.
* With orange dust hood and riving knife
| Parameters | |||
| Sliding Table Dimension | 1600*270mm | ||
| Major Table Size | 385*800mm | ||
| Extension Table (Cast Iron) | 440*800mm | ||
| Extension Table (Steel Plate) | 440*800mm | ||
| Rear Extension Table | 310*500mm | ||

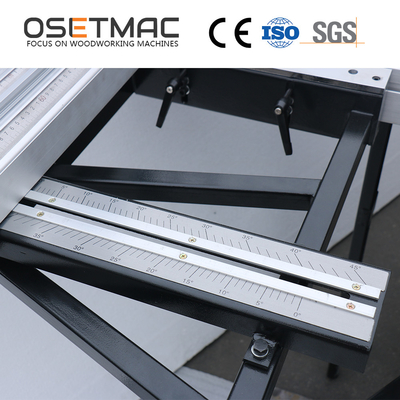

| Crosscut Table Size | 680*580mm | ||
| CrossCut Fence | 1200-2200mm | ||
| Main Blade Diameter | 315mm | ||
| Main Saw Bore Diameter | 30mm | ||
| Main Saw Blade Speed | 4000RPM | ||
| Scoring Saw Blade Diameter | 90mm | ||
| Scorning Saw Bore Diameter | 20mm | ||
| Scorning Blade Speed | 5800RPM | ||
| Max. Cutting Height With Bade at 90° | 100mm(315) | ||
| Max. Cutting Height With Bade at 45° | 70mm(315) | ||
| Max. Cutting Width | 1220mm | ||
| Max. Cutting Length | 1500mm | ||
| Noise Level | 75dB(A) | ||
| Motor Power | 220V/50HZ/ 1PH/2.2KW | ||
| Dimension of wood packing carton | 940*760*1040mm(Main Crate) | ||
| 1660*250*320mm(Sliding Table) | |||
| Weight (N.W./ G.W.) | 250/290KG | ||
