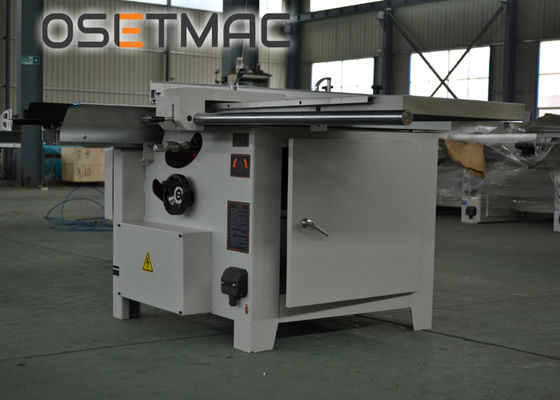

Plywood Cutting Sliding Panel Saw Machine Use In Woodworking Industry
Product Details
| Dimension(l*w*h) | 1800*1050*900 | Type | Sliding Table Saw |
|---|---|---|---|
| Application | Panels Wood Cutting Machine | Tilting Saw Blade | 90°/0~45° |
| Gross Cut Capacity | 1600mm | Product Name | Sliding Woodworking Table Saw， Wood Panel Saw |
| Highlight | sliding table panel saw,sliding panel saw machine |
||
Product Description

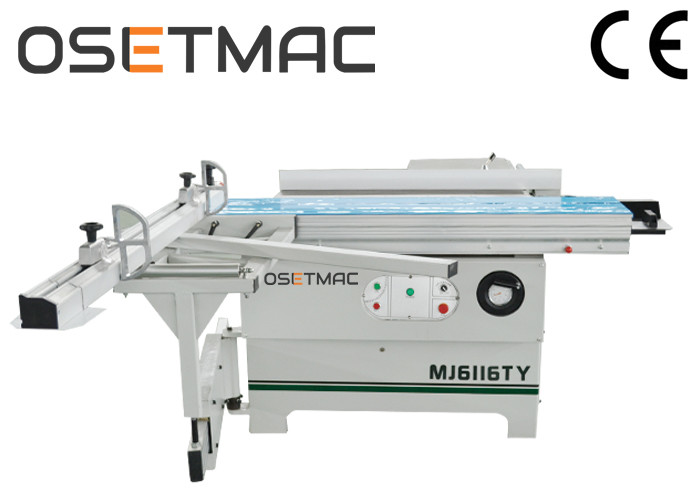

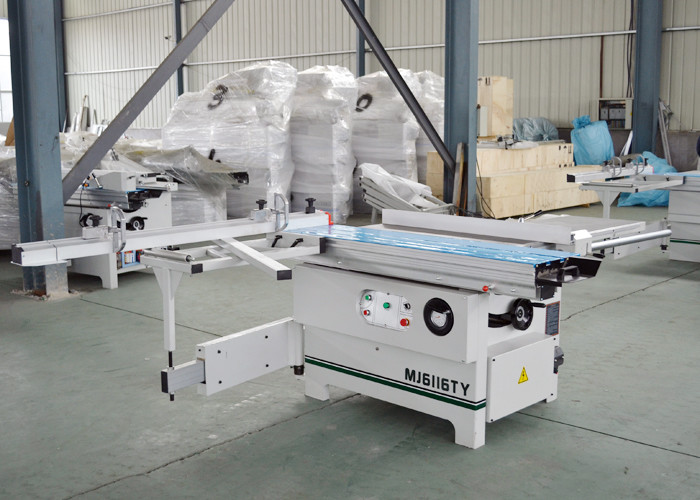

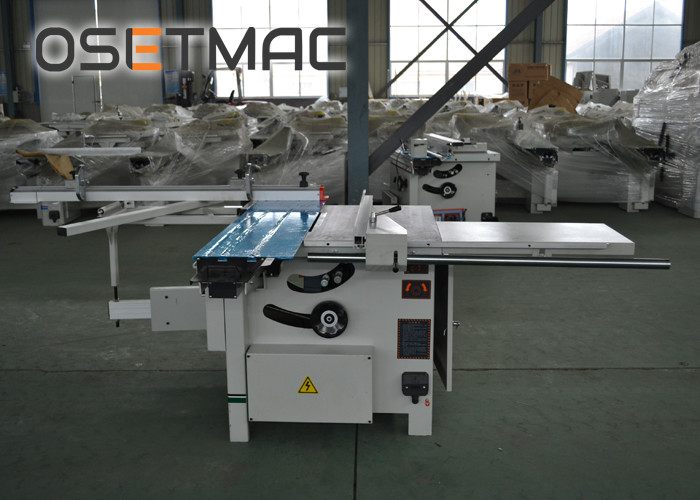

Woodworking Machine Sliding Panel Saw MJ6116TY for Plywood and Panel Cutting
Main Features
Manual lift and tilt function,angle dispaly clearly.
Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass plate and solid wood and other wood structure similar to the hardness of the plate.
With whole spray durable wear-resistant treatment, the machine body will not paint off and the appearance is perfect.
Description:

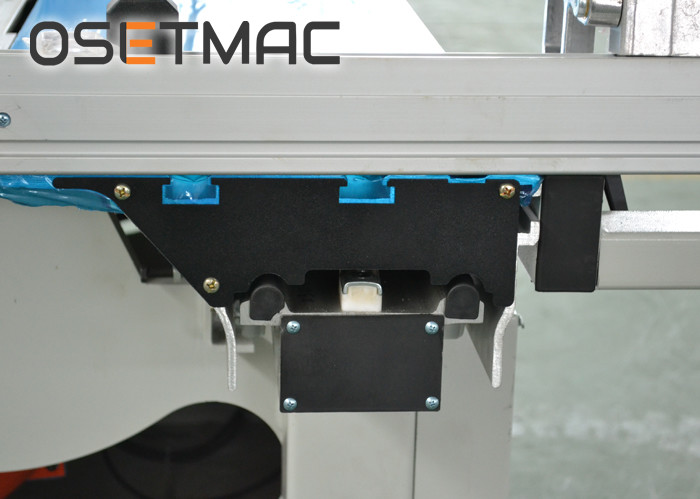

- The lifting of the main saw is manual control with linear guide lifting.
- The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
- Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
- The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
- Covered by a 1-year parts warranty
Applications:
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Specifications:
| Sliding Table Dimension | 3200*375mm |
| Cast Iron Table Dimension | 980*560*70mm |
| Length Extension Table | 760*630*50mm |
| Width Cutting Extension Table | 575*550*50mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 300mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) |
| Max. Cutting Height With Bade at 45 | 55mm50/70mm(φ300/350) |
| Main Motor Power | 4KW(5.5KW) |
| Main Blade Speed | 4000/6000RPM |
| Scoring Saw Blade Diameter | 120mm |
| Scoring Saw Bore Diameter | 20mm |
| Scoring Saw Motor Power | 0.75KW(1.1KW) |
| Scoring Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3200mm |
| Blade Tilting Adjustment | 0-45° |
| Main Saw Height Adjustment | Manual |
| Scoring Saw Height Adjustment | Manual |
|
Wood Packing Dimensions Main Crate and Sliding table |
2100*1100*1100mm 3400*420*220mm |
| Installation Dimensions | 3250*3150*900mm |
| Net Weight | 680KG |
Competitive Advantage:
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4.2 m.

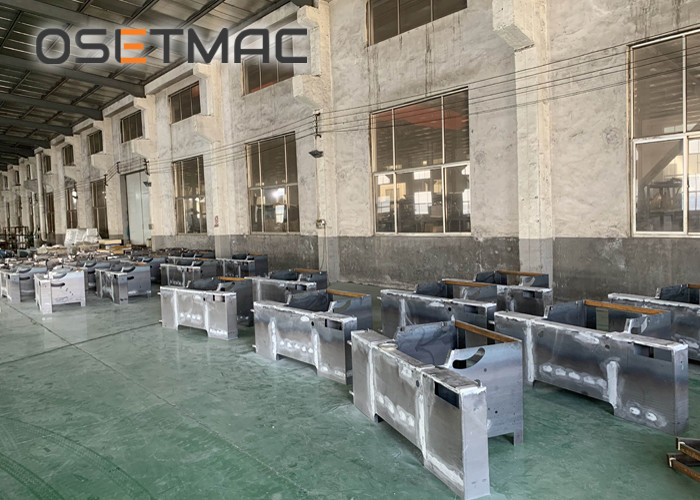

- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
