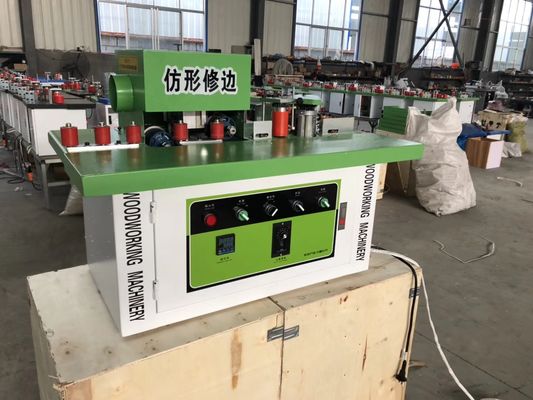

Multifunction Manual Edge Banding Machine Use In Wood Production Line

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Seaworthy wooden case Delivery Time : 15 days
Payment Terms : T/T, L/C Supply Ability : 3000 sets per year
Place of Origin: Qingdao, China Brand Name: OSETMAC
Certification: CE,ISO Model Number: TS-505

Detail Information

Name: Edge Banding Machine Certification: CE,ISO
Model: TS-505 Others: Manual Edge Trimming Machine
Glue Capacity: 600ml Heating Time: 5-10min
High Light: <h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>edge banding machine for wood</h2>,<h2 style='display: inline-block;font-weight: bold;font-size: 14px;'>plywood edge banding machine</h2>

Product Description

 TS-505 Manual edge trimming and trimming machine



Product number TS-505 Edge sealing speed 2-6m/min
Rated voltage 220V Edge thickness 10-50mm
rated power 16600W Glue capacity 600ml
Dimensions 900*550*650 heating time 5-10min
Machine net weight 70kg Continuous working time ≦sh





1 .Depending on the edge banding material a minimum inner-radius of 25 mm (1") is possible.

2. Fine adjustable glue applicator.

3. Short warm-up time with quick heating glue pot.

4. The manual edge banding machine adopts the structure of the advanced lower set glue box.

This structure can be used to select the plate and seal with double-sided glue and hand feed.



Features :


1. High compactness and long service life.

2. The operation process is accurate and quick.

3. Large worktable and can be customized. It is made of fine copper can guarantee the edge precision and stability.

4. Two heating pipes are arranged in the glue tank, which can be quickly sol.

5. The humanized control switch makes the equipment more convenient to use.

6. It can be used for convex and concave edges as well as straight edges

7. Processes ABS, PVC and solid wood strip edging

8. Flexibility through the use of glue pellets






1. Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid (or more valuable) material. Can also be used instead of features such as face frames or molding.

2. The edge banding can be PVC,melamine,wood based works and so on. Manual Edge Banding Machine is for gluing edges of PVC, melamine or veneer on straight, round or free shaped panels.Used for furniture processing, cabinet processing, interior decorative plate sealing and other aspects, low price, widely used.
