Electrical Control Wood Pressing Machine Use In Plywood Production Line

China Electrical Control Wood Pressing Machine Use In Plywood Production Line supplier

Large Image :  Electrical Control Wood Pressing Machine Use In Plywood Production Line

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Power: 16.5KW Working Table Size: 2700*1370mm
Boarding Direction: Transverse Cylinder Position: Cylinder-up
Total Pressure: 500T Finished Size: 1220*2440mm

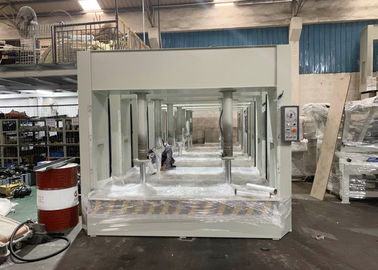

 500T Woodworking Wood Hydraulic Cold Press Machine







Application & features:







1) This machine is mainly used for veneer press of all kinds of plane wood ware and



prepressing and moulding. The press quality is good, speed-fast and high efficient. It



is widely used in furniture industry and other panel production industry.



2) This machine is mainly composed of oil pressure system, electrical control system,



platen balance mechanism , platen and machine body.







500T cold press main (cylinder up) technical parameters for example
1. Total pressure
500T
2. finished size
1220*2440mm
3. diameter of cylinders
360mm
4. quantity of cylinders
2
5. Cylinder position
Cylinder-up
6.Board feeding direction
Transverse
7. Working stroke
1000mm
8. Power
16.5KW
9. Upper and bottom beam
1600mm
11.Working table dimension
2700*1370mm
12 up, bottom, middle beam
900, 900, 400mm
13.total weight
Approx.13T
14.Withstand voltage
<=25Mpa
15.Control mode
Full automatic control manual control
16.the unit pressure of plate embryo
13.5kgf/cm2
17 Lift cylinder
diameter100mm *1 piece
18 Power
7.5kw
19 Allowed pressure
<=25Mpa
20 Integrated block charging valve
60
21 overall dimension
2600*1370*3700mm
22 Column width
400mm





Hydraulic cold press structure



1, Adopting national standard H steel and channel steel to ensure that the rack is sturdy and durable

2, Precision platen working table,It can make the pressure distribution of the whole table evenly and the flatness of the pressure maintaining surface for a long time.

3, Timing control,Set the appropriate time, when the set time is reached, the pressure plate will automatically release and beep to remind the operator.

4, The circuit is set with overload protection, short circuit protection, loss of voltage protection and undervoltage protection.
