Precision Panel Saw with Sliding Table

Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE
Model Number MJ6138TYD
Minimum Order Quantity 1
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Style Horizontal Use Woodworking
Product Name Sliding Table Saw Machine Gross Cut Capacity 3800mm
Saw Blade Diameter 250-315mm Main Saw Motor 4.0/5.5KW
Scoring Saw Motor 0.75/1.1KW
High Light

sliding table panel saw

,

sliding panel saw machine

Leave a Message
Product Description

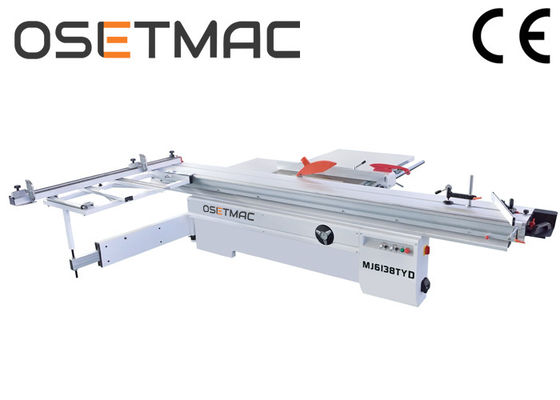

Woodworking Machine Sliding Panel Saw MJ6138TY for Plywood and Panel Cutting

Panel saw

Sliding Table Saw



Quick Detail:

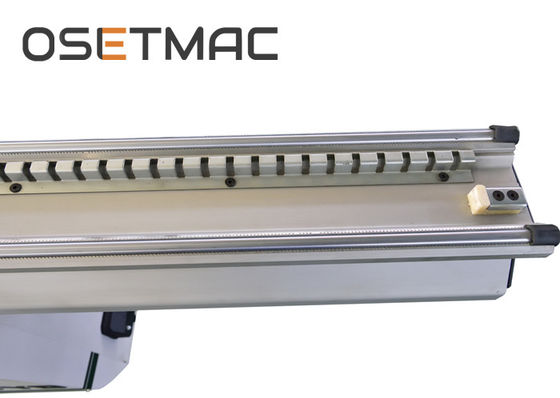

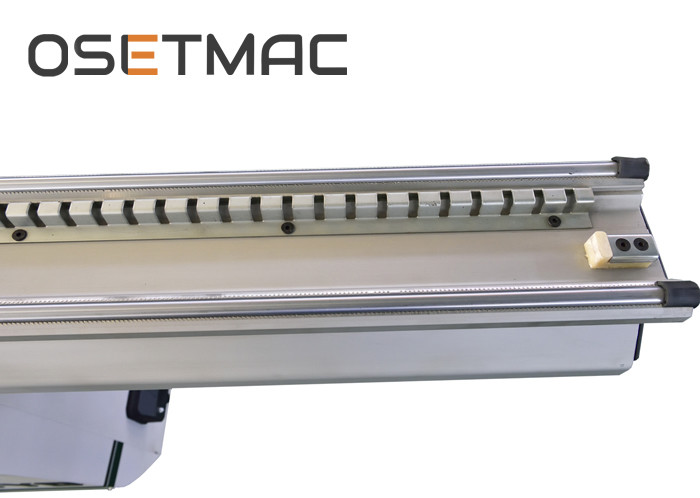

Our table is made of fully-extruded, anodized aluminum that will stay square and true over

many years of use. The guideway of movable table is steel bar structure. After quenching

and chroming, our table is more smooth and less resistance. The comb lock on the table

makes it convenient to stop anywhere.

sliding table



All bearings in this machine are all imported SKF brand, which has lower sliding resistance and

power consumption comparing with ordinary bearings.

Precision Panel  Saw with Sliding Table 3



Haorun saw spindle. After the heating processing and dynamic balancing treatment, our saw

spindle will never deformation. With high quality belt and motor, our machine has lower noise,

higher precision and higher efficiency of power transmission.

sliding table saw spindle

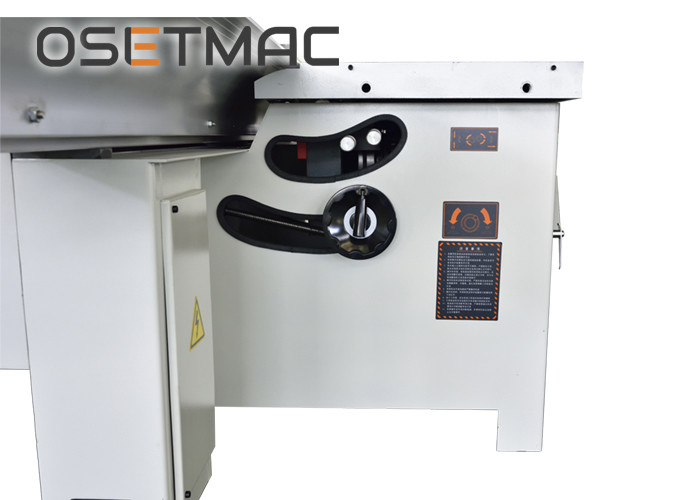

The lifting of the main saw is manual control with linear guide lifting.Rugged all-steel base

stabilizes the machine and reduces vibrations for flawless accuracy and alignment.

Precision Panel  Saw with Sliding Table 5

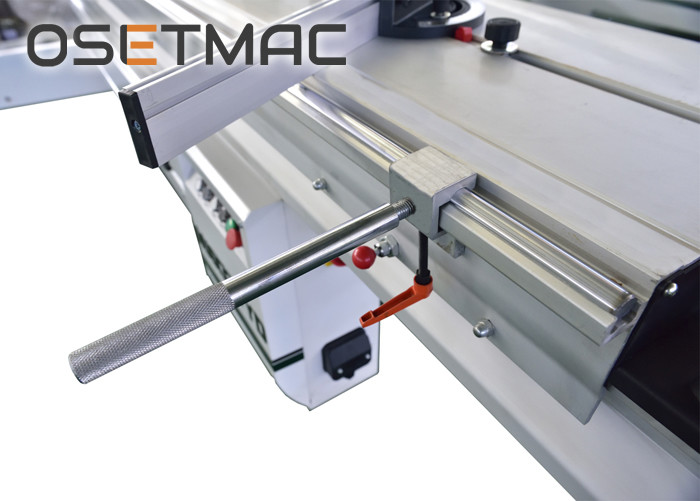

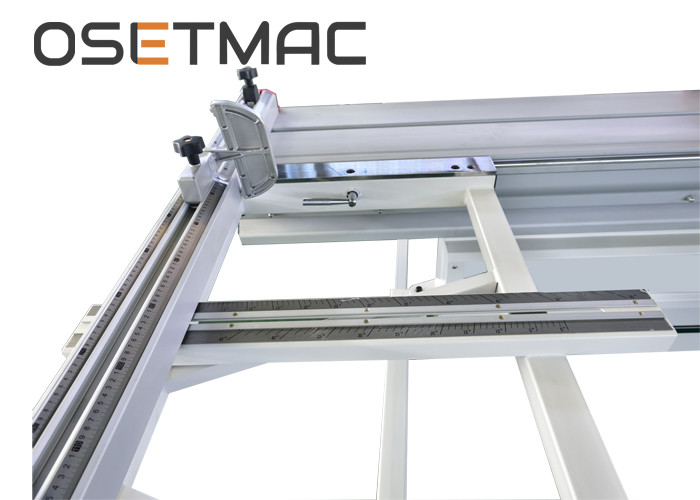

Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make

repeatable cuts without having to lose time measuring lengths.

Precision Panel  Saw with Sliding Table 6

Sliding table saw

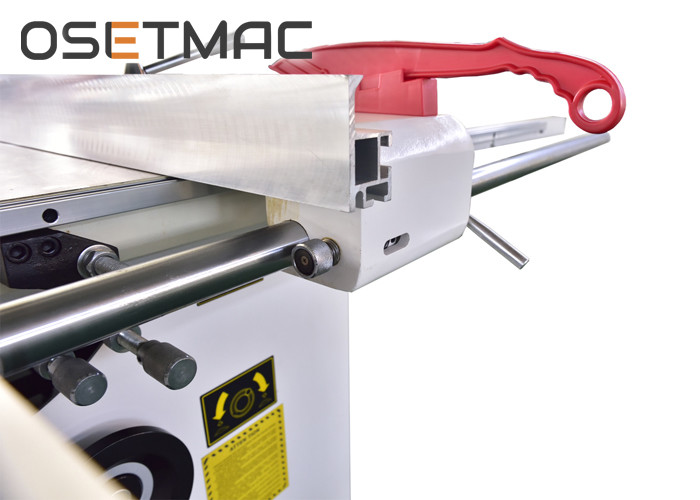

The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.

No extra sanding edges with the scorning blade.Includes a safety blade guard with a tension

system for lifting and lowering the guard without moving it from side to side.

panel saw



Covered by a 1-year parts warranty. You can count on lifetime technical support by phone.

Our team of knowledgeable customer reps are here to help.This machine is Recommended

for: Industrial production, especially cabinetry manufacturers, lumber liquidators.

Precision Panel  Saw with Sliding Table 9



Applications:



This machine apply to processing all kinds of density boards, shaving boards, wood-based

panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood

structure and similar hardness.

Precision Panel  Saw with Sliding Table 10Precision Panel  Saw with Sliding Table 11





Specifications:



Sliding Table Dimension 3800*375mm
Cast Iron Table Dimension 980*560*70mm
Length Extension Table 760*630*50mm
Width Cutting Extension Table 575*550*50mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 315mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 55mm 50/70mm(φ300/350)
Main Motor Power 4KW(5.5KW)
Main Blade Speed 4000/6000RPM
Scoring Saw Blade Diameter 120mm
Scoring Saw Bore Diameter 20mm
Scoring Saw Motor Power 0.75KW(1.1KW)
Scoring Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3000mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Manual
Scoring Saw Height Adjustment Manual

Wood Packing Dimensions

Main Crate and Sliding table

2100*1100*1100mm

3980*450*220mm

Installation Dimensions 3250*3150*900mm
Net Weight 720KG


wood panel saw



Competitive Advantage:



We can change the outlook of the machine according to your requirement.

Any size of the sliding table can be produced and the longest customized size is 4.2 m.

We have two wholly-owned manufacturing factories and can make sure of the delivery time.
