Wood Panel Saw Woodworking Sliding Table Saw MJ6132BD With Scoring Blade
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Usage||Wood Cutting,Wood Working||Type||Table Panel Saw|
|Application||Panels Wood Cutting Machine||Package||Wooden Crate Or Nude Cargo|
sliding table panel saw,
sliding table circular saw machine

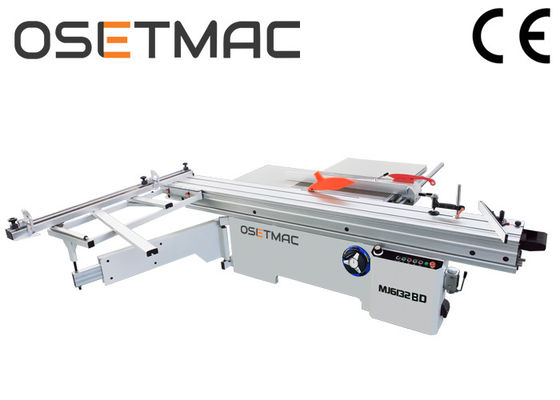

Woodworking Machine Sliding Table Saw MJ6132BD for Plywood and Panel Cutting
- The lifting of the main saw is electronic control with linear guide lifting.
- The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
- Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
- The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
- Huge 3200*380mm sliding table slides on 4 precision shafts for jitter-free motion.
- Covered by a 1-year parts warranty.

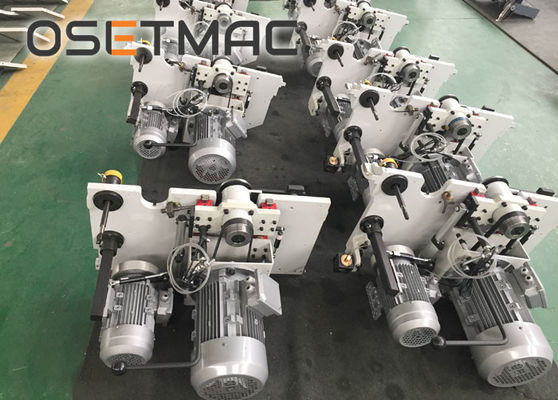

1. This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compressible strength and the high precision of the inter-machine, which can also reduce the shock of the machine.
2.After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
3. All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
4. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chroming, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

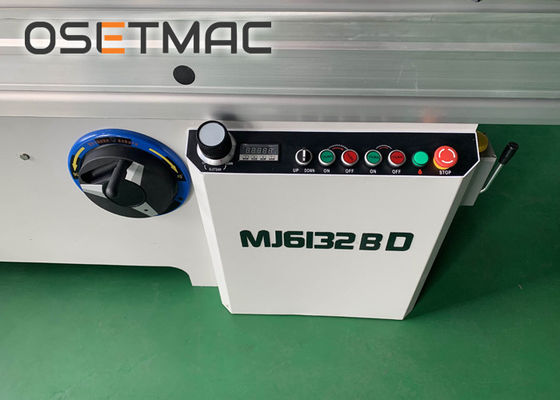

5. The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.
6.This device is an optional one. This device can make sure better dust collection effect, which is suitable for main saw blade diameter 400mm and maximum cutting height 120mm. It’s position is flexible, and it’s very safe for the operator.
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
|Sliding Table Dimension||3200*380mm|
|Cast Iron Table Dimension||910*620*80mm|
|Length Extension Table||905*680*70mm|
|Width Cutting Extension Table||640*680*70mm|
|Main Saw Diameter||300mm|
|Main Saw Blade Diameter Maximum||350mm|
|Main Saw Bore Diameter||30mm|
|Max. Cutting Height With Bade at 90||80/100mm(φ300/350)|
|Max. Cutting Height With Bade at 45||50/70mm(φ300/350)|
|Main Motor Power||5.5KW|
|Main Blade Speed||4000/6000RPM|
|Scorning Saw Blade Diameter||120mm|
|Scorning Saw Bore Diameter||20mm|
|Scorning Saw Motor Power||1.1KW|
|Scorning Blade Speed||8000RPM|
|Max. Cutting Width||1250mm|
|Max. Cutting Length||3100mm|
|Blade Tilting Adjustment||0-45°|
|Main Saw Height Adjustment||Electric|
|Scorning Saw Height Adjustment||Manual|
|Dust Guard Outlet Diameter||80mm|
|Dust System Outlet Diameter||100mm|

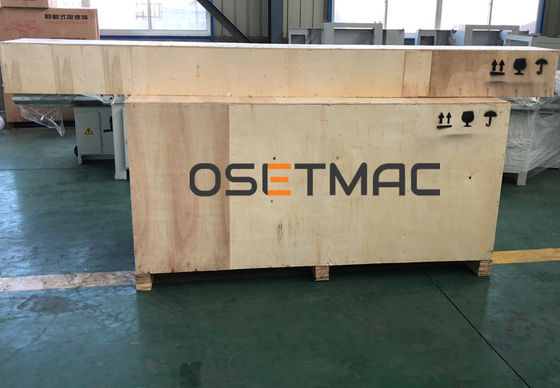

Wood Packing Dimensions
Main Crate and Sliding table
