OSETMAC Woodworking Sliding Table Saw MJ6132S with Electric Lifting and Digital Readout

Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE
Model Number MJ6132S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220v/380v/415v/440v Style Horizontal
Dimension(l*w*h) 3400*1200*1200 Name Precision Panel Saw,sliding Table Saw
Product Name Sliding Woodworking Table Panel Saw Wood Circular Saw Cutting Machine Saw Blade Angle 0-45
Main Saw Power 5.5KW Scoring Saw Power 1.1KW
High Light

sliding table panel saw

,

sliding panel saw machine

Leave a Message
Product Description

Woodworking Machine Sliding Table Saw MJ6132S made in China for Plywood and Panel Cutting



OSETMAC Sliding Table Saw



Machine Frame


Laster cutting frame
Plastic spray surface treatment

Slding table saw machine body



Description:

  1. The lifting of the main saw is manual control with linear guide lifting.
  2. The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
  3. Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
  4. The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
  5. Huge 3000*375mm sliding table slides on 4 precision shafts for jitter-free motion.
  6. Covered by a 1-year parts warranty.

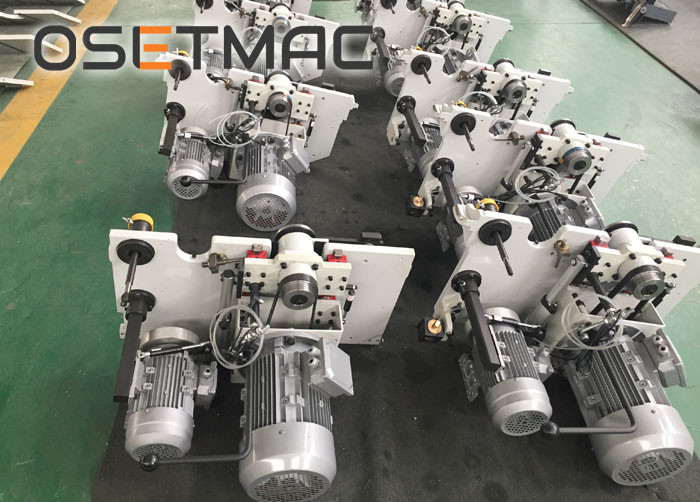

panel saw inner structure



Detail Show

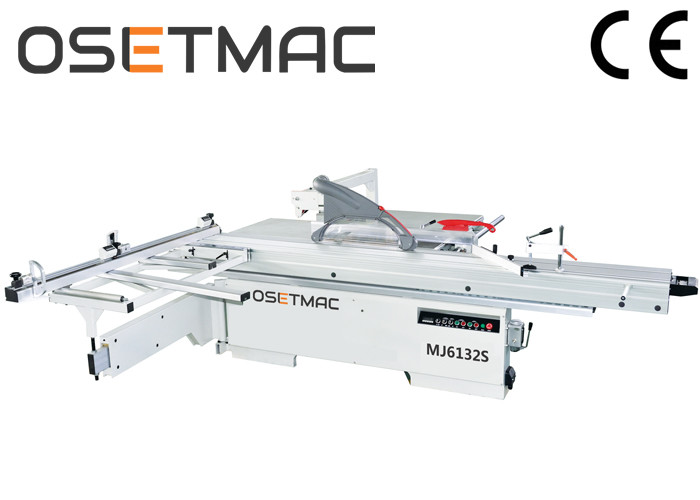

OSETMAC Sliding table saw MJ6132S

OSETMAC Sliding Table Saw Readout

OSETMAC Sliding Table Saw Readout

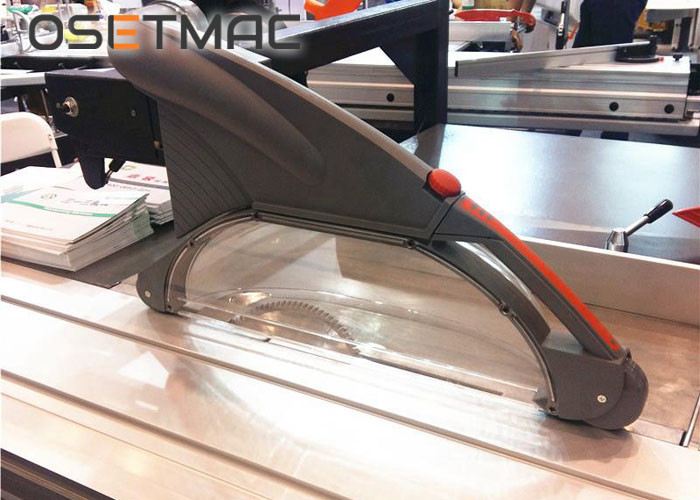

Sliding Table Saw Dust Cover





Specifications:



Sliding Table Dimension 3000*375mm
Cast Iron Table Dimension 980*560*70mm
Length Extension Table 760*630*50mm
Width Cutting Extension Table 575*550*50mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 315mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 55mm 50/70mm(φ300/350)
Main Motor Power 4KW(5.5KW)
Main Blade Speed 4000/6000RPM
Scoring Saw Blade Diameter 120mm
Scoring Saw Bore Diameter 20mm
Scoring Saw Motor Power 0.75KW(1.1KW)
Scoring Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3000mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Manual
Scoring Saw Height Adjustment Manual

Wood Packing Dimensions

Main Crate and Sliding table

2100*1100*1100mm

3400*420*220mm

Installation Dimensions 3250*3150*900mm
Net Weight 680KG

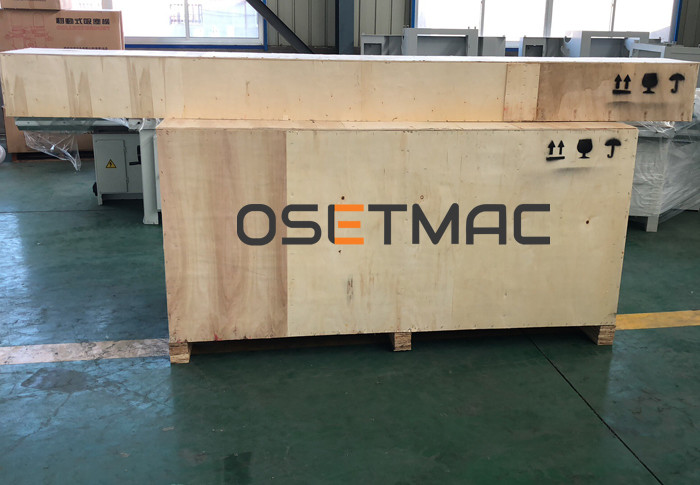

OSETMAC Wooden Crate Package

OSETMAC Loading Container



Competitive Advantage:

  1. We can change the outlook of the machine according to your requirement.
  2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.

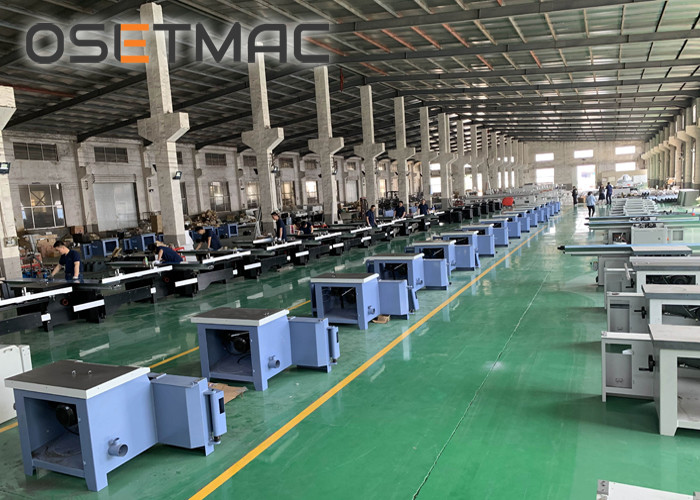

  3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.OSETMAC Sliding Table Saw PackageOSETMAC Sliding Table Saw WorkshopOSETMAC Woodworking Sliding Table Saw MJ6132S with Electric Lifting and Digital Readout 11OSETMAC Woodworking Sliding Table Saw MJ6132S with Electric Lifting and Digital Readout 12
