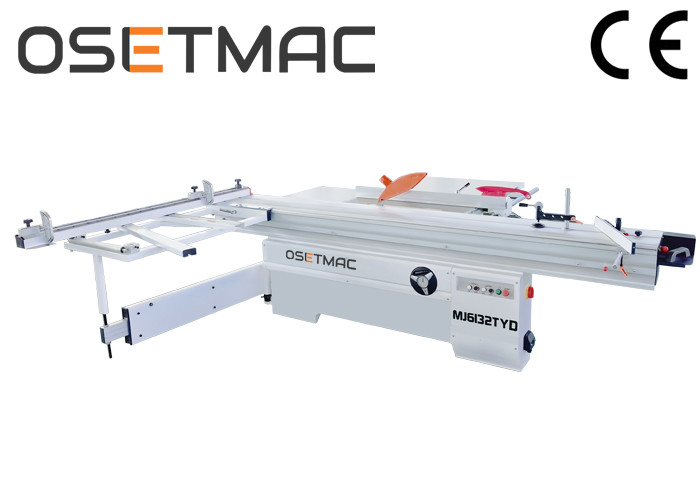

High Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in China
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension(l*w*h) | 3400*1200*1200 | Type | Sliding Table Saw |
|---|---|---|---|
| Application | Panels Wood Cutting Machine | Tilting Saw Blade | 90°/0~45° |
| Gross Cut Capacity | 3200mm | Product Name | Sliding Woodworking Table Panel Saw Wood Circular Saw Cutting Machine |
| High Light | sliding table panel saw,sliding table circular saw machine |
||
Product Description
Woodworking Machine Panel Saw Sliding Panel Saw MJ6132TYD for Plywood and Panel Cutting
Description:
The lifting of the main saw is manual control with linear guide lifting.
The sliding table is made of high-strength extruded, anodized aluminum that will stay square
and true and won’t bent.
Comb Lock on the sliding table makes it more convinient to stop the table at your prefer position.
Crosscut angle ruler
Fine adjustment to the rip fence.

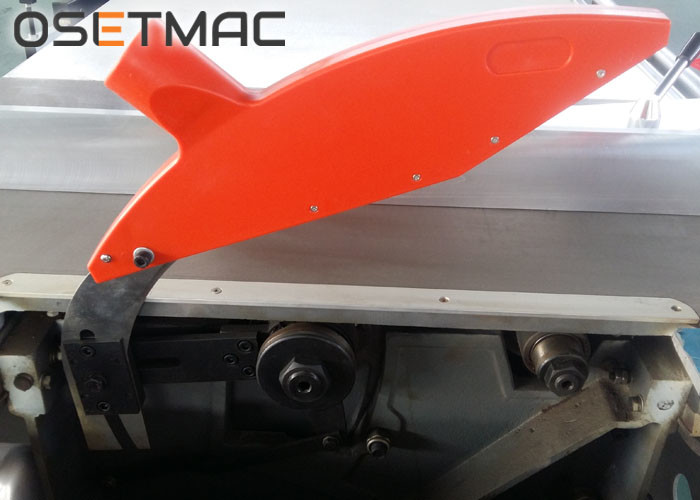

Saw blade with protective cover and riving knife
Applications:
This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
Specifications:
| Sliding Table Dimension | 3200*375mm |
| Cast Iron Table Dimension | 980*560*70mm |
| Length Extension Table | 760*630*50mm |
| Width Cutting Extension Table | 575*550*50mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 300mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) |
| Max. Cutting Height With Bade at 45 | 55mm50/70mm(φ300/350) |
| Main Motor Power | 4KW(5.5KW) |
| Main Blade Speed | 4000/6000RPM |
| Scoring Saw Blade Diameter | 120mm |
| Scoring Saw Bore Diameter | 20mm |
| Scoring Saw Motor Power | 0.75KW(1.1KW) |
| Scoring Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3200mm |
| Blade Tilting Adjustment | 0-45° |
| Main Saw Height Adjustment | Manual |
| Scoring Saw Height Adjustment | Manual |
|

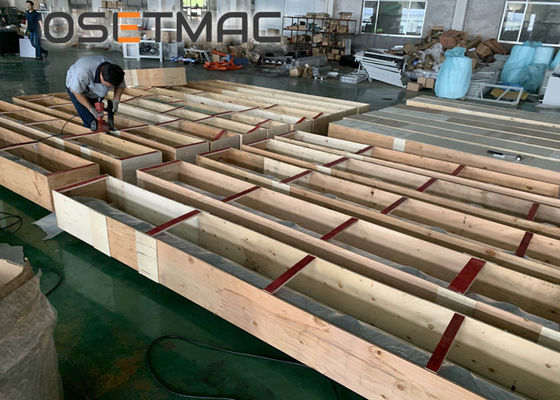

Wood Packing Dimensions Main Crate and Sliding table |
2100*1100*1100mm 3400*420*220mm |
| Installation Dimensions | 3250*3150*900mm |
| Net Weight | 680KG |
Competitive Advantage:
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4.2 m.

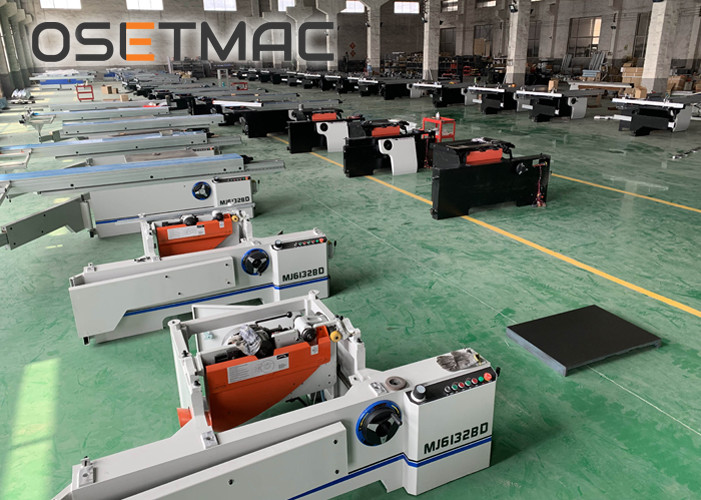

- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
