Auto Industrial Wood Sanding Machine Polishing Mini Sander Machine With Roller
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Automatic Grade | Automatic | Voltage | 220V/380V,Customized |
|---|---|---|---|
| Power(w) | According To The Width | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Application | Door Cabinets Other Furniture | ||
| High Light | industrial sanding machine,wood sanding equipment |
||
Product Description

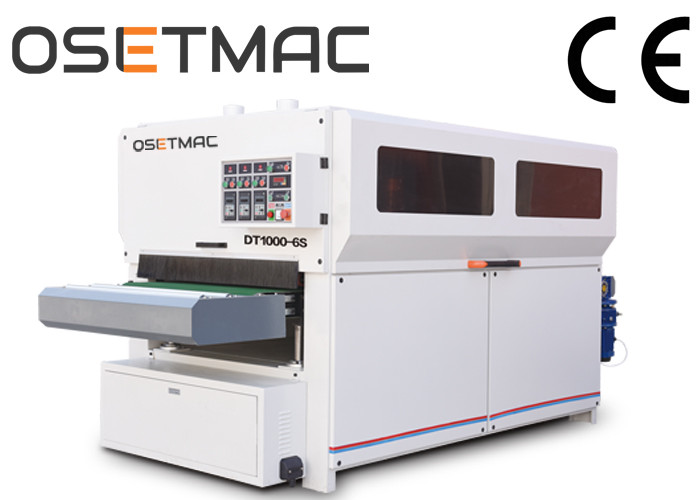

Automatic Wood Brush Sanding Machine DT1000-6S for the grinding of Door, Cabinet, Plywood, MDF and other Panel furniture or Solid Wood Furniture.
Main Features
1. The micro-computer front control panel can be operated conveniently and quickly.
2. The feed speed is controlled by the frequency converter, which can be operated flexibly and conveniently.
3. The frame has high strength, large weight and nice stability.
4. The maintenance is convenient, safety performance is excellent, and the failure rate is low.
5. The sanding unit adopts the cast structure with slight deformation and excellent damping performance.
Quick Detail:
- Riken Sandpaper imported from Japan
- Different layouts of rollers
- Rollers can oscillate in different ways
- The platform can lift by electric control
- Delta frequency inverter
- Chint electric components
- High-temperature painting
Applications:
This sanding machine is suitable for the polishing or grinding or sanding of solid wood furniture and panel furniture such as door, cabinet, etc. It usually work together with CNC router and vacuum membrane press and greatly improve work efficiency.
Specifications:
| Panel Width | 1000mm |
| Panel Thickness | 10-150mm |
| Panel Length | ≥360mm |
| Conveyor Speed | 5-20m/min |
| Roller Speed | Frequency Control |
| Roller Diameter | 300mm |
| Total Power | 11.65KW |
| Long Roller Motor | 2.2KW*2 |
| Conveyor Motor | 1.1KW |
| Chain Motor | 0.55KW |
| Disc Brush Motor | 1.5KW |
| Disc Brush Oscillate Motor | 0.55KW |
| Small Roller Motor | 1.5KW*2 |
| Small Roller Oscillate Motor | 0.55KW |
| Packing Dimension | 3100×1760×1900mm |
| Net Weight | 1600KG |
Competitive Advantage:
- We can customize the outlook and functions of the machine according to your requirement.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
