Woodworking Machinery 150mm Sanding Roller and 7.75kW Power Wood Sanding Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Machine Type | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty | 1 Year |
| Weight (KG) | 1100 KG | Power (kW) | 7.75 |
| Key Selling Points | Easy To Operate | Showroom Location | None |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant | Range Of Working Width | ≥50mm |
| Range Of Working Thickness | 5-40mm | Height Of Emery Roller | 150mm |
| Diameter Of Emery Roller | 180mm | Height Of Sanding Roller | 150mm |
| Diameter Of Sanding Roller | 300mm | Speed Of Sanding Roller | Frequency Control |
| Speed Of Conveyor | 12m/min | Total Power | 4.11kw |
| Power Supply | 380V/50Hz |
Product Description
Products Description
Furniture Wood Sanding Machine for Woodworking Machinery
Description
1 | Slide rail | It can stretch according to the size of the sanding materials |
2 | Press Roller | To press the sanding material |
3 | Press Roller Lifting Digital Display Handle | To show the thickness of the sanding material |

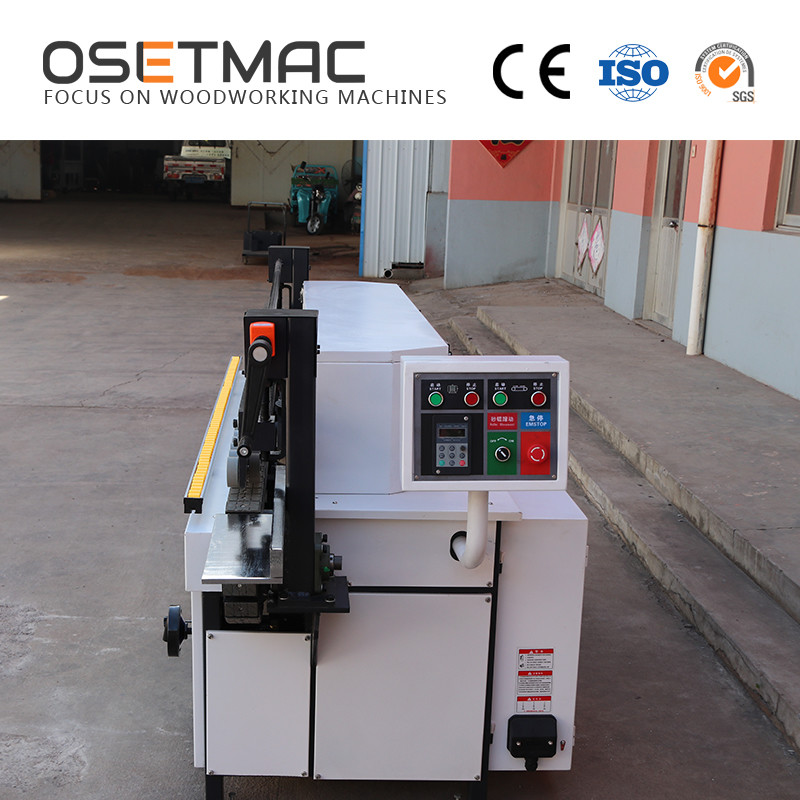

4 | Control Panel | Easy operating control panel to control the working of the machine |
5 | Roller Adjusting Handle | To adjust the distance between the sanding rollers and the sanding material |
6 | Foot Screws | To make the machine stable when it works |
7 | Conveyor | Automatic feeding conveyor makes the machine more efficient |
8 | Junction Box | To connect power |
Specification | |

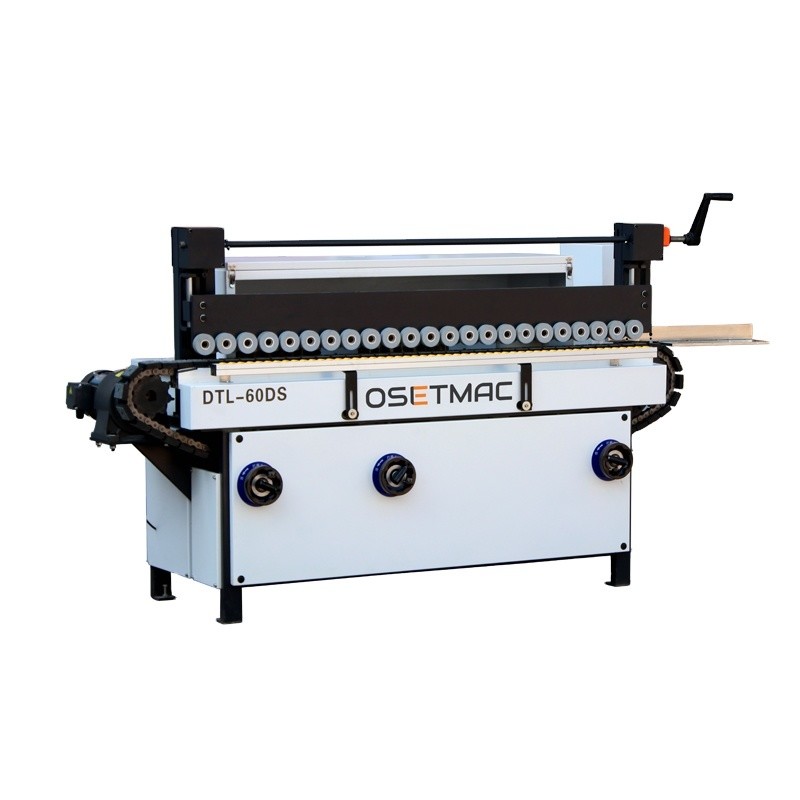

Model | DTL-60DS |
Range of working width | ≥50mm |
Range of working thickness | 5-40mm |
Height Of Emery Roller | 150mm |
Diameter Of Emery Roller | 180mm |
Height of sanding roller | 150mm |
Diameter Of sanding Roller | 300mm |
Speed Of Sanding Roller | Frequency Control |
Speed of conveyor | 12m/min |
Total Power | 4.11kw |
Power Supply | 380V/50Hz |
Main motor | 0.75kw * 3 |
Conveyor motor | 0.75kw |
Channeling motor | 0.37kw * 3 |
Packing Dimension | 2400*1000*1200mm |
Net Weight | 540kw |
Wooden Case Dimension | 2450*1100*1330mm |
Wooden Case Weight | 100kg |
Details
The control panel with a rotating design is easy to operate, saving human resource and time greatly.
This machine can be equipped with a variety of sandpaper, and we provide customized services according to your requirements.

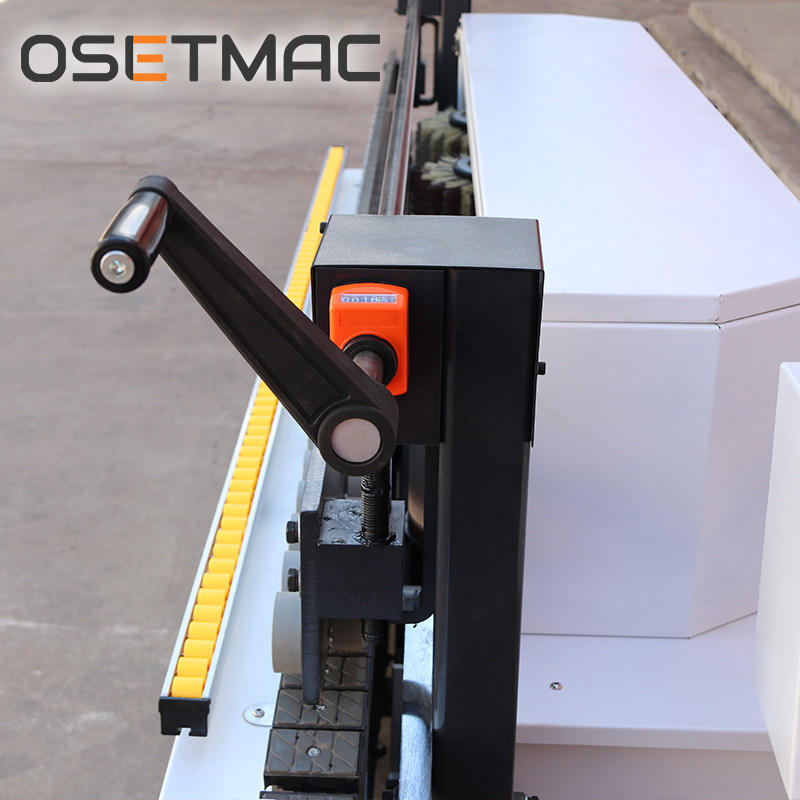

This machine uses a digital display handle to adjust the lifting, and the height can be accurate to millimeter.
This machine is equipped with a stretchable slide rail, which can be adjusted according to the width of the working piece.
Product packaging
Certifications
Company Profile
OSETMAC
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company.. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
