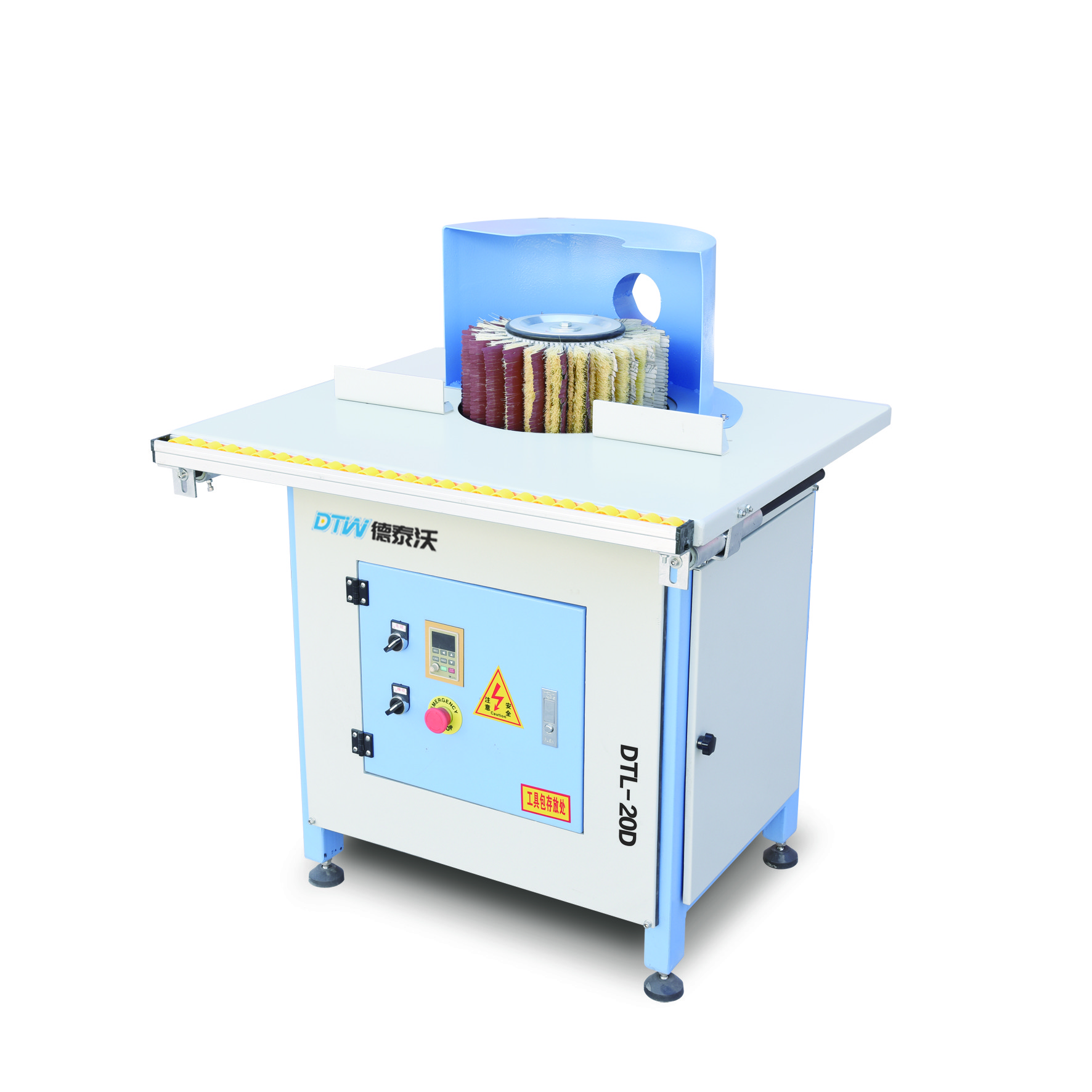

Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine

China Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine supplier
Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine supplier Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine supplier Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine supplier

Large Image :  Mini Woodworking Sanding Machines Furniture Rotary Brush Sanding Machine

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: DTL-20D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Automatic Grade: Automatic Power(w): According To The Width
Detail: Shanghai Libo Motor Rotate Speed: Adjustable
Customization: Support Optional: Different Abrasive Materials

Electric Woodworking Rotary Brush Sanding Machine Mini for Cabinet, Door, Plywood and Furniture





Quick Detail:

  1. Roller is φ300mm and 200mm Height
  2. Rotate Speed is adjustable
  3. Delta Frequency Inverter

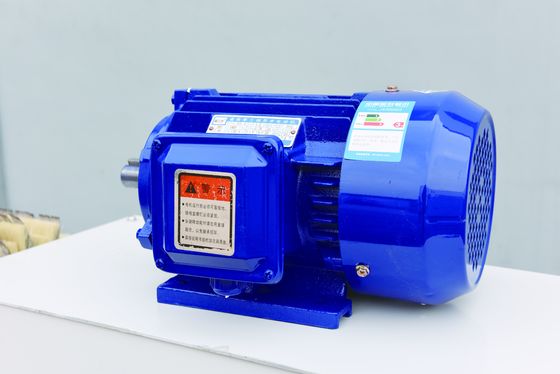

  4. Shanghai Libo Motor
  5. Japanese RIKEN Sandpaper
  6. Different Abrasive Materials for your choice
  7. Support Customization





Description:

  1. The speed of the roller is adjustable with frequency inverter, so it can use different speed according to the hardness of the wood materials.

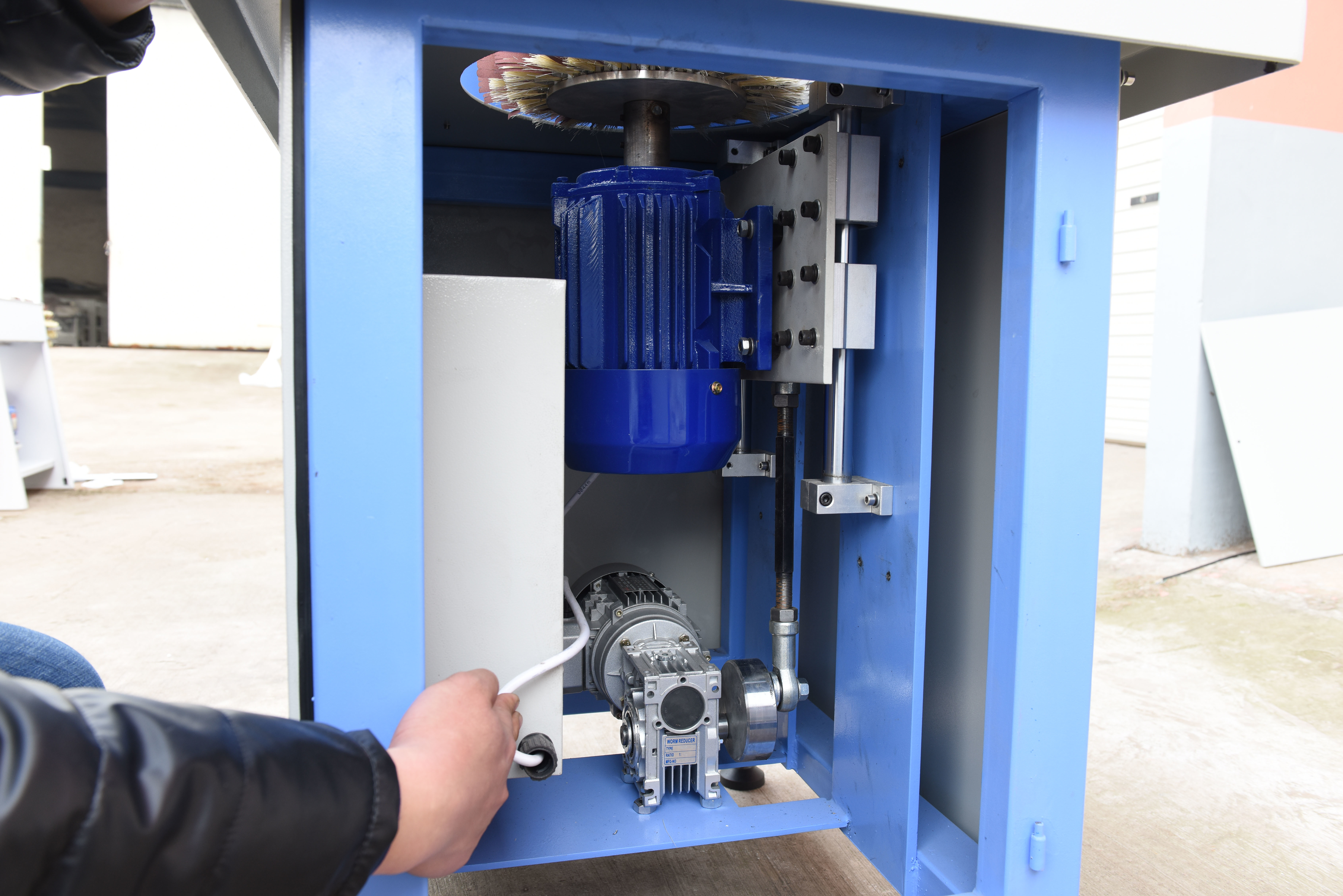

  2. The roller can lift with electric motor control which make sure the perfect sanding effect.
  3. Imported Riken sandpaper is good quality and more durable.
  4. It is more beautiful and will not rust with high temperature painting.
  5. The fluency strips will make it easy to move the workpiece on the worktable.
  6. This machine can be used in different boards with different sculpture or curve. Wood materials with primer or without primer both can be sanded on this machine.





Applications:



This machine can be used in different wood materials such as solid wood, plywood, MDF, veneer board, etc. It is mainly for the sanding and polishing of the special-shaped cabinet, door, photo frame, stair post, small wooden artwork and any other special curved workpiece that can be hold in hand.







Specifications:

Model DTL-20D
Roller Diameter 300mm
Roller Height 200mm
Lifting Motor 0.37KW RV40 1:60
Main Motor 0.75KW
Dimension 870*750*1060mm
Wooden Case Packing 950*840*1170mm
Net Weight 130KG
Gross Weight 170KG





Competitive Advantage:

  1. We can change the outlook of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
  3. This serial sanding machine support customization.
