Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander

Good quality Woodworking Sanding Machines for sales
Good quality Woodworking Sanding Machines for sales
I have got the machines and the sliding table saw are really good quality.

—— Joro

I'm Online Chat Now

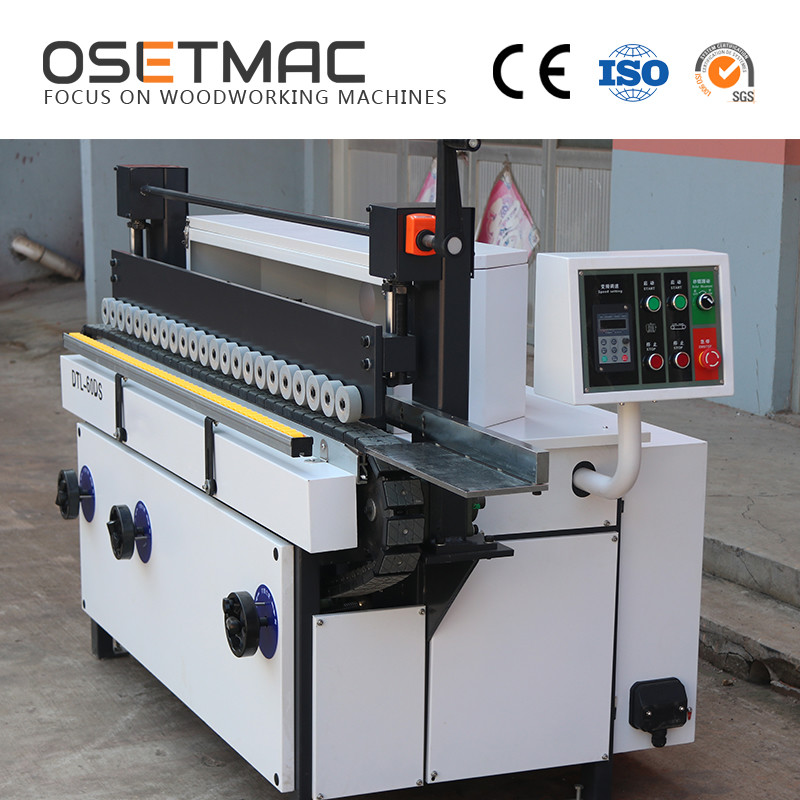

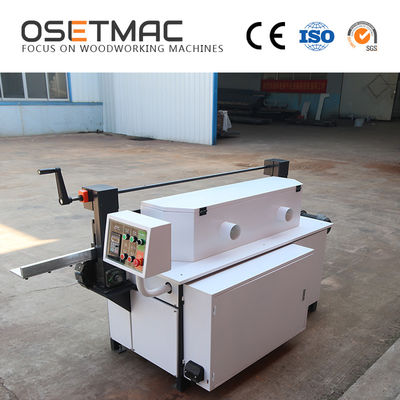

Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander

China Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier
Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander supplier

Large Image :  Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: DTL-40D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Feature: High Strength Frame Weight: Large
Failure Rate: Low Damping Performance: High
Deformation: Slight Operation: Flexibly And Conveniently

Woodworking Edge Sander Edge Sanding Machine DTL-40D for Cabinet, Door, Plywood and Furniture





Main Features



1. The micro-computer front control panel can be operated conveniently and quickly.

2. The feed speed is controlled by the frequency converter, which can be operated flexibly and conveniently.

3. The frame has high strength, large weight and nice stability.

4. The maintenance is convenient, safety performance is excellent, and the failure rate is low.

5. The sanding unit adopts the cast structure with slight deformation and excellent damping performance.







Description:

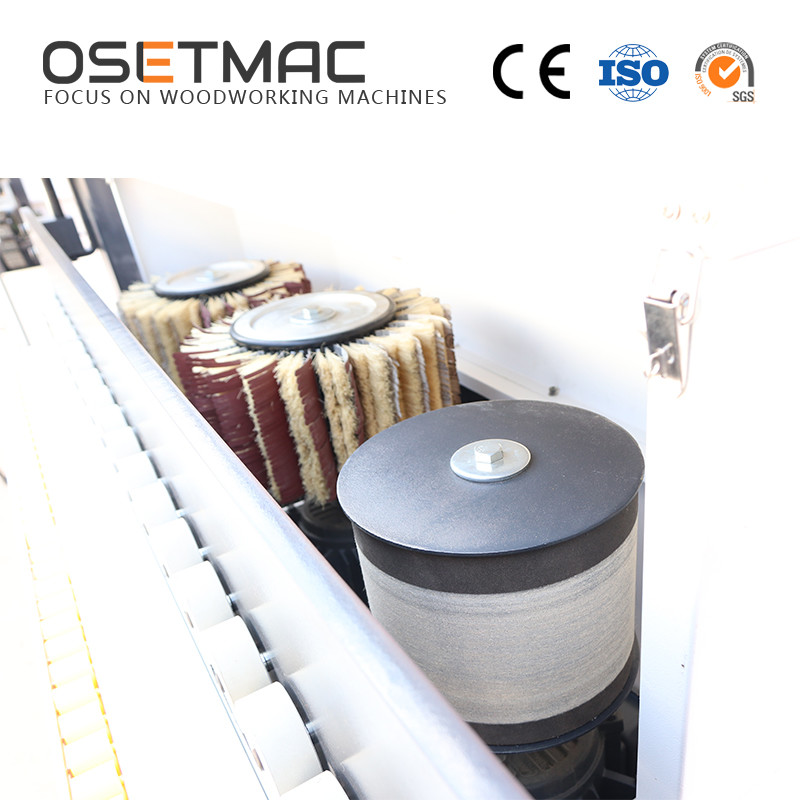

  1. The speed of two rollers are both adjustable with frequency inverter, so it can use different speed according to the hardness of the wood materials.
  2. The roller can lift by pneumatic control which make sure the perfect sanding effect.
  3. Imported Riken sandpaper is good quality and more durable.
  4. It is more beautiful and will not rust with high temperature painting.
  5. The fluency strips will make it easy to move the workpiece on the worktable.
  6. This machine can be used in different boards with different sculpture or curve. Wood materials with primer or without primer both can be sanded on this machine.



Applications:



This machine can be used in different wood materials such as solid wood, plywood, MDF, veneer board, etc. It is mainly for the sanding and polishing of the special-shaped cabinet, door, photo frame, stair post, small wooden artwork and any other special curved workpiece that can be hold in hand.







Specifications:



Model DTL-40D
Roller Diameter 300mm
Roller Height 200mm*2
Conveyor Motor 0.37KW
Main Motor 0.75KW *2
Lifting Way Pneumatic Control
Dimension 1650*1000*1300mm
Wooden Case Packing 1680*1100*1430mm
Net Weight 310KG
Gross Weight 390KG





Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander







Convenient Operation Woodworking Sanding Machines Woodworking Edge Sander



Competitive Advantage:

  1. We can change the outlook of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
  3. This serial sanding machine support customization.
