Modern Wood Dust Collector Y Type Air Duct Design For Woodworking Small Shops
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | CE,ISO | Brand | OSETMAC |
|---|---|---|---|
| Place Of Origin | Qingdao, China | Power | 3Kw |
| Installtation | Easy | Usage | Woodworking Machinery |
| High Light | wood dust collector,wood chip dust collectors |
||
Product Description

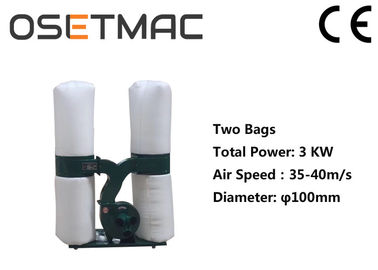

Electric woodworking wood dust collector for woodworking machine
Wood Dust Extractor advantage
1. Portable and convenient
2. Excellent dust collection effect.
3. East to control,no electricity waste.
4. Price is competitive.
Wood Dust Extractor Features
1. Upper bag, flat peach, breathable bag
2. Bag branches
3. Polyester light silk cloth bag, the upper cloth bag is well ventilated, and the lower cloth bag collects dust in colleges and universities.
4. One-piece grooved cylinder
5.y type air duct design
Make ventilation more smooth and better dust collection
6. Multi-port air inlet (some sizes can be customized)
7. Universal caster design, easy to install and move
8. Lower bag twill thickened Oxford cloth
| Model | MF9030 | Brand | Detevo |
| Power | 3Kw | Voltage | 380V/220V |
| Current | 6.4A | Rotating speed | 2870R/min |
| Motor Power | 50/60Hz | Motor energy efficiency | 3level |
| noise | 58db | power consumption | 3 degree/h |
| Air volume | 3100cube/h | Wind speed | 35-40m/s |
| Vacuuming | 100mm*s | Drum diameter | 480nm |
| Dust bag size | 480*1000mm | Dust bag capacity | 180L*4 |
| Dimensions | 1400*500*2050mm | Package dimensions | 1460*550*520mm |
| net weight | 57Kg | Gross weight | 59Kg |
| Body thickness | 1.0(Special 1.2) | Blade technology | Dynamic balance calibration |
| specification | 380V/220V 3Kw Single/double barrel | type of packaging | Paper box |
| Standard accessories | Mainframe, cloth bag, pole, drum, Y-type tee, accessory bag, chassis, air inlet | ||
