xFeature | Hydraulic | Certification | CE,ISO |
---|---|---|---|
Brand | OSETMAC | Place Of Orgin | Qingdao, China |
Advantage | Easy To Use | Structure | Compact |
High Light | wood cold press machine,hydraulic door press machine |
500T Woodworking Wood Hydraulic Cold Press Machine
Advantage
1. The whole machine is compact in structure, beautiful in appearance, stable in performance and durable in use.
2, the upper and lower platens are finished by gantry milling to ensure smoothness.
3, the control panel is simple and easy to use, with an emergency stop switch.
4, using hydraulic system work, lifting system is fast, uniform pressure, high efficiency.

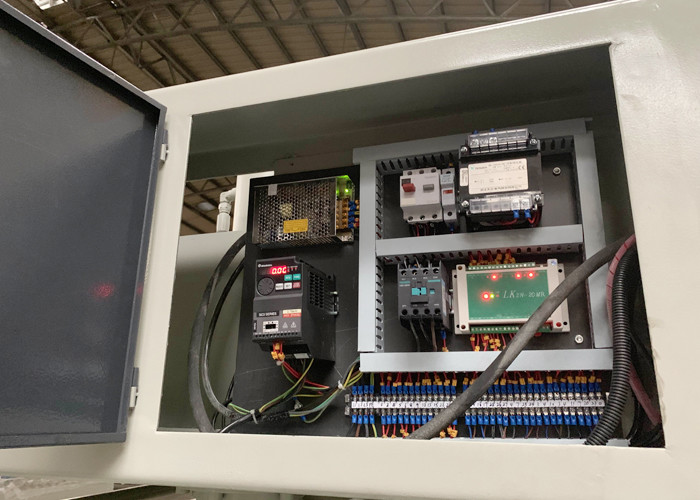

5, with automatic control circuit and pressure cut-off protection, automatic lifting.
Brief introduction
plywood cold machine is hich is the machinery and equipment of initial sticking before gluing in order to shortening hot pressing cycle and improving workpiece quality. It belongs to pressure machinery. It mainly cold and mold in a short time single board of glued and formed and to make it initial shape. Then put into the hot press machine for hot pressing and sticking. It is important to improve plywood quality.
500T cold press main (cylinder up) technical parameters for example
|
|||
1. Total pressure
|
500T
|
||
2. finished size
|
1220*2440mm
|
||
3. diameter of cylinders
|
360mm
|
||
4. quantity of cylinders
|
2
|
||
5. Cylinder position
|
Cylinder-up
|
||
6.Board feeding direction
|
Transverse
|
||
7. Working stroke
|
1000mm
|
||
8. Power
|
16.5KW
|
||
9. Upper and bottom beam
|
1600mm
|
||
11.Working table dimension
|
2700*1370mm
|
||
12 up, bottom, middle beam
|
900, 900, 400mm
|
||
13.total weight
|
Approx.13T
|
||
14.Withstand voltage
|
<=25Mpa
|
||
15.Control mode
|
Full automatic control manual control
|
||
16.the unit pressure of plate embryo
|
13.5kgf/cm2
|
||
17 Lift cylinder
|
diameter100mm *1 piece
|
||
18 Power
|
7.5kw
|
||
19 Allowed pressure
|
<=25Mpa
|
||
20 Integrated block charging valve
|
60
|
||
21 overall dimension
|
2600*1370*3700mm
|
||
22 Column width
|
400mm
|
