Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting

China Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier
Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting supplier

Large Image :  Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE
Model Number: MJ6132S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Voltage: 380v/415v/440v Style: Horizontal
Dimension(l*w*h): 3400*1200*1200 Name: Precision Panel Saw, Sliding Table Saw
Main Saw Lifting: Electrical Control Scoring Saw Lifting: Electrical Control
Saw Blade Angle: 0-45

Woodworking Machine Sliding Table Saw MJ6132S for Plywood and Panel Cutting

Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting



Quick Detail:

  1. Yongli Sliding Table
  2. SKF Bearings
  3. Haorun saw spindle
  4. Henghong electric motor with Aluminum shell
  5. Taiwan HIWIN guide rail and sliding block
  6. 1.9m European guiding rule
  7. Altendour-structure dust cover
  8. Oil injector
  9. Schneider electrics



Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting

Sliding table saw bearings

Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel CuttingFurniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting



Description:

  1. The lifting of the main saw is manual control with linear guide lifting.
  2. The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.

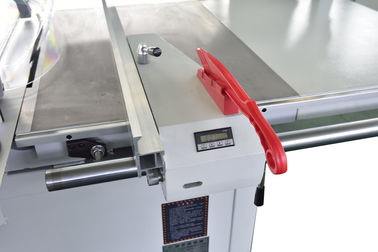

  3. Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
  4. The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
  5. Huge 3000*375mm sliding table slides on 4 precision shafts for jitter-free motion.
  6. Covered by a 1-year parts warranty.

Sliding table saw inner structure



Applications:



This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.



Sliding table saw MJ6132S



Specifications:



Sliding Table Dimension 3000*375mm
Cast Iron Table Dimension 980*560*70mm
Length Extension Table 760*630*50mm
Width Cutting Extension Table 575*550*50mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 315mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 55mm 50/70mm(φ300/350)
Main Motor Power 4KW(5.5KW)
Main Blade Speed 4000/6000RPM
Scoring Saw Blade Diameter 120mm
Scoring Saw Bore Diameter 20mm
Scoring Saw Motor Power 0.75KW(1.1KW)
Scoring Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3000mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Manual
Scoring Saw Height Adjustment Manual

Wood Packing Dimensions

Main Crate and Sliding table

2100*1100*1100mm

3400*420*220mm

Installation Dimensions 3250*3150*900mm
Net Weight 680KG




Competitive Advantage:

  1. We can change the outlook of the machine according to your requirement.
  2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.

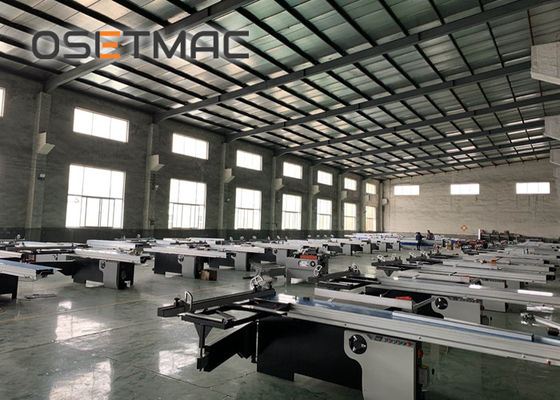

  3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

Furniture Use Sliding Table Saw MJ6132S for Wood Cutting and Panel Cutting

Sliding table saw package

OSETMAC SLIDING TABLE SAW PACKAGE
