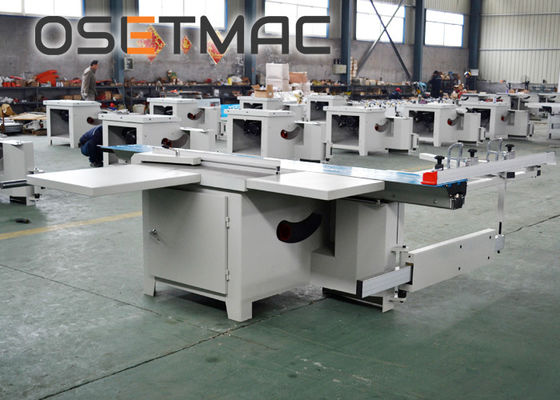

High Speed Woodwroking Sliding Cutterfor MDF Board PVC Cutting Two Blades
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTable Length | 3000mm | Main Motor | 5.5KW |
---|---|---|---|
Scoring Motor | 1.1KW | Voltage | 220/380/415/440 |
Usage | Wood Cutting | ||
High Light | sliding panel saw machine,sliding table circular saw machine |
Description:
* All bearings in this machine are all imported SKF brand.
* The table is made of fully-extruded, anodized aluminum.
* With cast-iron main table and broaden extension table.
* The main saw blade lifting is manual control.
* The hand wheel for saw blade tilting is very light.
* Digital Readout is available according to your requirement.
* There are comb lock on the table.
Parameters | |||
Sliding Table Dimension | 3000*375mm | ||
Cast Iron Table Dimension | 980*560*70mm | ||
length extension table | 760*630*50mm | ||
width cutting extension table | 575*550*50mm | ||
Main Saw Diameter | 300mm | ||
Main Saw Blade Diameter Maximum | 315mm | ||
Main Saw Bore Diameter | 30mm | ||
Max. Cutting Height With Bade at 90 | 80mm(φ300) | ||
Max. Cutting Height With Bade at 45 | 50mm(φ300) | ||
Main Motor Power | 4.0/5.5KW | ||
Main Blade Speed | 4000/6000RPM | ||
Scorning Saw Blade Diameter | 120mm | ||
Scorning Saw Bore Diameter | 20mm | ||
Scorning Saw Motor Power | 0.75/1.1KW | ||
Scorning Blade Speed | 8000RPM | ||
Max. Cutting Width | 1250mm | ||
Max. Cutting Length | 3000mm | ||
Blade Tilting Adjustment | 0-45° | ||
Main Saw Height Adjustment | Manual | ||
Scorning Saw Height Adjustment | Manual | ||
Dust Guard Outlet Diameter | 80mm | ||
Dust System Outlet Diameter | 100mm | ||
Wood Packing Dimension | 2100*1100*1100mm | ||
Main Crate and Sliding table | 3200*420*220mm | ||
Dimension | 3050*3150*900mm | ||
G. W. | 700KG |
1. Inner Structure
25mm metal plate guarantees the compressible strength and the high precision of the inter-machine, which can also reduce the shock of the machine.
2. Main Saw and Scorning Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
3. SKF Bearing
All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
4. Sliding Table Structure and Feature
Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.
5. Cast-iron Main Table and Extension Table
After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.
6. Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.
7. Controlling Board
The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.
8. Orange Dust Hood and Riving Knife
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.
