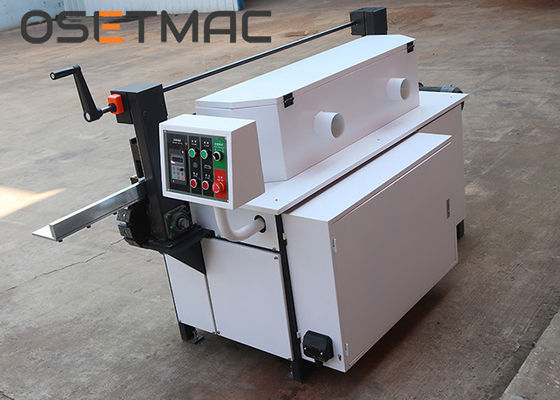

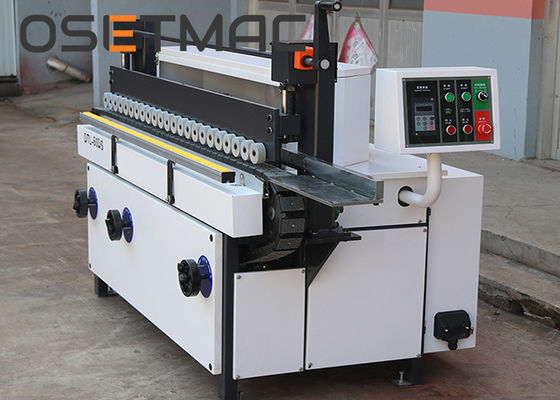

3 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door

Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE ISO
Model Number DTL-60DS
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Supply Ability 1000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty One Year Automatic Grade Automatic
Condition New Voltage 380V 50HZ,Customized
Function Side Sanding
High Light

industrial sanding machine

,

wood sanding equipment

Leave a Message
Product Description

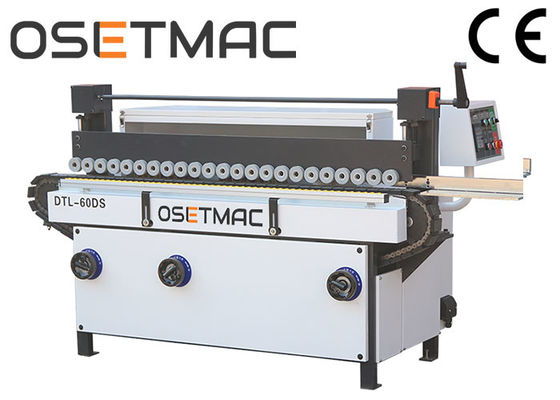

Woodworking Side Brush Sanding Machine DTL-60DS for Door and Cabinet Door





3 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door 0

Description:

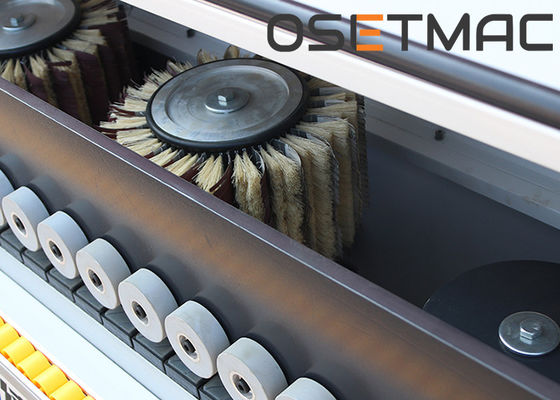

* This model has 2 sanding rollers and 1 brush roller for heavy sanding.
* The thickness can be displayed on the control handle.
* Easy control board
* Working Voltage: 380V/50HZ /3PH
* Schneider electrics.
* The roller speed is adjustable by inverter controlling.
* New conveying device same as edge banding machine which is more stable.
* With stretchable fluency strips.
* Shanghai Yatai inverter and Shanghai Libo motor.
* Air Tac solenoid valve.
* Warranty: The whole machine 12 months
* Inverter Warranty: 18 months
* Support customization for the machine appearance.



3 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door 1



Specifications:



Brush Roller Diameter 300mm
Sponge Sand Roller Diameter 150mm
Roller Length 150mm
Min Width 80mm
Min Length 60mm
Max. Thickness 45mm
Sandpaper Grades 120-160#
Lifting Way Electric Control
Total Power 2.62KW
Dimension 2360×820×1200mm
Wooden Case Package 2390×910×1330mm



3 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door 23 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door 33 Rollers Woodworking Sanding Machines For Side Sanding Of Door And Cabinet Door 4
