|Warranty:||12 Months||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service|
|Voltage:||380v,220v/380v/415v/440v Or As Customer Request||Style:||Horizontal ,Vertical|
|Usage:||Woodworking, Wood Cutting, Table Saw , Wood Working, Cut Wood||Gross Cut Capacity:||3000mm|
sliding panel saw machine,
sliding table circular saw machine

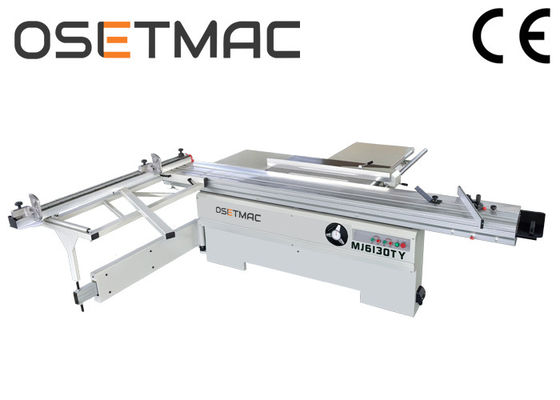

Cut wood Industrial Commercial Sliding Panel Saw With scoring blade for furniture & cutting panel Woodworking machine
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
3.SKF Bearing of Sliding panel saw
All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

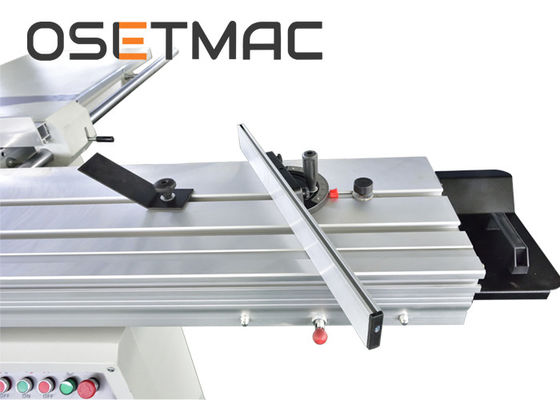

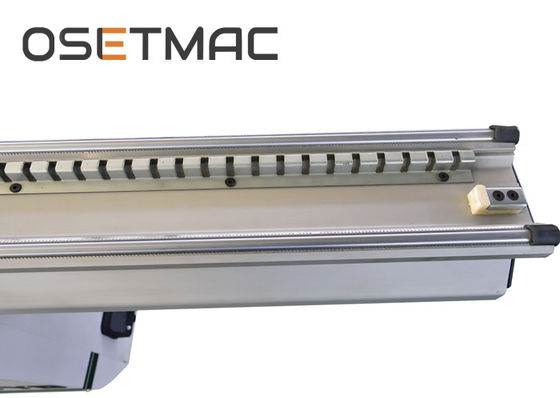

4.Sliding Table Structure and Feature
Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.
5.Cast-iron Main Table and Extension Table(sliding panel saw )
After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

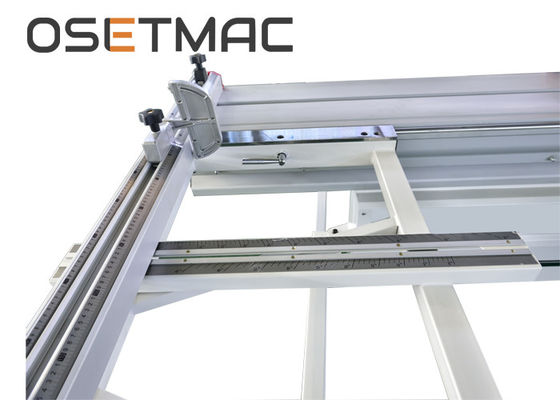

6.Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

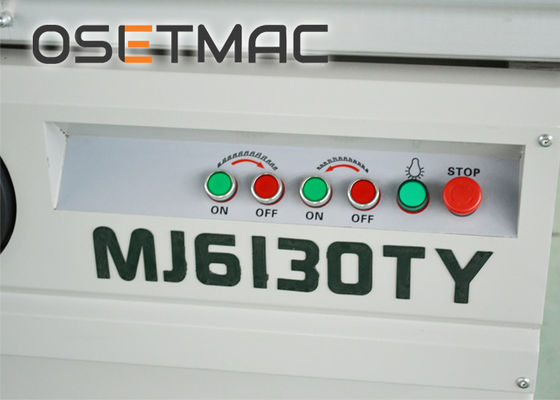

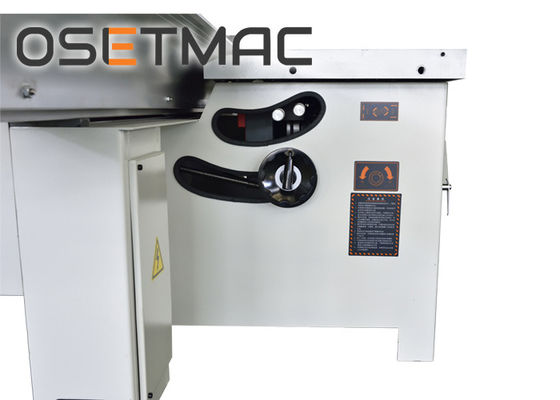

The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

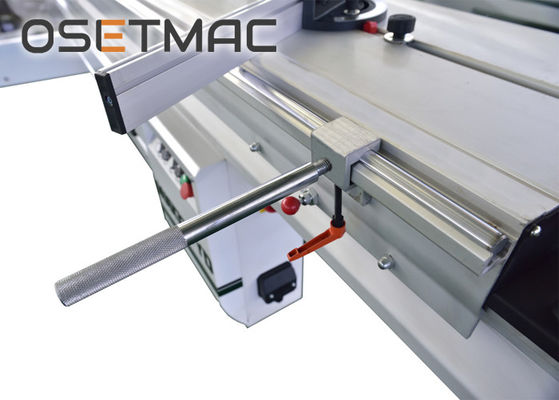

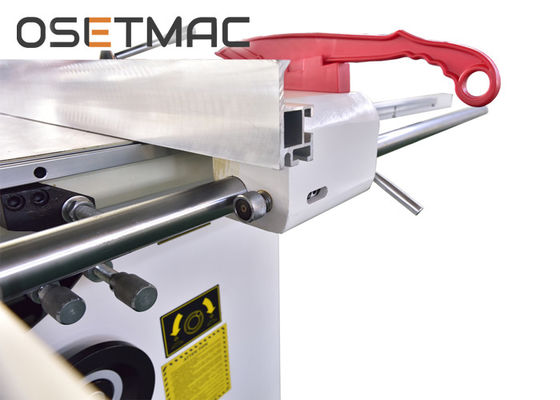

8.Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.
9.Movable Positioning Stops and Cross Cut Fence
The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.

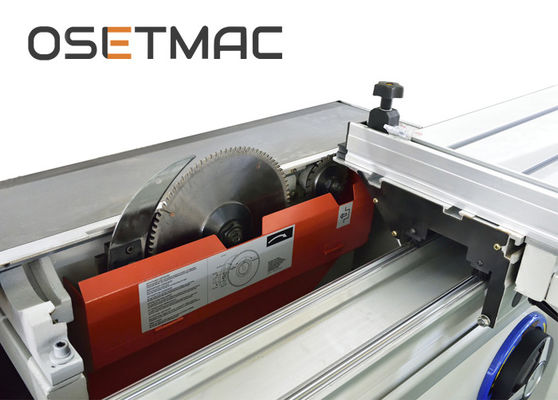

10.Orange Dust Hood and Riving Knife
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.
12.saw blade guard
1. Altendour-structure Dust Cover
2. Digital Readout
Note: The price in the price list does not including these optional devices.
More Trading Details
|Delivery Time||Negotiable (7-30DAYS)|
|FOB Port||Qingdao Port, China|
|Country of Origin||China|
Our Certificate :
We have CE and ISO certificate ,Think All our models can meet the quality level in your market .
Different outlook for different customer
|Dimension of sliding table||3000*375mm|
|Gross cut capacity||3000mm|
|Width of cut between saw blade and rip fence||1250mm|
|Saw blade diameter||300mm|
|Height of cut||80mm|
|Height of cut with saw blade at 45 degree||55MM|
|Speed of main saw spindle||4000/6000rpm(φ300/350)|
|Main spindle diameter||30mm|
|Tilting saw Blade||0-45°|
|Scoring Saw Blade diameter||120mm|
|Speed of scoring saw blade||8000r/min|
|Scoring spindle diameter||20mm|
|Gross Weight(with wooden package)||780kg|
