|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service||Voltage:||380v,220v/380v/415v/440v Or As Customer Request|
|Style:||Horizontal||Usage:||Woodworking, Wood Cutting, Table Saw , Wood Working, Cut Wood|
|Sliding Table Dimension(l*w*h):||1600*375mm||Power(w):||5.5+1.1kw/4+0.75kw|
sliding table circular saw machine,
sliding table panel saw

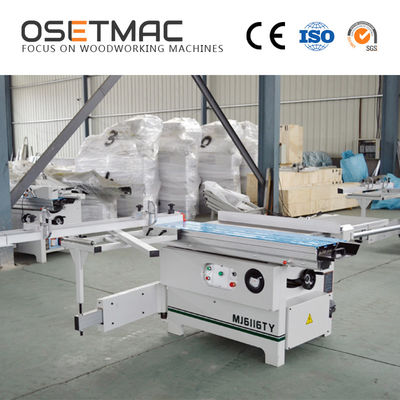

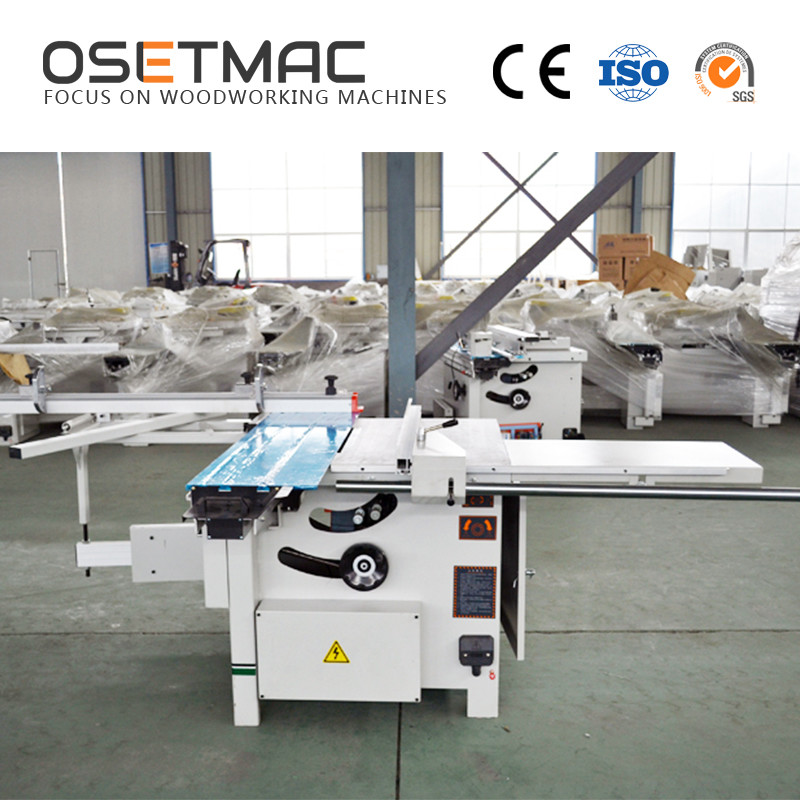

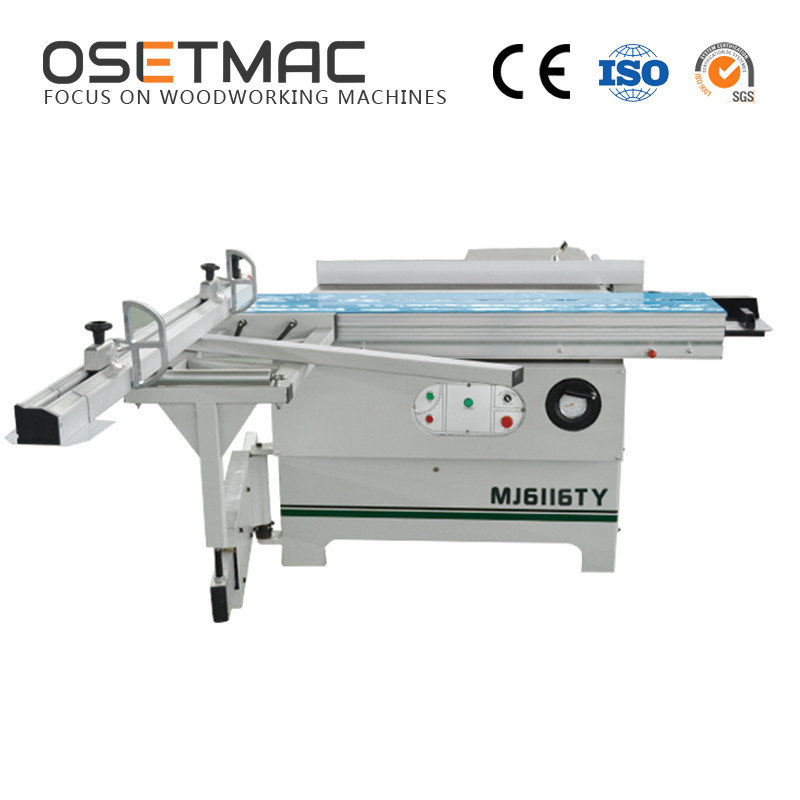

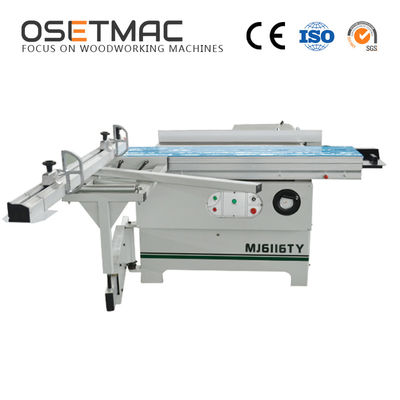

High Precision Woodwork Sliding Table Saw Furniture Making Machine MJ6116TY
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
4.Sliding Table Structure and Feature
Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere. The length of table is from 1300-4200mm according to your requirements.
5.Cast-iron Main Table and Extension Table
(sliding panel saw )
After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.
6.Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.
9.Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.
11.saw blade guard
1. Altendour-structure Dust Cover
2. Digital Readout
Note: The price in the price list does not including these optional devices.
More Trading Details
|Delivery Time||Negotiable (7-30DAYS)|
|FOB Port||Qingdao Port, China|
|Country of Origin||China|
Our Certificate :
We have CE and ISO certificate ,Think All our models can meet the quality level in your market .

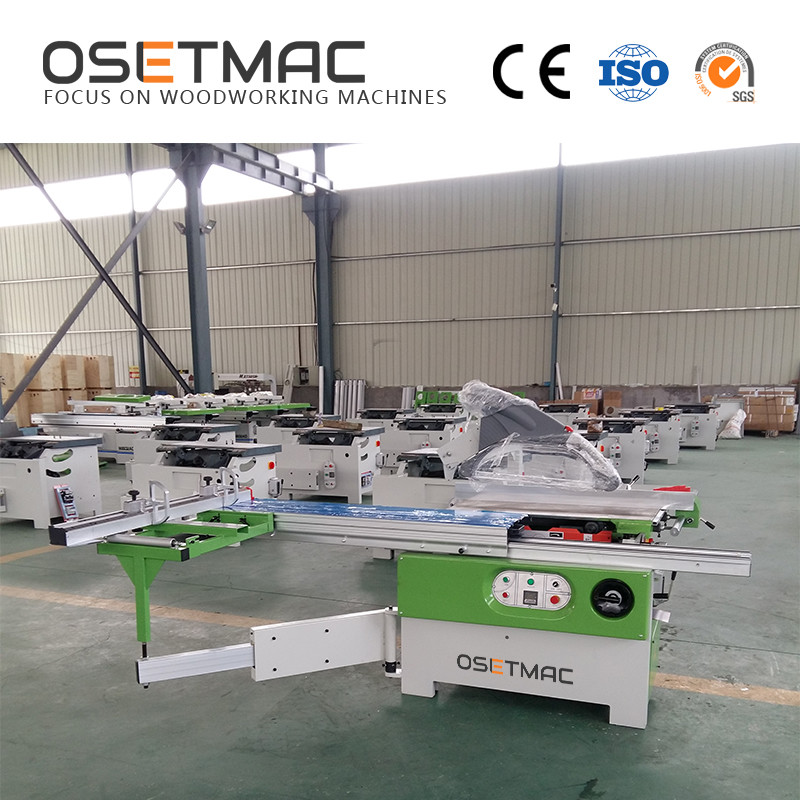

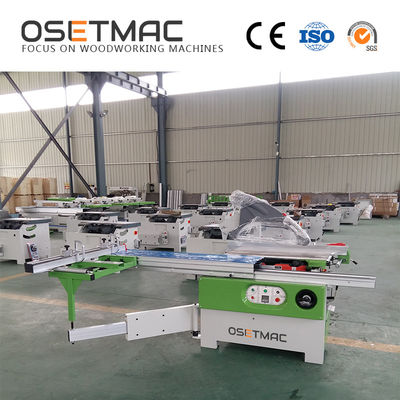

Different outlook for different customer
|Sliding Table Dimension||1600*375mm|
|Main saw Diameter||300mm|
|Main saw blade Diameter Maximum||315mm|
|Main saw spindle Diameter||30mm|
|Height of cut with saw blade at 90°||80mm(φ300)|
|Height of cut with saw blade at 45°||50mm(φ300)|
|Main Motor Power||4.0kw(5.5kw)|
|Speed of Main saw blade spindle||4000/6000RPM|
|Scoring saw blade diameter||120mm|
|Scoring saw spindle diameter||20mm|
|Main Blade Speed||4000/6000RPM|
|Scoring Saw Blade Diameter||120mm|
|Scoring Saw Bore Diameter||20mm|
|Speed of Scoring spindle /scoring saw blade||8000r/min|
|Width of cut between saw blade and rip fence||1250mm|
|Gross cut capacity||3100mm|
|Blade Tilting Adjustment/Tilting saw blade||0-45°|
|Main Saw Height Adjustment||Manual|
|Scoring Saw Height Adjustment||Manual|
|Dust System Outlet Diameter||100mm|
