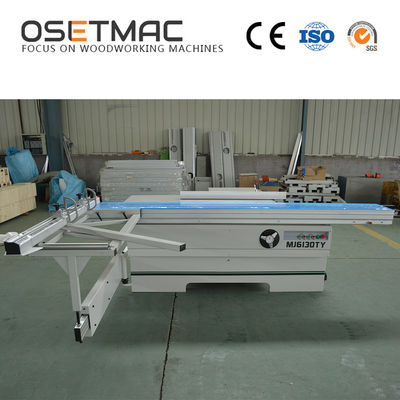

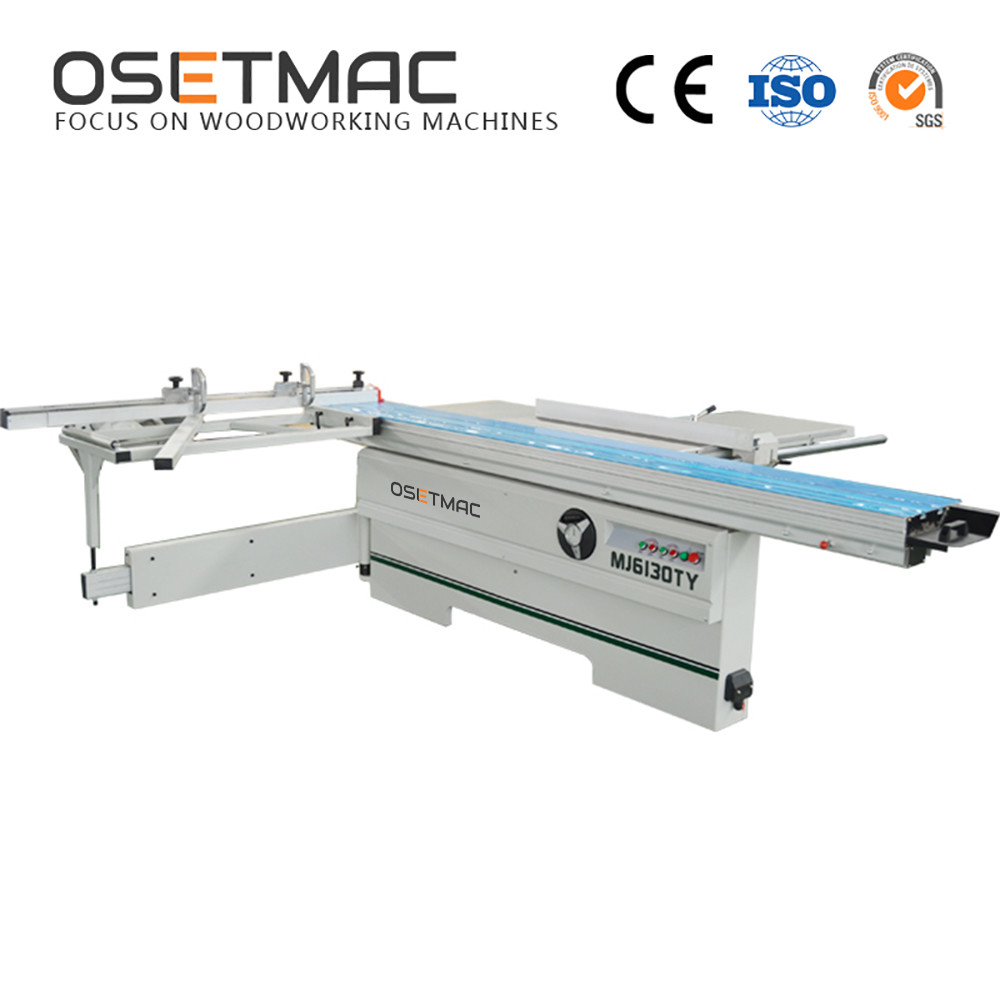

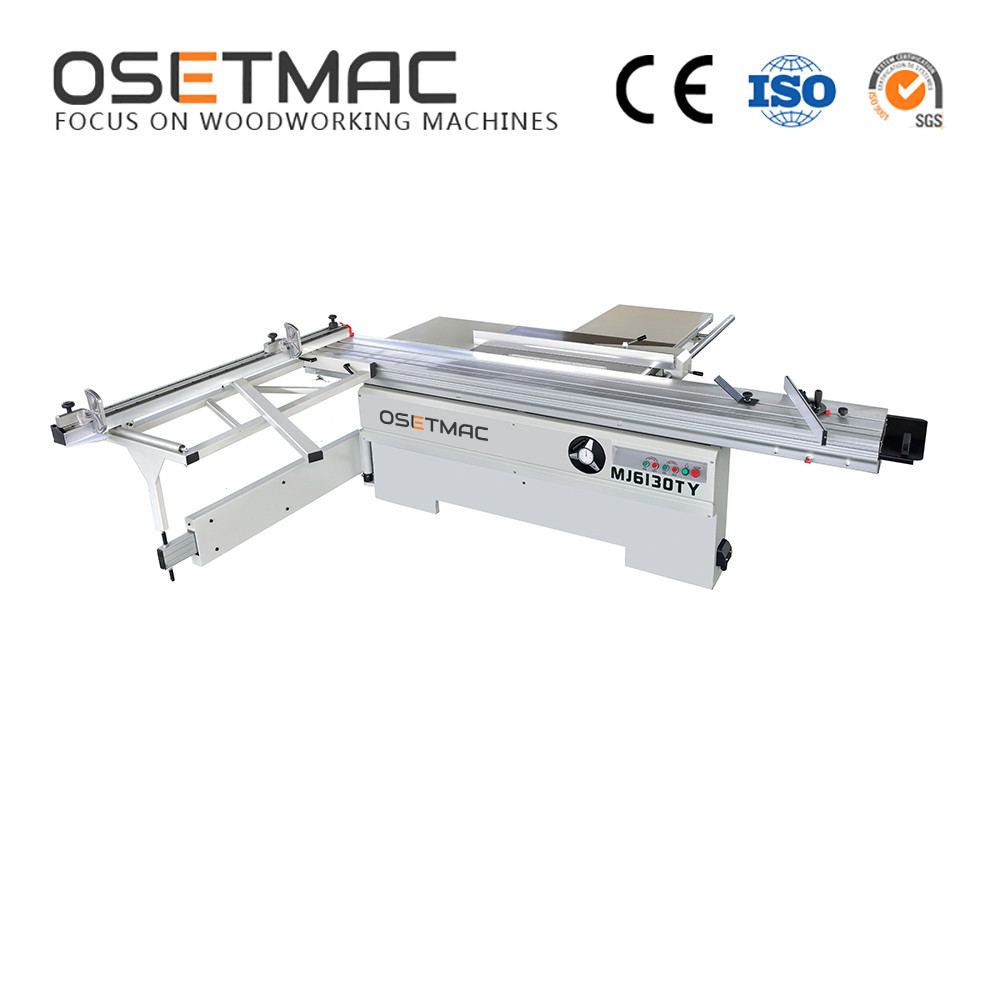

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw
Cut Wood Horizontal 380v Woodworking Sliding Panel Saw Cut Wood Horizontal 380v Woodworking Sliding Panel Saw Cut Wood Horizontal 380v Woodworking Sliding Panel Saw Cut Wood Horizontal 380v Woodworking Sliding Panel Saw Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Large Image :  Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Product Details:
Place of Origin: CHINA
Brand Name: OSET
Certification: ISO CE
Model Number: MJ6130TY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-15workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sets per year

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Description
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service
Voltage: 380v,220v/380v/415v/440v Or As Customer Request Style: Horizontal ,Vertical
Usage: Woodworking, Wood Cutting, Table Saw , Wood Working, Cut Wood Gross Cut Capacity: 3000mm
High Light:

sliding table circular saw machine

,

sliding table panel saw

Industrial Woodworking Sliding Panel Saw Cut Wood MJ6132TY



Cut Wood Industrial Commercial Sliding Panel Saw With Scoring Blade MJ6130TY



Cut wood Industrial Commercial Sliding Panel Saw With scoring blade for furniture & cutting panel Woodworking machine



Inner Structure

This machine uses linear guideway to lift the saw blade which is more smooth and more

durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

guarantees the compressive strength and the high precision of the inter-machine, which

can also reduce the shock of the machine

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

2.Main Saw and Scoring Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

3.SKF Bearing of Sliding panel saw

All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

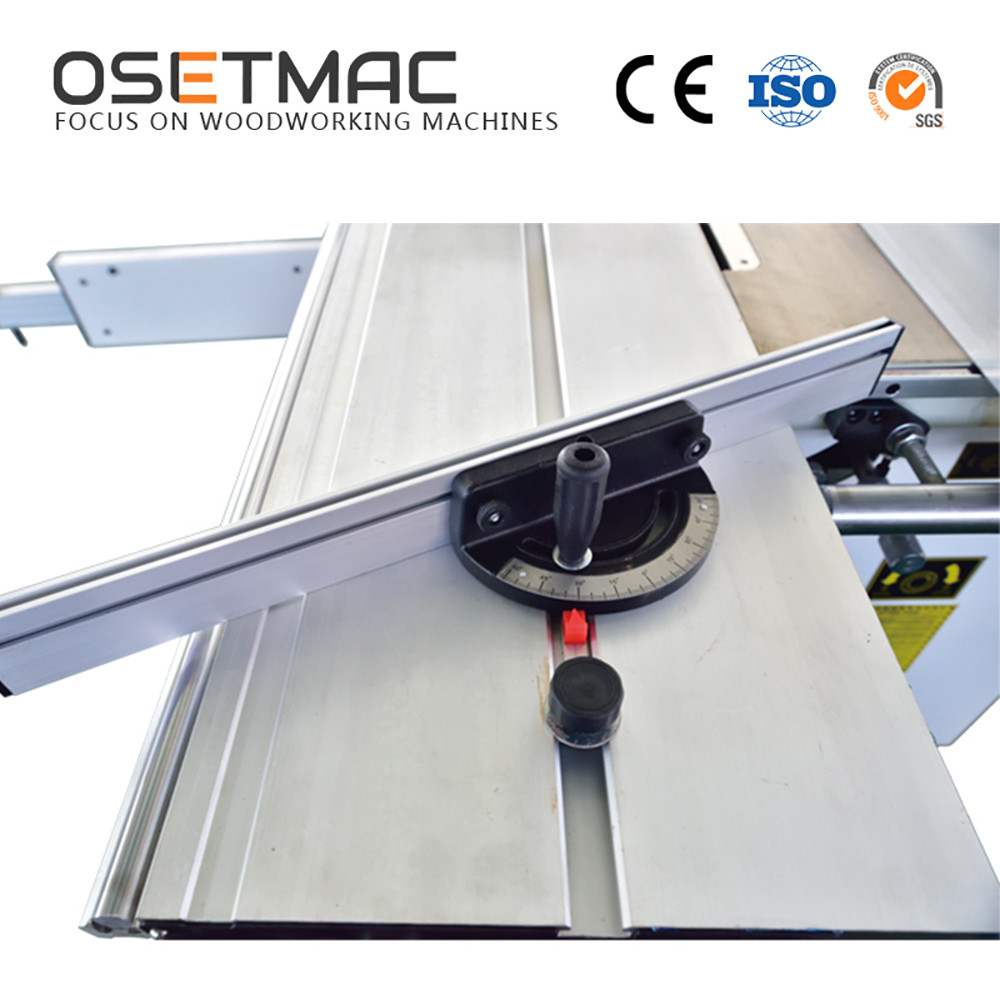

4.​Sliding Table Structure and Feature

Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

Cut Wood Horizontal 380v Woodworking Sliding Panel SawCut Wood Horizontal 380v Woodworking Sliding Panel Saw

5.Cast-iron Main Table and Extension Table(sliding panel saw )

After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

6.Supporting Arm and Cross Cut Table

Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

7.controlling board

The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw



8.Rip Fence Fine Adjustment

Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

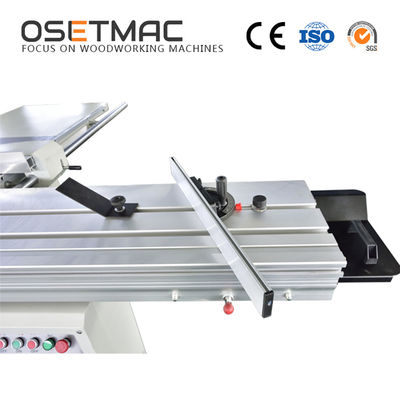

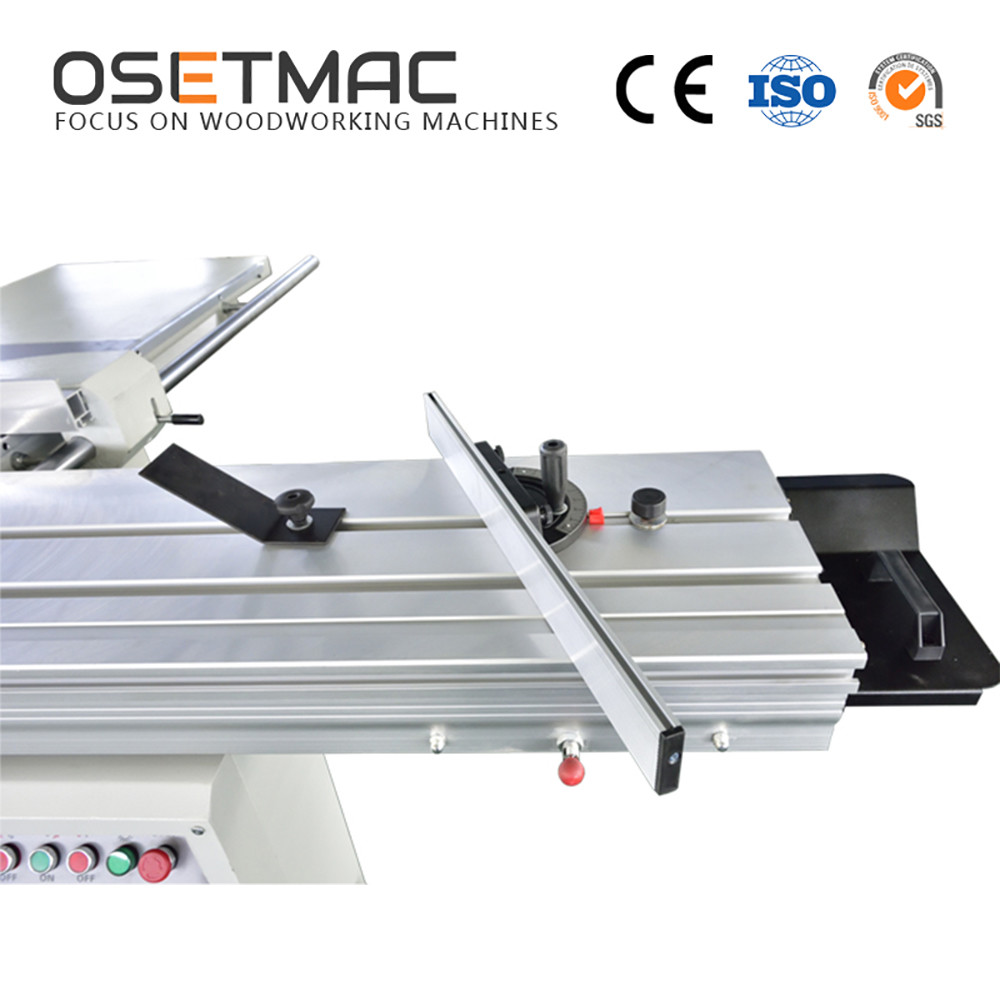

9.Movable Positioning Stops and Cross Cut Fence

The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

10.​Orange Dust Hood and Riving Knife

The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

11.hand swage

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

12.saw blade guard

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

                                                                         Optional Device

1. Altendour-structure Dust Cover

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

2. Digital Readout

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw



Note: The price in the price list does not including these optional devices.



More Trading Details

Model MJ6130TY
Payment Terms T/T
Delivery Time Negotiable (7-30DAYS)
FOB Port Qingdao Port, China
Country of Origin China
HS CODE 8465910000
Certificate CE ISO



Our Certificate :

We have CE and ISO certificate ,Think All our models can meet the quality level in your market .

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw



Different outlook for different customer

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Our Warehouse

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Applications:



This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Specifications:

Dimension of sliding table  3000*375mm
Gross cut capacity 3000mm
Width of cut between saw blade and rip fence 1250mm
Saw blade diameter  300mm
Height of cut  80mm
Height of cut with saw blade at 45 degree  55MM
Speed of main saw spindle  4000/6000rpm(φ300/350)
Main spindle diameter 30mm
Tilting saw Blade  0-45°
Main Motor  4kw(5.5kw)
Scoring Saw Blade diameter 120mm
Speed of scoring saw blade  8000r/min
Scoring spindle diameter 20mm
Scoring motor  0.75kw
Net Weight 680kg
Gross Weight(with wooden package) 780kg
Overall Dimensions 3050*3150*900mm

Warranty
1 year

Competitive Advantage:

  1. It can load 24 sets in one 40’ GP Container and 10 sets in one 20 GP container.
  2. We can change the outlook of the machine according to your requirement.
  3. Any size of the sliding table can be produced and the longest customized size is 4200mm.
  4. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

Packing and Loading container

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

Cut Wood Horizontal 380v Woodworking Sliding Panel Saw
