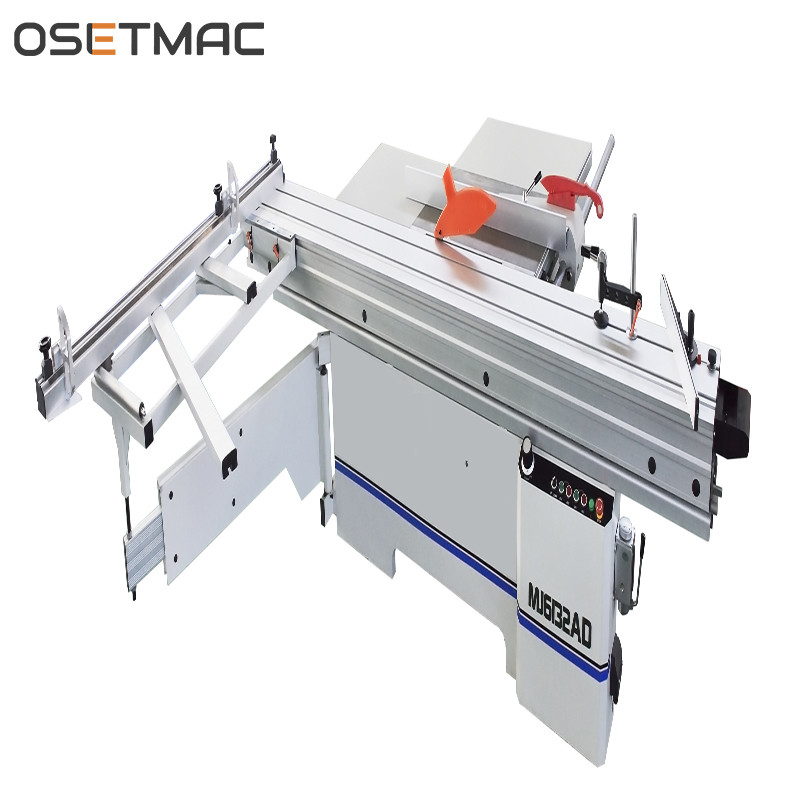

Wood Carpentry 3200mm Woodworking Sliding Table Saw

Wood Carpentry 3200mm Woodworking Sliding Table Saw
Wood Carpentry 3200mm Woodworking Sliding Table Saw Wood Carpentry 3200mm Woodworking Sliding Table Saw

Large Image :  Wood Carpentry 3200mm Woodworking Sliding Table Saw

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: ISO CE
Model Number: MJ6132AD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden case or as request
Delivery Time: 5-15workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sets per year

Wood Carpentry 3200mm Woodworking Sliding Table Saw

Description
Dimensions(l*w*h): 3200*1100*1200mm Name: MJ6132AD Sliding Table Panel Saw Machine For Wood Working
Gross Cut Capacity: 3200mm Wrranty: 1 Year
After-sales Service Provided: Online Support ,video Techical Support ,Field Maintenance And Repair Service Voltage: 220v/380v/415v/440v Or As Request
High Light:

sliding table circular saw machine

,

sliding table panel saw

 Industrial High Precision Woodworking machine MJ6132AD Sliding Panel/table Saw for cutting wood

 Details Show



1.Electrical lifting of main saw blade, and the control board is easy to operate

Wood Carpentry 3200mm Woodworking Sliding Table Saw

Wood Carpentry 3200mm Woodworking Sliding Table Saw

2.Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass

plate and solid wood and other wood structure similar to the hardness of the plate.

Wood Carpentry 3200mm Woodworking Sliding Table Saw

3. Henghong electric motor with Aluminum shell with top qualtiy .

  • This machine uses linear guideway to lift the saw blade which is more smooth and more

    durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

    guarantees the compressive strength and the high precision of the inter-machine, which

    can also reduce the shock of the machine

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • 4.HAORUN spindle of blade .

  • After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • 5.All bearings in this machine is SKF Bearings.

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • 6.1.9m Large European guiding ruler

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  • 7. European dust collector can be connected with this machine.

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

  •  Main Technical patameter

  •

    Sliding Table Dimension 3200*380mm
    Cast Iron Table Dimension 910*620*80mm
    Length Extension Table 905*680*70mm
    Width Cutting Extension Table 640*680*70mm
    Main Saw Diameter 300mm
    Main Saw Blade Diameter Maximum 350mm
    Main Saw Bore Diameter 30mm
    Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
    Max. Cutting Height With Bade at 45 50/70mm(φ300/350)
    Main Motor Power 5.5KW
    Main Blade Speed 4000/6000RPM
    Scorning Saw Blade Diameter 120mm
    Scorning Saw Bore Diameter 20mm
    Scorning Saw Motor Power 1.1KW
    Scorning Blade Speed 8000RPM
    Max. Cutting Width 1250mm
    Max. Cutting Length 3100mm
    Blade Tilting Adjustment 90°
    Main Saw Height Adjustment Electric
    Scorning Saw Height Adjustment Manual
    Dust Guard Outlet Diameter 80mm
    Dust System Outlet Diameter 100mm

    Wood Packing Dimensions

    Main Crate and Sliding table

    2250*1150*1100mm

    3400*450*290mm

    Installation Dimensions 3250*3450*900mm
    Gross Weight 790KG
  • Certificate :

  • Wood Carpentry 3200mm Woodworking Sliding Table Saw

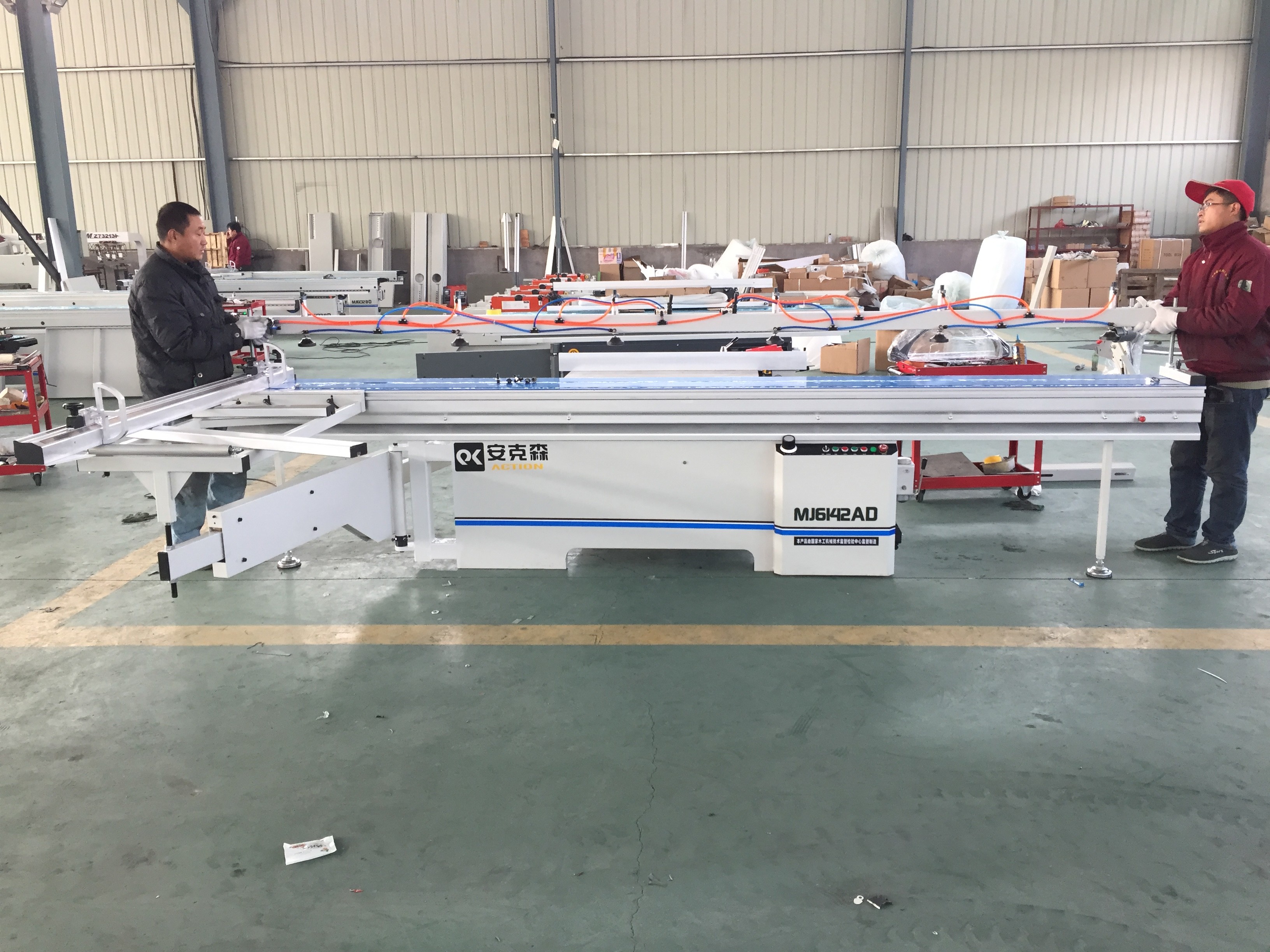

  • Warehouse and Loading Container :
