Automatic Wood Sanding Machine Woodworking Sanding Machines 8S

  • Automatic Wood Sanding Machine Woodworking Sanding Machines 8S
  • Automatic Wood Sanding Machine Woodworking Sanding Machines 8S
  • Automatic Wood Sanding Machine Woodworking Sanding Machines 8S
  • Automatic Wood Sanding Machine Woodworking Sanding Machines 8S
  • Automatic Wood Sanding Machine Woodworking Sanding Machines 8S
Place of Origin CHINA
Brand Name OSETMAC
Certification CE ISO
Model Number DT1000-8S(Z2Y2Y2H2)
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details wooden box or as request
Delivery Time 5-15days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30000set per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Roller Speed Frequency Control
Working Length ≥350mm Power 13.55kw
Max Working Width 1000mm Working Thickness 10-160mm
Automatic Grade Automatic
High Light

Automatic 1000mm Wood Sanding Machine

,

160mm sandpaper machine for wood

,

ISO powermatic wide belt sander
Leave a Message
Product Description

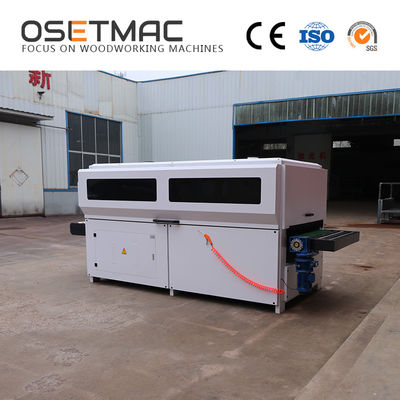

High Quality Automatic Wood Sanding Machine Woodworking Sanding Machines 8S

Brush Sanding Machine For Polishing wood DT1000-8S(Z2Y2Y2H2)



Description:

Automatic Wood Brush Sanding Machine DT1000-6S is mainly for the grinding or sanding for door, cabinet , plywood,MDF and Other panel furniture or .it is widely applier to the board with primer ,PE ,PU,UV coating because of its good polishing effect .

Inner Structure Sketch:

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 0

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 1

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 2



Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 3



Advantage:

----A variety of arrangements of the roller , it can be customized according to the different polishing requirements .OEM&ODM are available .

----Imported high-quality sandpaper,Japan RIKEN brand sandpaper and Germany sandpaper are available.

----Fuselage platform through gantry milling processing, improve the service life of linear guide, workpiece polishing precision is higher.

----The machine is equipped with a frequency converter device, which can adjust different speed according to the hardness of polishing materials.

----The machine is equipped with pure copper core national standard motor and imported electrical parts to ensure the high quality and high efficiency of the machine.

----High work efficiency , every minute to grind a door , save time and labor .

Main Technical Parameter :

Specification Z2Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 13.55kw
Packing Dimension 4100*1730*1850mm
Net Weight 2800KG
Wooden Case Dimension 4700*1730*1850mm

























Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 4

Loading Container:

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 5

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 6Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 7

Other Similar Models:



DT1000-6S(Z2Y2H2)

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 8



Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Total Power 11.65kw
Packing Dimension 3100*1760*1890mm
Net Weight 1500kg
Wooden Case Demension 3180*1830*2150mm
Wooden case Weight 180kg

























DT1000-6S(Y2H2H2)

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 9



Main Technical Parameter :

Specification Y2H2H2
Max Working Width 1000mm
 Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed  5-20m/min
Wooden Case Weight  170kg
Total Power 12.14kw
Packing Dimension  2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension                     2890*1830*2150mm































DT1000-6S(Y2Y2H2)

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 10

Main Technical Parameter :

Specification Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 170kg
Total Power 9.6kw
Packing Dimension 2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension 2890*1830*2150mm



























DT1000-6SY:

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 11





Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm /1300mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Total Power 11.65kw
Packing Dimension 3200*2100*1750mm
Net Weight 2400KG
Wooden Case Dimension                 3200*2100*1750mm

























DT1000-8S(Z2Y2H2H2):

Automatic Wood Sanding Machine Woodworking Sanding Machines 8S 12

Main Technical Parameter:

Specification Z2Y2H2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 16.45kw
Packing Dimension 4130*1800*2150mm
Net Weight 2800KG
Wooden Case Dimension 4550*1730*1850mm
