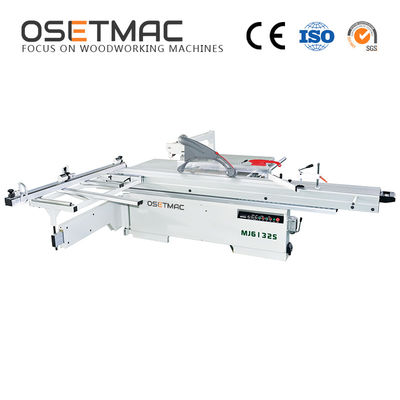

Aluminum Shell Woodworking Sliding Panel Saw Machine

Place of Origin CHINA
Brand Name OSET
Certification ISO CE
Model Number MJ6132S
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details wooden case
Delivery Time 5-15workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 5000sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Scoring Saw Power 1.1kw After-sales Service Provided Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service
Voltage 220v/380v/415v/440v Or As Customer Request Style Horizontal
Main Motor Power 5.5kw Dimension(l*w*h) 3400*1200*1200mm
High Light

lower noise sliding panel saw machine

,

Aluminum shell sliding panel saw machine

,

220v Horizontal panel table saw

Leave a Message
Product Description

Horizontal High Precision Woodworking Sliding Panel Saw/Furniture Making Machine

Precision Sliding Table Saw Machine with Electric Lifting and Digital Readout For Furniture & Cutting wood MJ6132S



Inner Structure

This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compressive strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

Aluminum Shell Woodworking Sliding Panel Saw Machine 0

Aluminum Shell Woodworking Sliding Panel Saw Machine 1

Aluminum Shell Woodworking Sliding Panel Saw Machine 2

2.Main Saw and Scoring Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

Aluminum Shell Woodworking Sliding Panel Saw Machine 3

Aluminum Shell Woodworking Sliding Panel Saw Machine 4

3.SKF Bearing of Sliding panel saw

All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

Aluminum Shell Woodworking Sliding Panel Saw Machine 5

4.​Sliding Table Structure and Feature

Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

Aluminum Shell Woodworking Sliding Panel Saw Machine 6Aluminum Shell Woodworking Sliding Panel Saw Machine 7

5.Cast-iron Main Table and Broaden Extension Table

(sliding panel saw )

After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy. Broaden extension table makes the operation more convenient.Aluminum Shell Woodworking Sliding Panel Saw Machine 8

Aluminum Shell Woodworking Sliding Panel Saw Machine 9

6.Supporting Arm and Cross Cut Table

Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading.

Aluminum Shell Woodworking Sliding Panel Saw Machine 10Aluminum Shell Woodworking Sliding Panel Saw Machine 11



7.Movable Positioning Stops and Cross Cut Fence

 The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability. There are two types for your choice.

Aluminum Shell Woodworking Sliding Panel Saw Machine 12

Aluminum Shell Woodworking Sliding Panel Saw Machine 13



8.Altendour-structure Dust Cover

This device can make sure better dust collection effect, which is suitable for main saw blade diameter 400mm and maximum cutting height 120mm. It’s position is flexible, and it’s very safe for the operator.

Aluminum Shell Woodworking Sliding Panel Saw Machine 14

Aluminum Shell Woodworking Sliding Panel Saw Machine 15

9.Controlling Board

 main saw blade and scoring saw blade are both electric control which makes it easy to operate. The angle tilting adjustment is also electric lifting with digital readout.

Aluminum Shell Woodworking Sliding Panel Saw Machine 16

10.​Rip Fence Fine Adjustment

Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust with digital readout.

Aluminum Shell Woodworking Sliding Panel Saw Machine 17

11.Digital Readout

Aluminum Shell Woodworking Sliding Panel Saw Machine 18

Aluminum Shell Woodworking Sliding Panel Saw Machine 19

Aluminum Shell Woodworking Sliding Panel Saw Machine 20

12.Saw Blade Guard and Hand Swage

Aluminum Shell Woodworking Sliding Panel Saw Machine 21

Aluminum Shell Woodworking Sliding Panel Saw Machine 22

                                                                       More Trading Details

Model MJ6132S
Payment Terms T/T
Delivery Time Negotiable (7-30DAYS)
FOB Port Qingdao Port, China
Country of Origin China
HS CODE 8465910000
Certificate CE ISO



Our Certificate :

We have CE and ISO certificate ,Think All our models can meet the quality level in your market .

Aluminum Shell Woodworking Sliding Panel Saw Machine 23



Different outlook for different customer

Aluminum Shell Woodworking Sliding Panel Saw Machine 24

Our Warehouse

Aluminum Shell Woodworking Sliding Panel Saw Machine 25

Aluminum Shell Woodworking Sliding Panel Saw Machine 26

Aluminum Shell Woodworking Sliding Panel Saw Machine 27

Aluminum Shell Woodworking Sliding Panel Saw Machine 28

Aluminum Shell Woodworking Sliding Panel Saw Machine 29

Applications:



This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Specifications:

Sliding Table Dimension 3200*380mm
Cast Iron Table Dimension 910*620*80mm
length extension table 905*680*70mm
width cutting extension table 640*680*70mm
Saw Blade Diameter 300mm

Max Saw Blade Diameter

350mm
Main Saw Spindle Diameter 30mm
Height of cut With Saw Blade at 90° 80/100mm(φ300/350)
 Height of Cut With Saw Blade at 45° 50/70mm(φ300/350)
Main Motor 5.5KW
Speed of Main Blade  4000/6000RPM
Scorning Saw Blade Diameter 120mm
Scorning Saw Spindle Diameter 20mm
Scoring Motor 1.1KW
Speed of Scorning Saw Blade 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3100mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Electric
Scorning Saw Height Adjustment Electric
Angle Tilting Adjustment Electric
Dust Guard Outlet Diameter 80mm
Dust System Outlet Diameter 100mm

Wood Packing Dimension

Main Crate and Sliding table

2250*1200*1100mm

3400*450*290mm

Overall Dimension 3250*3450*900mm
G. W. 900KG






Packing and Loading container
