|Scoring Saw Power:||1.1kw||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service|
|Voltage:||220v/380v/415v/440v Or As Customer Request||Style:||Horizontal|
|Main Motor Power:||5.5kw||Dimension(l*w*h):||3400*1200*1200mm|
3400*1200*1200mm table panel saw,
Digital Readout sliding table saw machine,
380v sliding table saw machine

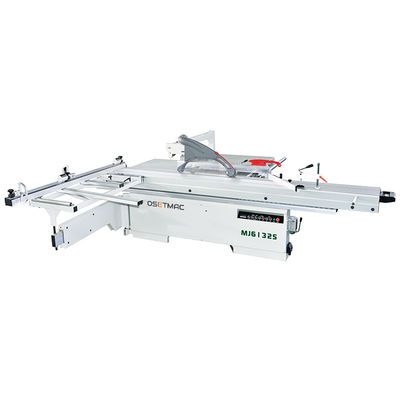

High Precision Woodworking Machinery Sliding Panel Saw MJ6132S
Factory supply Top Quality Woodworking Sliding Panel Saw With Electric Digital Readout MJ6132s
Precision Sliding Table Saw Machine with Electric Lifting and Digital Readout For Furniture & Cutting wood MJ6132S
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
3.SKF Bearing of Sliding panel saw
All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.
4.Sliding Table Structure and Feature
Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.
5.Cast-iron Main Table and Broaden Extension Table
(sliding panel saw )
After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy. Broaden extension table makes the operation more convenient.
6.Supporting Arm and Cross Cut Table
Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading.
8. Altendour-structure Dust Cover
This device can make sure better dust collection effect, which is suitable for main saw blade diameter 400mm and maximum cutting height 120mm. It’s position is flexible, and it’s very safe for the operator.
main saw blade and scoring saw blade are both electric control which makes it easy to operate. The angle tilting adjustment is also electric lifting with digital readout.
10.Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust with digital readout.
12.Saw Blade Guard and Hand Swage
More Trading Details
|Delivery Time||Negotiable (7-30DAYS)|
|FOB Port||Qingdao Port, China|
|Country of Origin||China|
Our Certificate :
We have CE and ISO certificate ,Think All our models can meet the quality level in your market .
Different outlook for different customer
Contact Person: Lisa Mou
