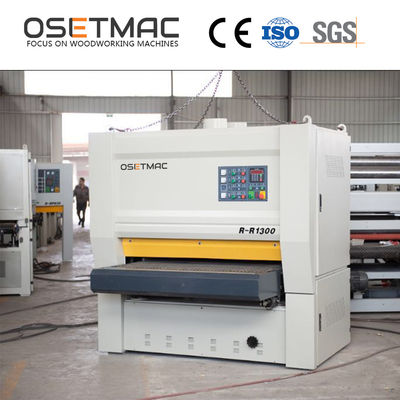

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors

Place of Origin CHINA
Brand Name OSETMAC
Certification CE, ISO
Model Number R-R-R1300
Minimum Order Quantity 1 SET
Price USD10000-USD20000
Packaging Details Nude Cargo
Delivery Time 7-15 working days
Payment Terms L/C, L/C, T/T, Western Union
Supply Ability 2000 SET/YEAR

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Working Width 1300mm Max Working Thickness 160mm
Min Working Length 60mm Total Power 78.55KW
Working Pressure 0.6Mpa Dimension 2800*2700*2200mm
Weight 4500KGS Warranty 12 Months
Voltage 380V/50HZ/3PH Condition New
High Light

1300mm Belt Sanding Machine

,

CE Woodworking Belt Sanding Machine

,

0.6Mpa wood sanding machine

Leave a Message
Product Description

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 0OSETMAC Woodworking Machinery Belt Sanding Machine R-R-R1300 wIth Planner for Doors







Wood Belt Sanding Machine R-R-R1300 Specificaitons



Max Working Width 1300mm
Max Working Thickness 160mm
Min Working Length ≥500mm
Roller Speed Inverter Control
Conveyor Speed 6-30m/min
First Roller Power 22KW
Second Roller Power 30KW
Third Roller Power 22KW
Conveyor Motor 4.0KW
Lifting Motor 0.55KW
Total Power 78.55KW
First Roller Diameter 180mm
Second Roller Diameter 240mm
Third Roller Diameter 240mm
Sandpaper Size 1330*2200mm
Working Pressure 0.6Mpa
Dimension 2800*2700*2200mm
Weight 4500KGS

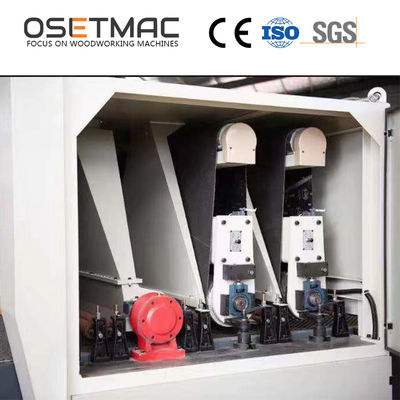

Woodworking Machinery Belt Sanding Machine R-R-R1300 Inner Structure

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 1





Wood Belt Sander R-R-R1300 Description



1.This sanding machine is suitable for the sanding or grinding of doors, cabinet, plywood, MDF and other panel furniture and solid wood furniture.


2. Imported belt makes the sanding machine more durable


3. Imported cutter roller, thicknes roller and soft rubber rollers.


4. The casting retaining device can avoid the rebound of the sanding materials.


5. The sandpaper grades are from #60-#600


6. Seperated structure of beam tube and beam seat makes it more convenient to maintain.


7. High precision and easy-to-use features makes your work more efficient.


8. This machine is time-saving, labor-saving, and manpower- saving.


9.Support Customization Service



R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 2

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 3

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 4

R-R-R1300 0.6Mpa Woodworking Belt Sanding Machine For Doors 5
