MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S

Place of Origin CHINA
Brand Name OSETMAC
Certification CE, ISO
Model Number DT1300-6S
Minimum Order Quantity 1 set
Price 8200-12800
Packaging Details wooden case
Delivery Time 15-35 days
Payment Terms L/C, T/T
Supply Ability 3000set/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Warranty 1 Year Automatic Grade Automatic
Condition New Voltage 380V 50HZ
Power(w) According To The Width After-sales Service Provided Video Technical Support
Color Customized Width 1300mm
Origin China
High Light

MDF doors Woodworking Sanding Machines

,

DT1300-6S Woodworking Sanding Machines

,

MDF industrial wood sanding machine

Leave a Message
Product Description

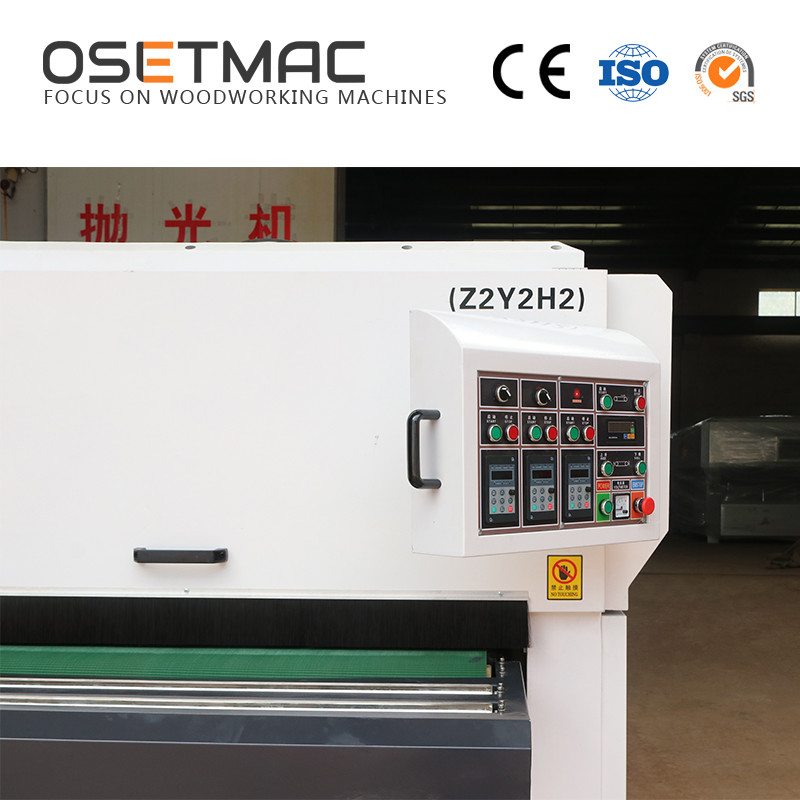

OSETMAC Woodworking Machinery Brush Sanding Machine polishing machine DT1300-6S For MDF doors



MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 0

MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 1

OSETMAC BRUSH SANDING MACHINE DT1300-6S DESCRIPTION

OSETMAC brush sanding machine is suitable for the sanding or grinding of doors, cabinet, plywood, MDF

and other panel furniture and solid wood furniture. It is widely applied to the board with primer, PE, PU, UV

coating etc.
1. RIKEN sandpaper from Japan
2. Inner Structure:Z2Y2H2 ( 2 units of small rollers, 2 units of disc brushes and 2 units of long brush rollers which can oscillate in different direction to make sure the perfect polishing effect.)
3. 9 disc brushes with quick-change connectors
4. The sandpaper grades are from #120-#600
5. The speed of rollers are adjustable so that the workers can adjust the speed according to different materials.
6. High precision and easy-to-use features makes your work more efficient.
7. This machine is time-saving, labor-saving, and manpower- saving.
8. Different Abrasive Materials for your choice
9.Support Customization Service





MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 2



OSETMAC BRUSH SANDING MACHINE DT1300-6S SPECIFICATIONS



Max Working Width 1300mm
Max Working Thickness 10-160mm
Min Working Length ≥350mm
Roller Speed Inverter Control
Conveyor Speed 5-20m/min
Long Roller Motor 2.2KW×2
Conveyor Motor 1.5KW
Lifting Motor 0.55KW
Disc Motor 1.5KW
Disc Swing Motor 0.55KW
Small Roller Motor 1.5KW*2
Small Roller Swing Motor 0.55KW
Total Power 12.05KW
N. W. 1900KG
Packing Dimension 3180*2130*2150mm
Using Dimension 3650*2050*2160mm



MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 3

MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 4



OSETMAC BRUSH SANDING MACHINE FACTORY SHOW

MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 5

MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 6

MDF Doors Brush Woodworking Sanding Machines Polishing Machine DT1300-6S 7
