Product Details:
|
| Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support |
|---|---|---|---|
| Voltage: | 220V Single Phase | Weight: | 315KG |
| Usage: | Woodworking,Wood Cutting | Power(w): | 3KW |
| Condition: | New | Table Size: | 1600mm |
| Tilting Saw Blade: | 0-45° | ||
| High Light: | Mini Woodworking Sliding Table Saw,Woodworking Sliding Table Saw 1600mm,MJ6116 Sliding Panel Saw Machine |
||

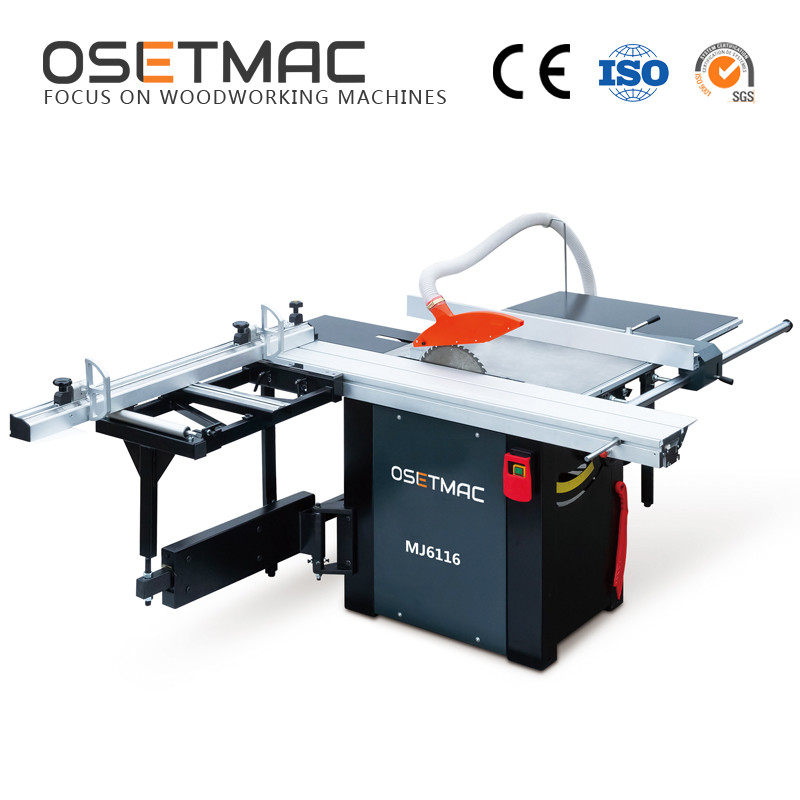

OSETMAC Mini Sliding Table Saw MJ6116 Panel Saw Circular Saw Supplier

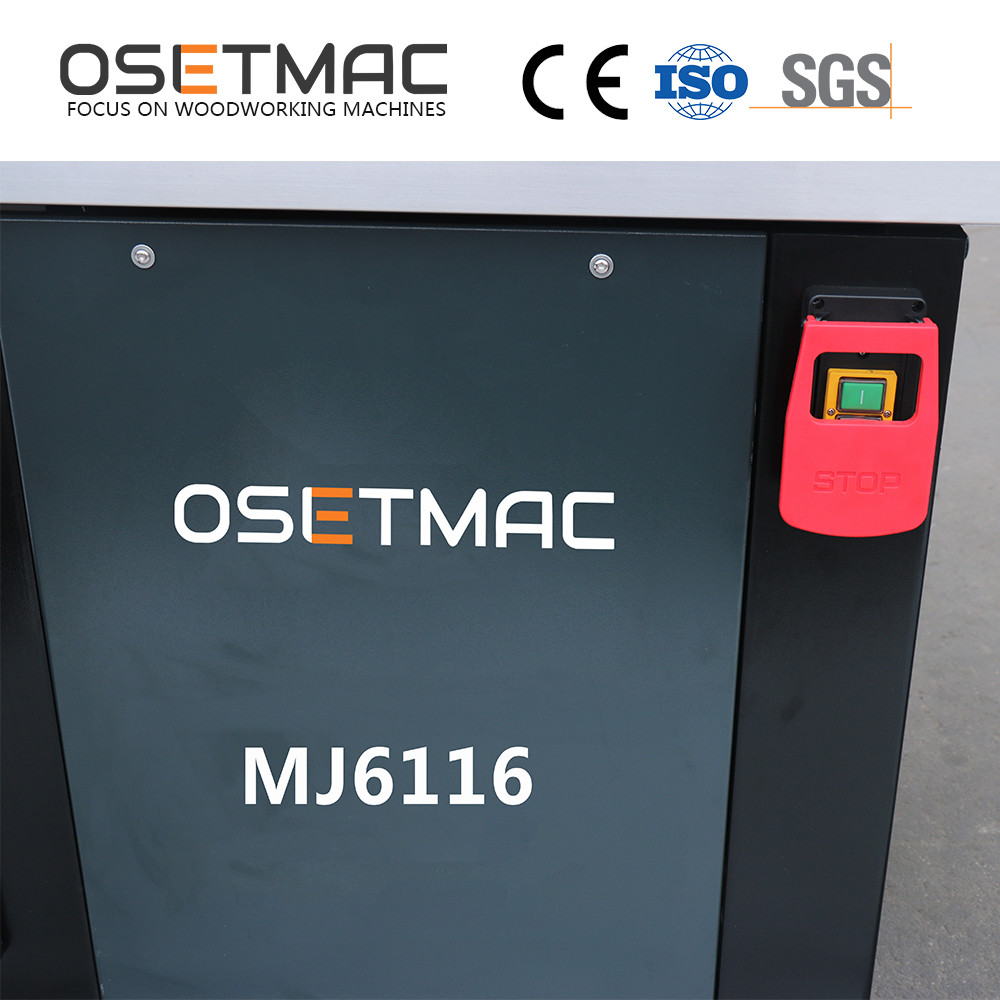

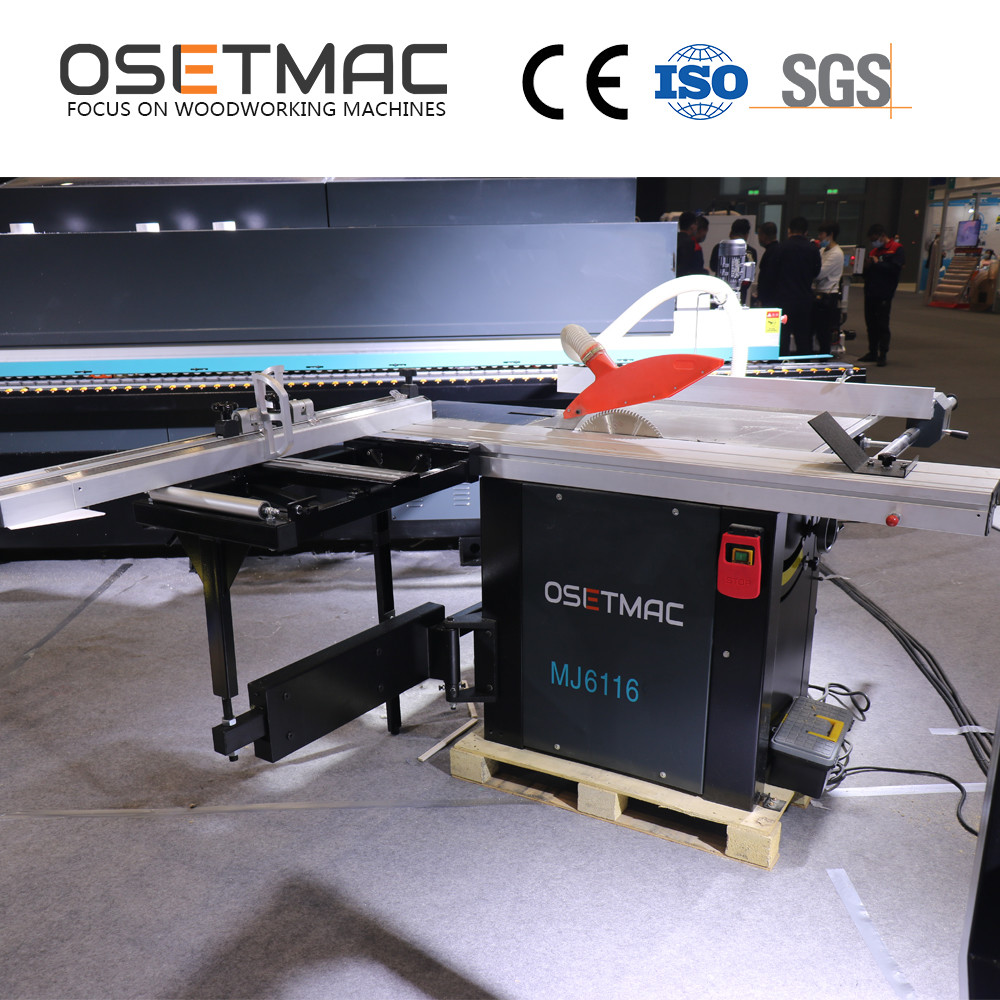

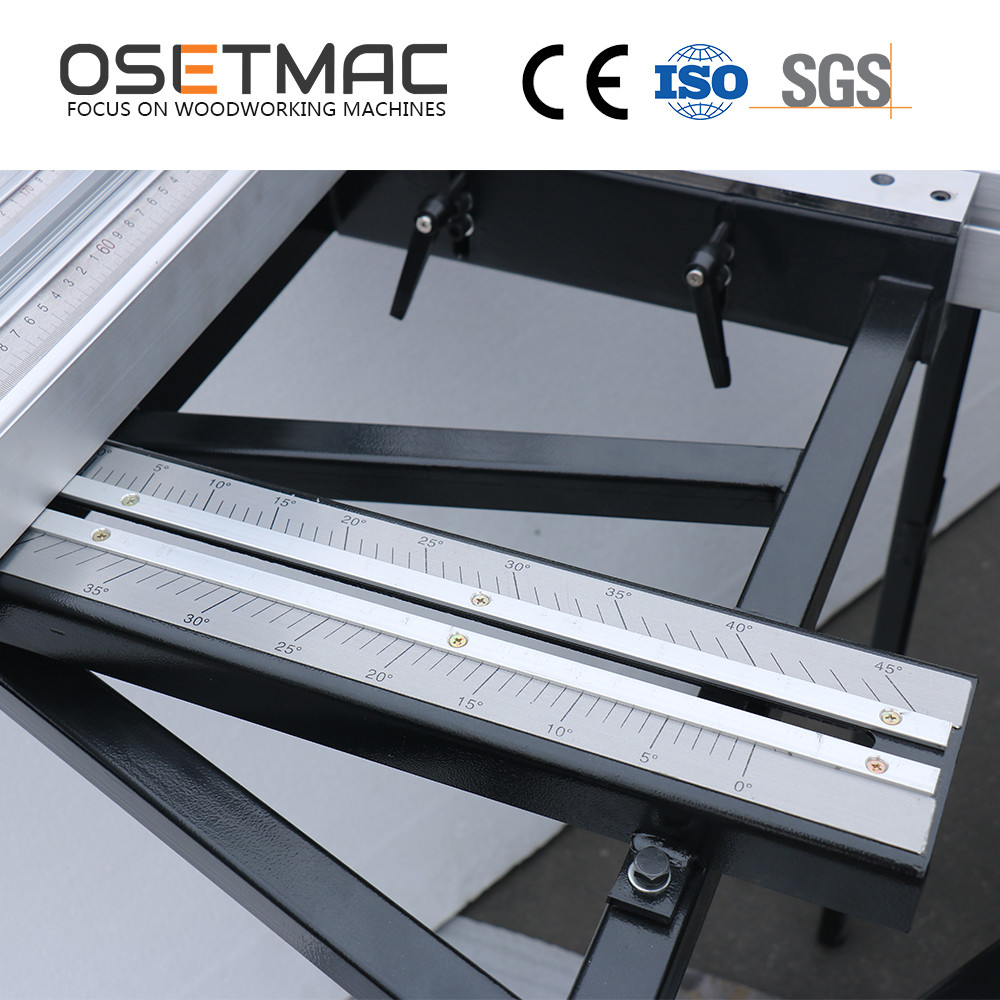

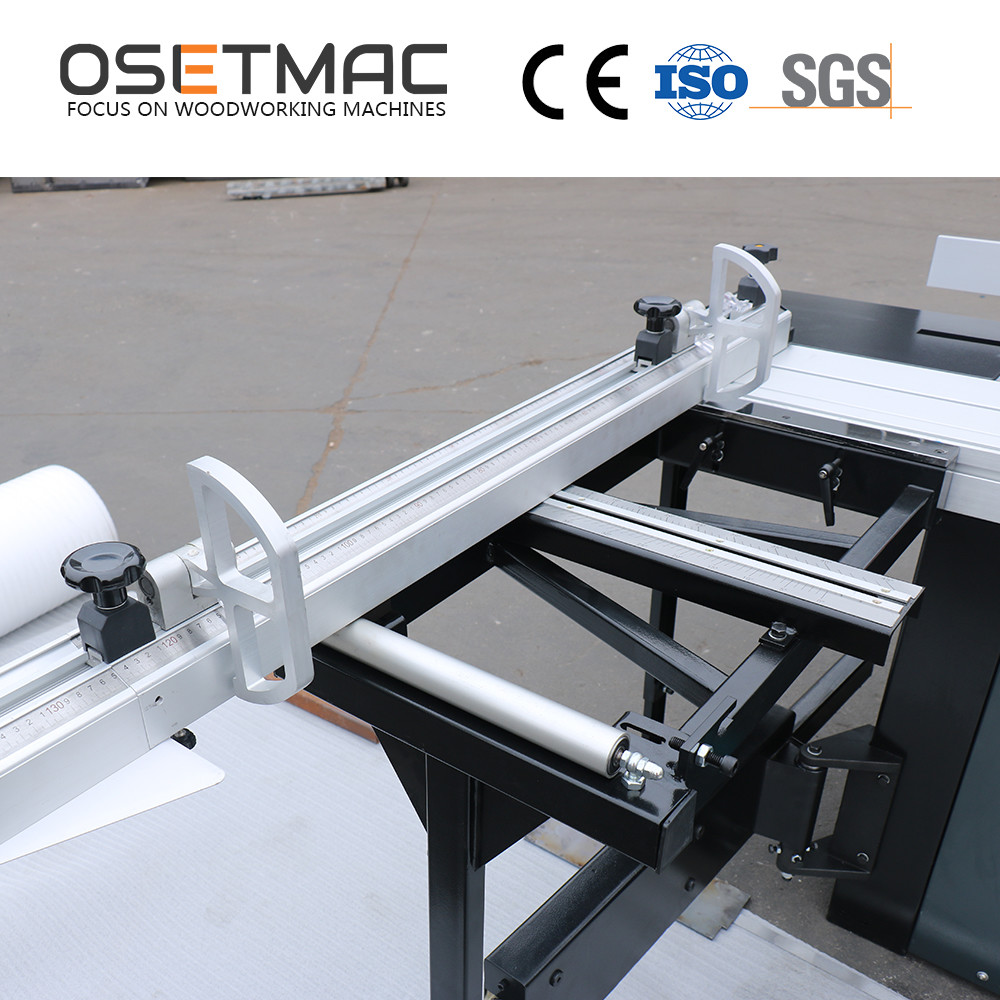

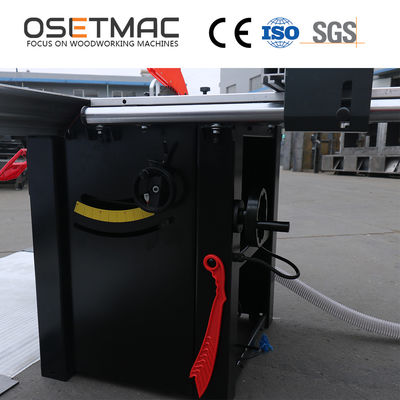

OSETMAC Mini Sliding Table Saw MJ6116 Details
OSETMAC MINI SLIDING TABLE SAW MJ6116 SPECIFICATIONS
| Sliding Table Dimension | 1600*270mm | ||
| Major Table Size | 385*800mm | ||
| Extension Table (Cast Iron) | 440*800mm | ||
| Extension Table (Steel Plate) | 440*800mm | ||
| Rear Extension Table | 310*500mm | ||
| Crosscut Table Size | 680*580mm | ||
| CrossCut Fence | 1200-2200mm | ||
| Main Blade Diameter | 315*30*3mm | ||
| Main Saw Bore Diameter | 30mm | ||
| Main Saw Blade Speed | 4000RPM | ||
| Scoring Saw Blade Diameter | 90*20*3mm | ||
| Scorning Saw Bore Diameter | 20mm | ||
| Scorning Blade Speed | 5800RPM | ||
| Max. Cutting Height With Bade at 90° | 100mm(315) | ||
| Max. Cutting Height With Bade at 45° | 70mm(315) | ||
| Max. Cutting Width | 1220mm | ||
| Max. Cutting Length | 1500mm | ||
| Noise Level | 75dB(A) | ||
| Motor Power | 220V/50HZ/ 1PH/3.0KW | ||
| Dimension of wood packing carton | 940*760*1040mm(Main Crate) | ||
| 16640*240*310mm(Sliding Table) | |||
| Weight (N.W./ G.W.) | 255/310KG |
