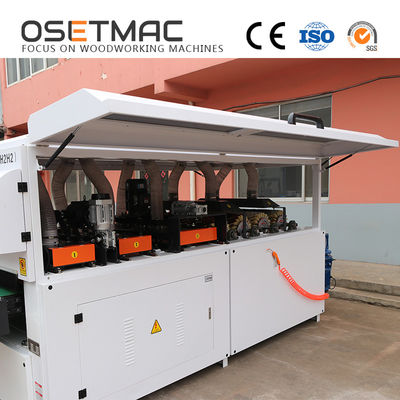

20m/Min Wide Belt Sanders Woodworking With Frequency Control

20m/Min Wide Belt Sanders Woodworking With Frequency Control
20m/Min Wide Belt Sanders Woodworking With Frequency Control
20m/Min Wide Belt Sanders Woodworking With Frequency Control 20m/Min Wide Belt Sanders Woodworking With Frequency Control 20m/Min Wide Belt Sanders Woodworking With Frequency Control

Large Image :  20m/Min Wide Belt Sanders Woodworking With Frequency Control

Product Details:
Place of Origin: CHINA
Brand Name: OSETMAC
Certification: CE ISO
Model Number: DT1000-8S(Z2Y2Y2H2)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden box or as request
Delivery Time: 5-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000set per year

20m/Min Wide Belt Sanders Woodworking With Frequency Control

Description
Name: Belt Sanders Woodworking Roller Speed: Frequency Control
Working Length: ≥350mm Power: 13.55kw
Max Working Width: 1000mm Working Thickness: 10-160mm
High Light:

20m/Min Wide Belt Sanders Woodworking

,

Frequency Control Wide Belt Sanders

,

20m/Min wood belt sanding machine

20m/Min Wide Belt Sanders Woodworking With Frequency Control



Description:



This Belt Sanders Woodworking is one of the necessary equipment for thickness adjustment, fine sanding, and polishing of fiberboard, shaving board,plywood board, man-made board and panel-type material.



Inner Structure Sketch:

20m/Min Wide Belt Sanders Woodworking With Frequency Control 0

20m/Min Wide Belt Sanders Woodworking With Frequency Control 1

20m/Min Wide Belt Sanders Woodworking With Frequency Control 2



20m/Min Wide Belt Sanders Woodworking With Frequency Control 3



Advantage:

----A variety of arrangements of the roller , it can be customized according to the different polishing requirements .OEM&ODM are available .

----Imported high-quality sandpaper,Japan RIKEN brand sandpaper and Germany HERMES sandpaper are available.

----Fuselage platform through gantry milling processing, improve the service life of linear guide, workpiece polishing precision is higher.

----The machine is equipped with a frequency converter device, which can adjust different speed according to the hardness of polishing materials.

----The machine is equipped with pure copper core national standard motor and imported electrical parts to ensure the high quality and high efficiency of the machine.

----High work efficiency , every minute to grind a door , save time and labor .

Main Technical Parameter :

Specification Z2Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 13.55kw
Packing Dimension 4100*1730*1850mm
Net Weight 2800KG
Wooden Case Dimension 4700*1730*1850mm

























20m/Min Wide Belt Sanders Woodworking With Frequency Control 4

Loading Container:

20m/Min Wide Belt Sanders Woodworking With Frequency Control 5

20m/Min Wide Belt Sanders Woodworking With Frequency Control 620m/Min Wide Belt Sanders Woodworking With Frequency Control 7

Other Similar Models:



DT1000-6S(Z2Y2H2)

20m/Min Wide Belt Sanders Woodworking With Frequency Control 8



Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Total Power 11.65kw
Packing Dimension 3100*1760*1890mm
Net Weight 1500kg
Wooden Case Demension 3180*1830*2150mm
Wooden case Weight 180kg

























DT1000-6S(Y2H2H2)

20m/Min Wide Belt Sanders Woodworking With Frequency Control 9



Main Technical Parameter :

Specification Y2H2H2
Max Working Width 1000mm
 Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed  5-20m/min
Wooden Case Weight  170kg
Total Power 12.14kw
Packing Dimension  2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension                     2890*1830*2150mm































DT1000-6S(Y2Y2H2)

20m/Min Wide Belt Sanders Woodworking With Frequency Control 10

Main Technical Parameter :

Specification Y2Y2H2
Max Working Width 1000mm
Working Thickness 10mm-150mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 170kg
Total Power 9.6kw
Packing Dimension 2810*1760*1890mm
Net Weight 1500KG
Wooden Case Dimension 2890*1830*2150mm



























DT1000-6SY:

20m/Min Wide Belt Sanders Woodworking With Frequency Control 11





Main Technical Parameter :

Specification Z2Y2H2
Max Working Width 1000mm /1300mm
Working Thickness 8mm-160mm
Working Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Total Power 11.65kw
Packing Dimension 3200*2100*1750mm
Net Weight 2400KG
Wooden Case Dimension                 3200*2100*1750mm

























DT1000-8S(Z2Y2H2H2):

20m/Min Wide Belt Sanders Woodworking With Frequency Control 12

Main Technical Parameter:

Specification Z2Y2H2H2
Max Working Width 1000mm
Working Thickness 10mm-160mm
Working Length ≥350mm
Conveyor Speed 5-20m/min
Wooden Case Weight 260kg
Total Power 16.45kw
Packing Dimension 4130*1800*2150mm
Net Weight 2800KG
Wooden Case Dimension 4550*1730*1850mm
