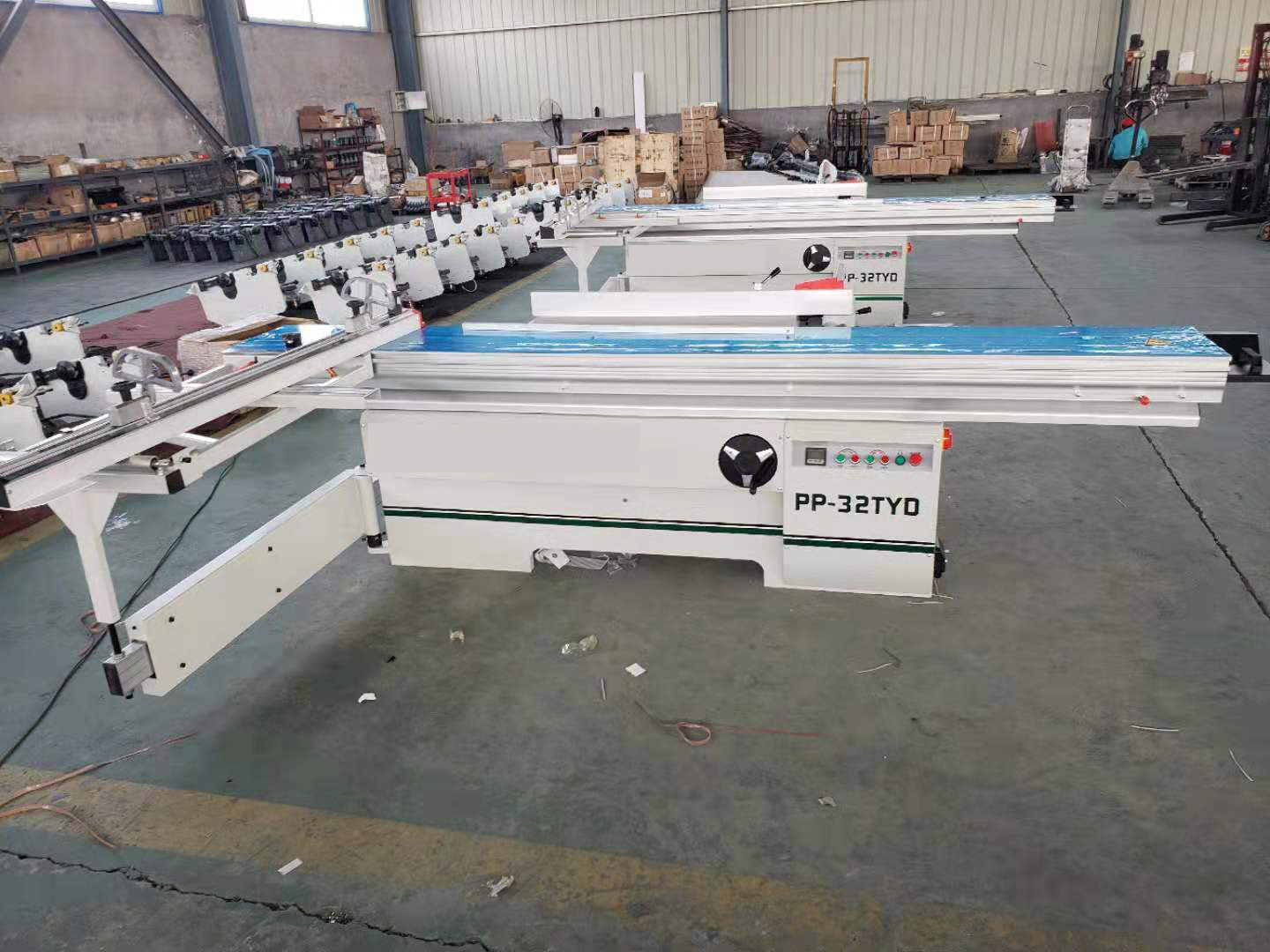

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting
3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting

Large Image :  3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting

Product Details:
Place of Origin: CHINA
Brand Name: OSET
Certification: ISO CE
Model Number: MJ6132TYD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 5-15workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sets per year

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting

Description
Weight: 680kg Warranty: 12 Months
After-sales Service Provided: Engineers Available To Service Machinery Overseas,video Technical Support, Online Support,field Maintenance And Repair Service Voltage: 380v,220v/380v/415v/440v Or As Customer Request
Style: Horizontal ,Vertical Usage: Woodworking, Wood Cutting, Table Saw , Wood Working, Cut Wood
Scoring Saw Blade Diameter: 120mm,120mm*20mm Condition: New
Sliding Table Dimension(l*w*h): 3200*375mm Power(w): 5.5+1.1kw/4+0.75kw
Type: Table Panel Saw .Sliding Table Saw Tilting Saw Blade: 0-45°/90°
Main Saw Blade Diameter: 300mm/30mm Gross Cut Capacity: 3200mm
High Light:

3200mm Sliding Bandsaw Table

,

PB Boards Sliding Bandsaw Table

,

MDF Boards Sliding Bandsaw Table

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting



The Sliding Bandsaw Table is fit for cutting MDF, chipboard, plywood,particle board, ABS panels, PVC Panels, acrylic board, solid wood and other wood structure and hardness similar to the plate.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 0

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 1

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 2

2.Main Saw and Scorning Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 3

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 4

3.SKF Bearing

All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 5

4.​Sliding Table Structure and Feature

Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 63200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 7

5.Cast-iron Main Table and Extension Table

(sliding panel saw )

After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 8

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 9

6.Supporting Arm and Cross Cut Table

Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 10

7.controlling board

The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 11

8.Rip Fence Fine Adjustment

Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 12

9.Movable Positioning Stops and Cross Cut Fence

The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 13

10.​Orange Dust Hood and Riving Knife

The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 14

11.hand swage

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 15

12.saw blade guard

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 16

                                                                         Optional Device

1. Altendour-structure Dust Cover

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 17

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 18

2. Digital Readout

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 19

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 20

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 21



Note: The price in the price list does not including these optional devices.



More Trading Details

Model MJ6132TYD
Payment Terms T/T
Delivery Time Negotiable (7-30DAYS)
FOB Port Qingdao Port, China
Country of Origin China
HS CODE 8465910000
Certificate CE



Our Certificate :

We have CE and ISO certificate ,Think All our models can meet the quality level in your market .

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 22



Different outlook for different customer

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 23

Our Warehouse





3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 24

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 25

3200mm Sliding Bandsaw Table For MDF PB Boards Wood Cutting 26

Applications:

This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.



Specifications:



Sliding Table Dimension 3200*375mm
Cast Iron Table Dimension 980*560*70mm
Length Extension Table 760*630*50mm
Width Cutting Extension Table 575*550*50mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 300mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 55mm50/70mm(φ300/350)
Main Motor Power 4KW(5.5KW)
Main Blade Speed 4000/6000RPM
Scoring Saw Blade Diameter 120mm
Scoring Saw Bore Diameter 20mm
Scoring Saw Motor Power 0.75KW(1.1KW)
Scoring Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3200mm
Blade Tilting Adjustment 0-45°
Main Saw Height Adjustment Manual
Scoring Saw Height Adjustment Manual

Wood Packing Dimensions

Main Crate and Sliding table

2100*1100*1100mm

3400*420*220mm

Installation Dimensions 3250*3150*900mm
Net Weight 680KG

Competitive Advantage:

  1. It can load 24 sets in one 40’ GP Container and 10 sets in one 20 GP container.
  2. We can change the outlook of the machine according to your requirement.
  3. Any size of the sliding table can be produced and the longest customized size is 4200mm.
  4. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
