accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting

  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
  • accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting
Place of Origin Shandong, China
Brand Name OSETMAC
Certification CE ISO SGS
Price $3,680.00/sets 1-9 sets
Packaging Details WOODEN CASE PACKING OR STRETCH FILM
Supply Ability 5000 Set/Sets per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Panel Saw
Use Woodworking, Cut Wood Style Horizontal
Voltage 380V/220V/415V Dimension(L*W*H) 3250*3450*900mm
Warranty 1 Year Application Furniture Factory
Weight (KG) 800 KG Power (kW) 6.6KW
Key Selling Points High-accuracy Max.Cutting Height At 90°(mm) 100 Mm
Max.Cutting Height At 45°(mm) 70 Mm Max. Length Of Workpiece (mm) 3100 Mm
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works  Marketing Type Hot Product 2020
Machinery Test Report Provided Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Motor
Name Precision Panel Saw Blade Size 300-350mm
After-sales Service Provided Video Technical Support After Warranty Service Video Technical Support, Online Support, Spare Parts
Local Service Location Viet Nam, Brazil, Pakistan, Russia, Malaysia, Uzbekistan Showroom Location None
Port Qingdao
Leave a Message
Product Description

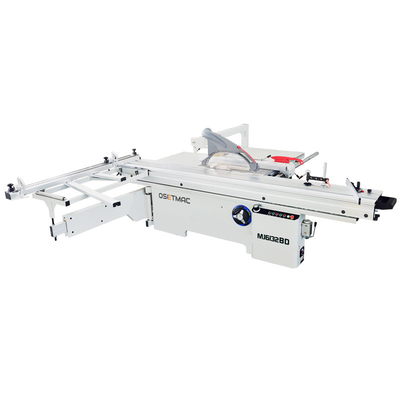

Sliding Table Saw MJ6132 BD for Wood Cutting
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 0
A
Main Table
Main working table
B
Extension Table
Extension working table
C
Dust Guard
Not only reduce dust produced by chips while cutting， but also warning the operator where the saw-blade position.
D
Rip Fence
Reference positioning while ripping
E
Hand Swage
To press the workpiece on the sliding table
F
Miter Fence
Reference positioning while 0-45° cutting
G
Sliding Table
Table for main feeding while cutting
H

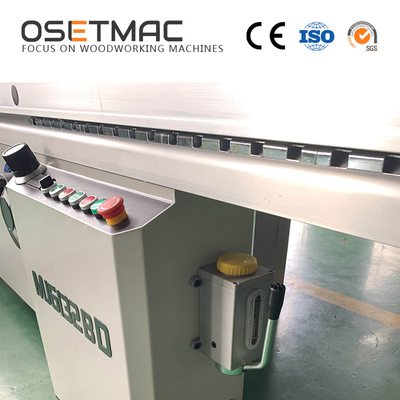

Oiler
To oil for the inner structure
I

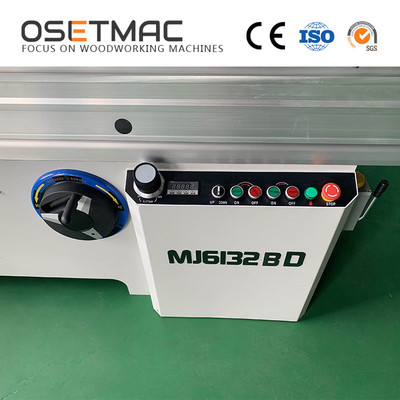

Controlling Panel
Control the machines running，indication， stop，lifting etc.
J
Hand Wheel for Mail Saw Tilting
To adjust main saw tilting 0-45°
K
Cross Cut Table
Used to put the workpiece while cross cutting
L
Cross Cut Fence
To position the size of the movable positioning board
M
Movable Position Stops
To position while cross cutting
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 1
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 2
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 3
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 4
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 5

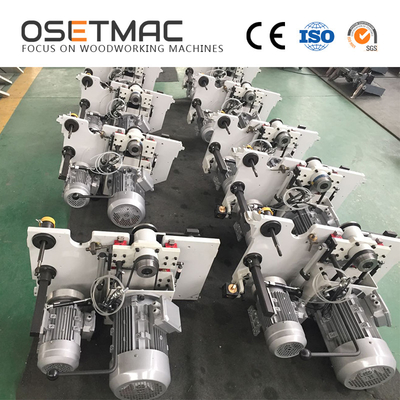

Inner Structure

This machine uses linear guideway to lift the
saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

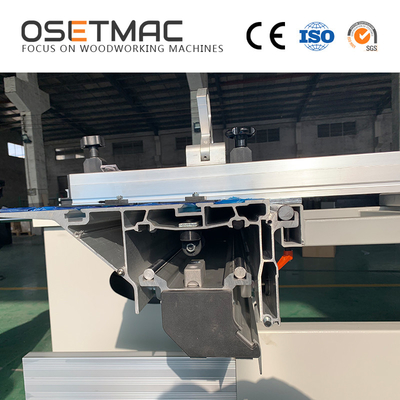

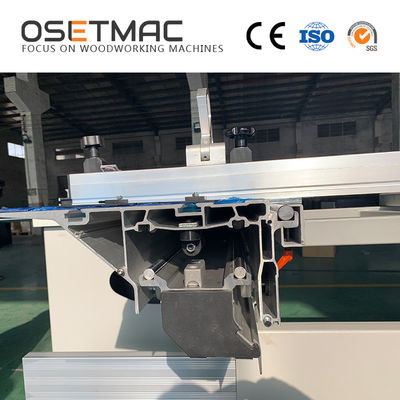

  •  Sliding Table Structure and Feature


Our sliding table supplier is the same as SCM.Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock
on the table makes it convenient to stop anywhere.
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 6
Product Paramenters
Sliding Table Dimension
3200*390mm
Cast Iron Table Dimension
910*620*80mm
length extension table
905*680*70mm
width cutting extension table
640*680*70mm
Main Saw Diameter
300mm
Main Saw Blade Diameter Maximum
350mm
Main Saw Bore Diameter
30mm
Max. Cutting Height With Bade at 90
80/100mm（φ300/350）
Max. Cutting Height With Bade at 45
50/70mm（φ300/350）
Main Motor Power
5.5KW
Main Blade Speed
4000/6000RPM
Scorning Saw Blade Diameter
120mm
Scorning Saw Bore Diameter
20mm
Scorning Saw Motor Power
1.1KW
Scorning Blade Speed
8000RPM
Max. Cutting Width
1250mm
Max. Cutting Length
3100mm
Blade Tilting Adjustment
0-45°
Main Saw Height Adjustment
Electric
Scorning Saw Height Adjustment
Electric
Dust Guard Outlet Diameter
80mm
Dust System Outlet Diameter
100mm
Dimension of Wood Packing Carton
2250*1200*1100mm(Main Crate )
3400*450*290mm(Sliding Table)
Dimension
3250*3450*900mm
G. W.
800KG
Packing&Shipping
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 7
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 8
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 9
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 10
Detailed Images
All bearings in our sliding table saw are imported SKF brand.
We use thicken Cast-iron Main Table and Broaden Extension Table on this sliding table saw.
Big dust cover is optional in this sliding table saw. This device can make sure better dust collection effect and keep safety.
The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 11
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 12
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 13
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 14

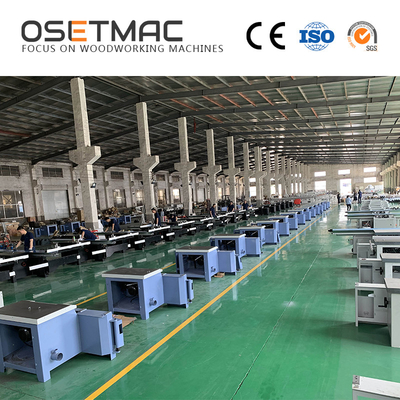

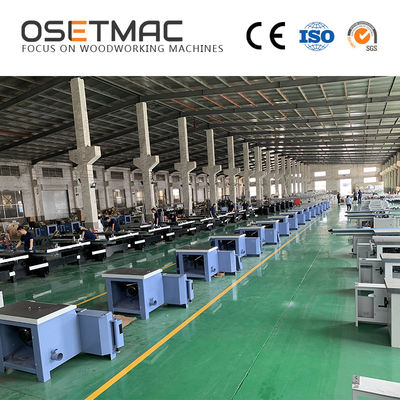

Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 15
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 16
accuracy Woodworking Sliding Table Panel Saw MJ6132BD from OSETMAC for Wood Cutting 17
