380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting

  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
  • 380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
Place of Origin Shandong, China
Brand Name OSETMAC
Certification CE ISO
Price $4,880.00/sets 1-9 sets
Packaging Details WOODEN CASE PACKING OR STRETCH FILM
Supply Ability 5000 Set/Sets per Year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Panel Saw
Use Woodworking, Cut Wood Style Horizontal
Voltage 380V/220V/415V Dimension(L*W*H) 3250*3450*900mm
Warranty 1 Year Application Furniture Factory
Weight (KG) 800 KG Power (kW) 6.6KW
Key Selling Points High-accuracy Max.Cutting Height At 90°(mm) 100mm
Max.Cutting Height At 45°(mm) 70mm Max. Length Of Workpiece (mm) 3100mm
Applicable Industries Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works  Marketing Type Hot Product 2020
Machinery Test Report Provided Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year Core Components Motor
Name Precision Panel Saw Blade Size 300-350mm
After-sales Service Provided Video Technical Support After Warranty Service Video Technical Support, Online Support, Spare Parts
Local Service Location Viet Nam, Brazil, Pakistan, Russia, Malaysia, Uzbekistan Showroom Location None
Port Qingdao
Leave a Message
Product Description
Product Description

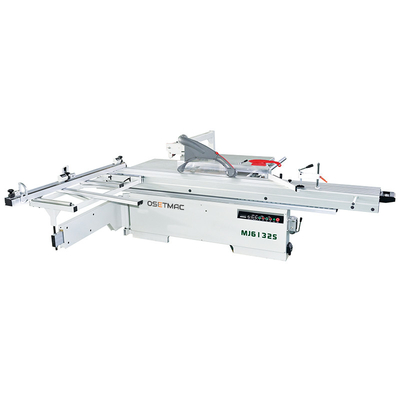

Sliding Table Saw MJ6132S With full Digital Display for Wood Cutting
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 0
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 1
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 2
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 3
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 4

Inner Structure

This machine uses linear guideway to lift the
saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.




  •  Sliding Table Structure and Feature

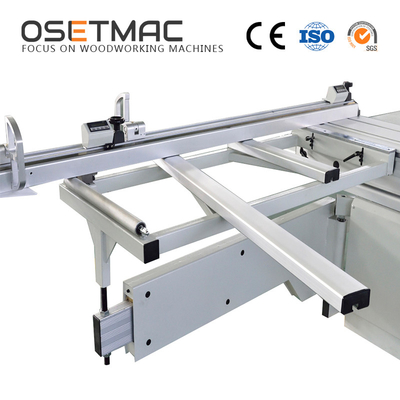

Our sliding table supplier is the same as SCM.Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock
on the table makes it convenient to stop anywhere.
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 5
Product Paramenters
Sliding Table Dimension
3200*390mm
Cast Iron Table Dimension
910*620*80mm
length extension table
905*680*70mm
width cutting extension table
640*680*70mm
Main Saw Diameter
300mm
Main Saw Blade Diameter Maximum
350mm
Main Saw Bore Diameter
30mm
Max. Cutting Height With Bade at 90
80/100mm（φ300/350）
Max. Cutting Height With Bade at 45
50/70mm（φ300/350）
Main Motor Power
5.5KW
Main Blade Speed
4000/6000RPM
Scorning Saw Blade Diameter
120mm
Scorning Saw Bore Diameter
20mm
Scorning Saw Motor Power
1.1KW
Scorning Blade Speed
8000RPM
Max. Cutting Width
1250mm
Max. Cutting Length
3100mm
Blade Tilting Adjustment
0-45°
Main Saw Height Adjustment
Electric
Scorning Saw Height Adjustment
Electric
Dust Guard Outlet Diameter
80mm
Dust System Outlet Diameter
100mm
Dimension of Wood Packing Carton
2250*1200*1100mm(Main Crate )
3400*450*290mm(Sliding Table)
Dimension
3250*3450*900mm
G. W.
800KG
Packing&Shipping
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 6
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 7
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 8
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 9
Detailed Images

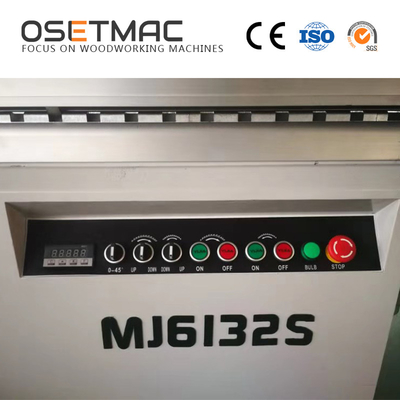

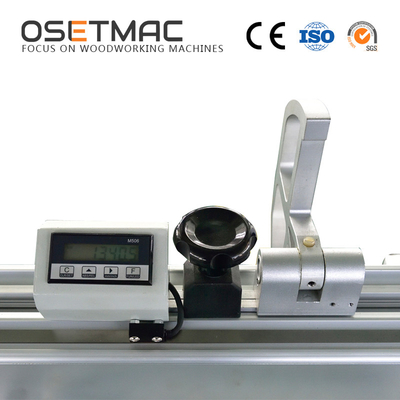

Full digital display with big dust cover to make sure better dust collection effect and keep safety.
All bearings in our sliding table saw are imported SKF brand.
Big dust cover is optional in this sliding table saw. This device can make sure better dust collection effect and keep safety.
The main saw blade and scoring saw blade are both electric lifting, which makes it easy to operate. The tilting function is also electric control.
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 10
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 11
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 12
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 13
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 14
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 15
380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting 16
