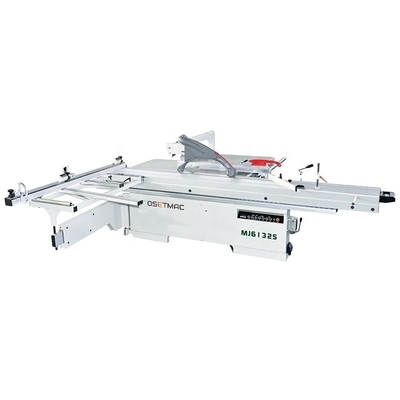

Precision Woodworking Electric Sliding Table Panel Saw Max. Length of Workpiece mm 3100mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Panel Saw |
|---|---|---|---|
| Use | Woodworking, Cutting Wood Material | Style | Horizontal |
| Voltage | 220v/380v | Dimension(L*W*H) | 3250*3450*900mm |
| Warranty | 1 Year | Application | Furniture Factory, Home Using, Woodworking Machinery |
| Weight (KG) | 800 KG | Power (kW) | 5.5 + 1.1 |
| Key Selling Points | High-accuracy | Max.Cutting Height At 90°(mm) | 80mm |
| Max.Cutting Height At 45°(mm) | 50mm | Max. Length Of Workpiece (mm) | 3100mm |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction Works | Marketing Type | Hot Product 2019 |
| Machinery Test Report | Not Available | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| After-sales Service Provided | Online Support | After Warranty Service | Video Technical Support, Online Support |
| Local Service Location | United States, Viet Nam, Brazil | Showroom Location | Viet Nam, United States, Brazil |
| Port | Qingdao, China |
Product Description
Product Description

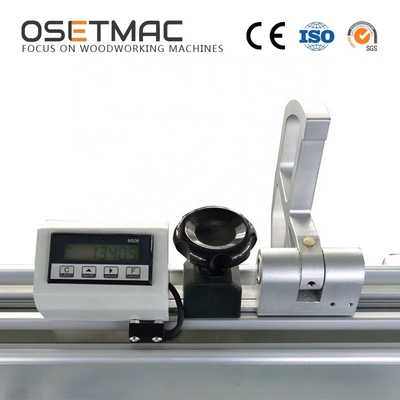

*Full Digital readout in this machine * Full electric lifting for main saw blade and scoring saw blade and also tilting. * This machine uses linear guideway to lift the saw blade. * All bearings in this machine are all imported SKF brand. * The table is made of fully-extruded, anodized aluminum. * With cast-iron main table and broaden extension table. * Fine adjustment range is between 0-10mm.
Sliding Table Dimension | 3200*390mm | ||||
Cast Iron Table Dimension | 910*620*80mm | ||||
length extension table | 905*680*70mm | ||||
width cutting extension table | 640*680*70mm | ||||
Main Saw Diameter | 300mm | ||||
Main Saw Blade Diameter Maximum | 350mm | ||||
Main Saw Bore Diameter | 30mm | ||||
Max. Cutting Height With Bade at 90 | 80/100mm（φ300/350） | ||||
Max. Cutting Height With Bade at 45 | 50/70mm（φ300/350） | ||||
Main Motor Power | 5.5KW | ||||
Main Blade Speed | 4000/6000RPM | ||||
Scorning Saw Blade Diameter | 120mm | ||||
Scorning Saw Bore Diameter | 20mm | ||||
Scorning Saw Motor Power | 1.1KW | ||||
Scorning Blade Speed | 8000RPM | ||||
Max. Cutting Width | 1250mm | ||||
Max. Cutting Length | 3100mm | ||||
Blade Tilting Adjustment | 0-45° | ||||
Main Saw Height Adjustment | Electric | ||||
Scorning Saw Height Adjustment | Electric | ||||
Dust Guard Outlet Diameter | 80mm | ||||
Dust System Outlet Diameter | 100mm | ||||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||||
3400*450*290mm(Sliding Table) | |||||
Dimension | 3250*3450*900mm | ||||
G. W. | 800KG | ||||
Detailed Images
Packing&Shipping
After Sales Service
After Sales Service
Free training for cutomers, guiding the installation, explaining the operation points,establishing customers information files.
