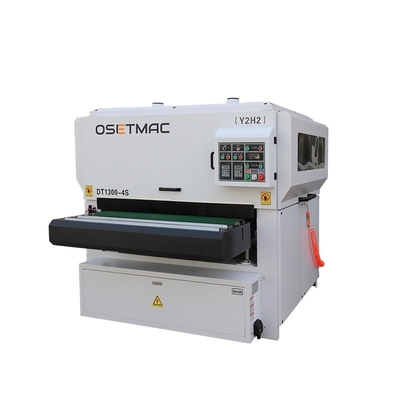

7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Machine Type | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Hot Product 2020 | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Warranty | 1 Year |
| Weight (KG) | 1260 KG | Power (kW) | 7.75 |
| Key Selling Points | High Productivity | Showroom Location | None |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works | After-sales Service Provided | Video Technical Support |
| After Warranty Service | Video Technical Support, Online Support | Local Service Location | None |
| Port | Qingdao Port |
Product Description
This kind of brush sanding machine has different layout of brush rollers in order to meet different sanding requirement. We also support customization for your special requirement. Z2Y2H2 is the most seller now because it can solve different directions sanding problem. 4 units, 6 units are most popular models, but 8 units and 10 units are also available if you need.
Model | DT1000-4S (Y2H2) |
Max Working Width | 1000mm |
Working Thickness | 10-150mm |
Min Working Length | ≥350mm |
Roller Speed | Inverter Control |
Conveyor Speed | 5-20m/min |
Roller Diameter | 300mm |
Total Power | 7.75kw |
Straight Roller Motor | 2.2kw * 2 |
Conveyor Motor | 1.1kw |
Lifting Motor | 0.55kw |
Disc Motor | 1.5kw |
Disc Swing Motor | 0.55kw |
Net Weight | 1110KG |
Using Dimension | 2950×1750×2160mm |
Wooden Case Dimension | 2400×1820×2150mm |
Wooden Case Weight | 150KG |
Gross Weight | 1260KG |

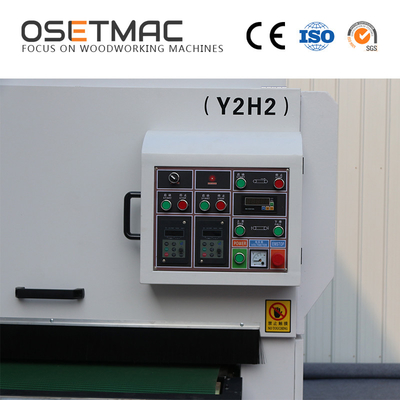

Rotatory control board
This brush sanding machine is very easy to control. Four units rollers' speed are controlled by two inverters and the speed of the rollers are easy to control by the switch on the control board. Workers can adjust the speed according to different materials.

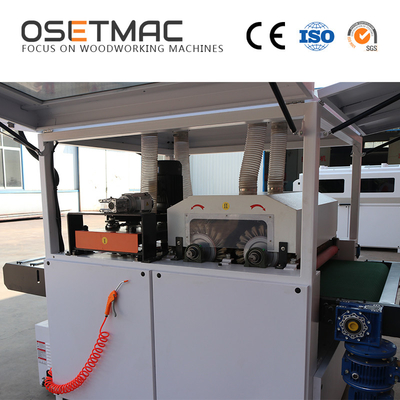

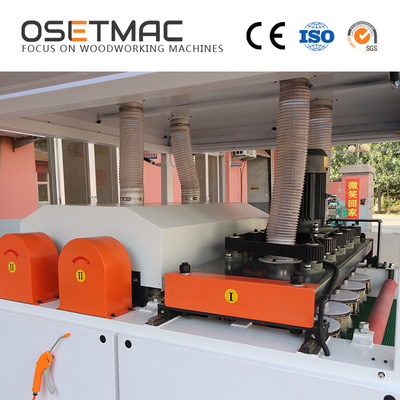

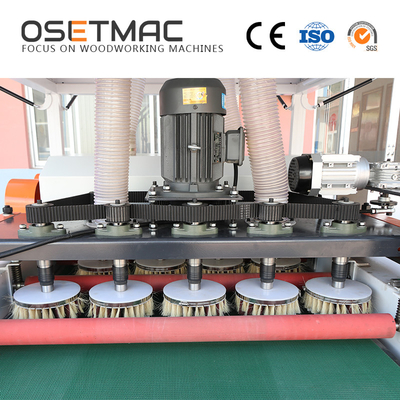

Disc Brushes
Two units of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by
frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven
surface and corner from different angles.

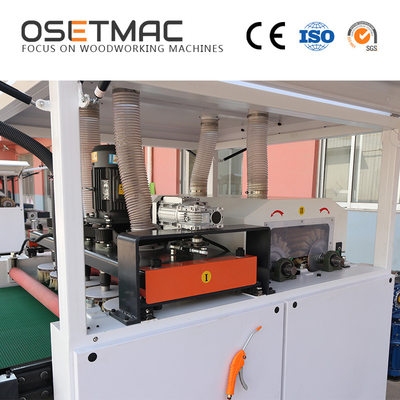

Lengthways Rollers
Two units of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
Detailed Images
Related Products
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
