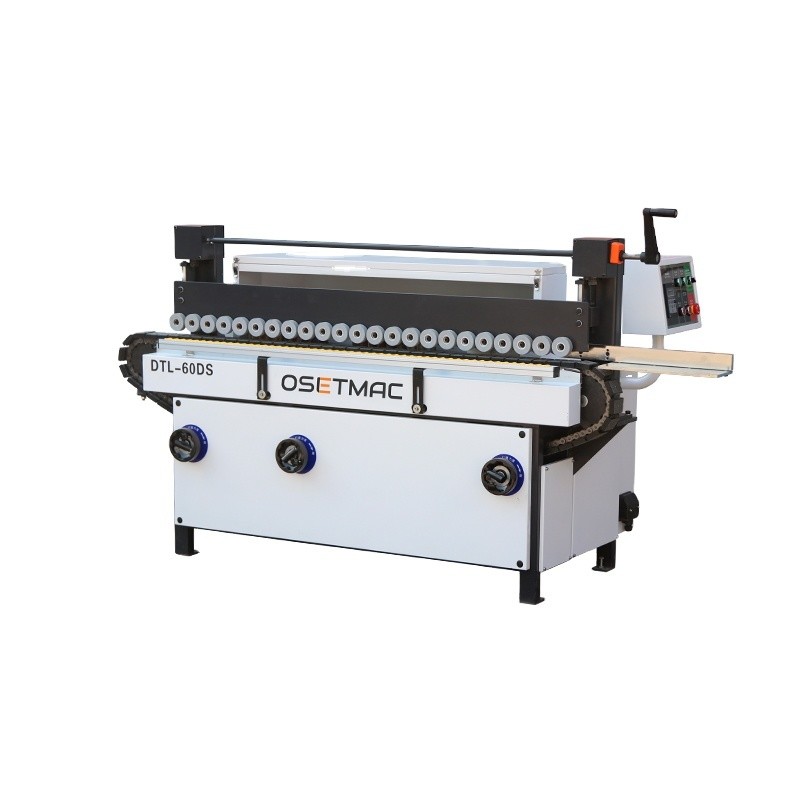

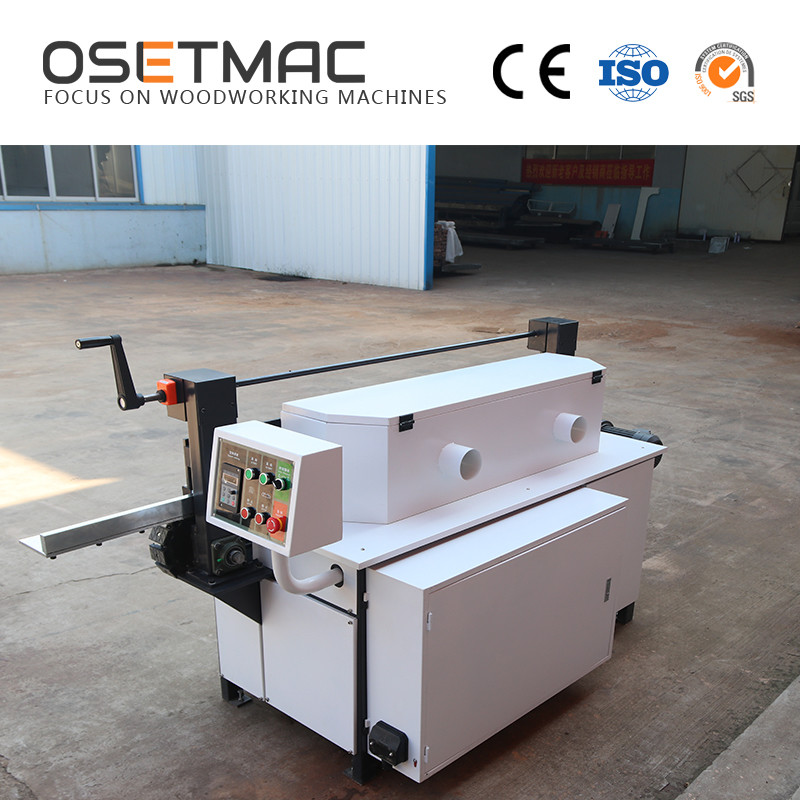

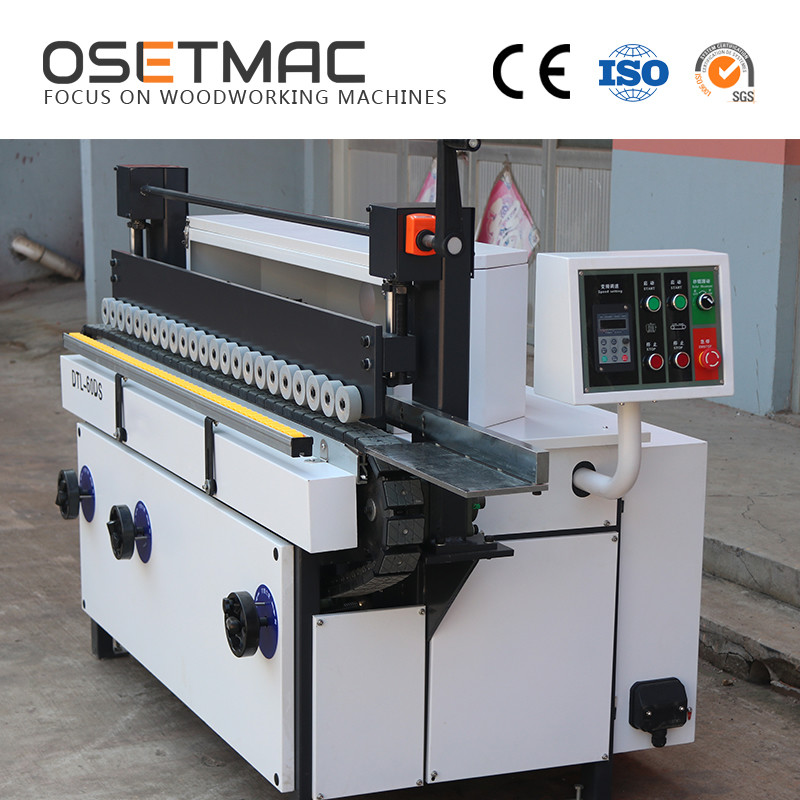

Woodworking Machinery OSETMAC DTL-60DS Side Sanding Machine for Furniture Grinding
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Machine Type | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | New Product 2020 | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Warranty | 1 Year |
| Weight (KG) | 540 KG | Power (kW) | 4.11KW |
| Key Selling Points | High Productivity | Showroom Location | None |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works | Name | Side Sanding Machine |
| Usage | Sanding Surface | Model | DTL-60DS |
| Motor Power | 4.11KW | After-sales Service Provided | Video Technical Support |
| After Warranty Service | Video Technical Support, Online Support | Local Service Location | None |
| Port | Qingdao Port |
Product Description
OSETMAC Side Sanding Machine is mainly for the grinding or polishing of cabinet door side.
Brush Roller Diameter | 300mm | ||
Sand Roller Diameter | 180mm | ||
Roller Height | 150mm | ||
Min Working Width | 80mm | ||
Min Working Length | 60mm | ||
Working Thickness | 5-40mm | ||
Sandpaper Grade | 120#-600# | ||
Lifting Way | Electric Control | ||
Conveyor Motor | 0.75KW | ||
Lifting Motor | 0.37KW *3 | ||
Main Motor | 0.75KW *3 | ||
Total Power | 4.11KW | ||
Conveyor Speed | 12m/min | ||
Voltage | 380V/50HZ/3PH | ||
Roller Speed | Inverter Control | ||
Dimension | 2400*1000*1200mm | ||
Wooden Case Size | 2450*1100*1330mm | ||
N.W. | 540KG | ||
G. W. | 640KG | ||

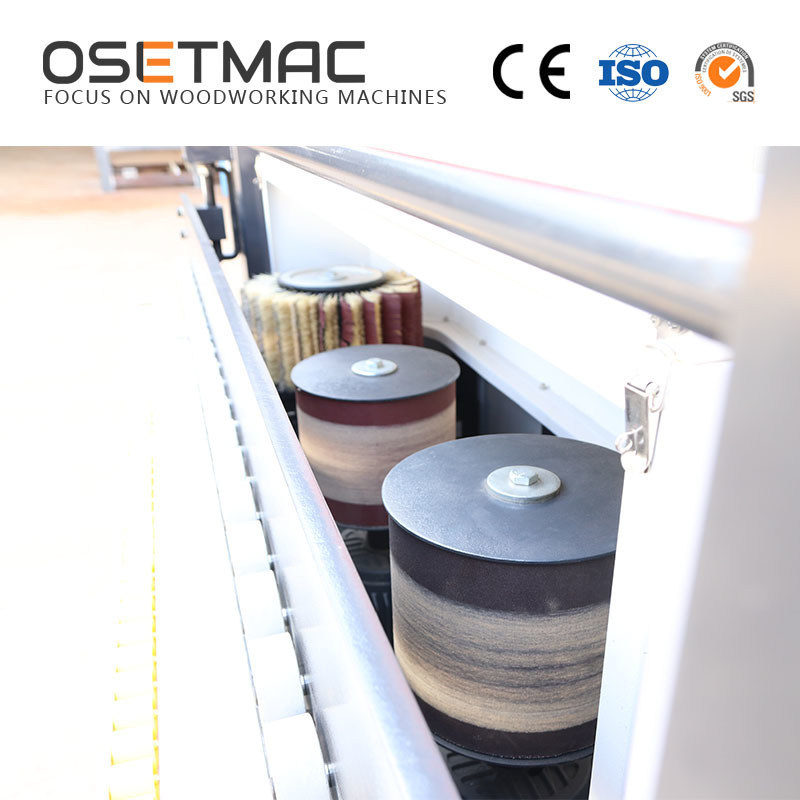

Two Sanding Rollers and One Brush Roller
This side sanding machine DTL-60DS has two sanding rollers and one brush roller which can make sure to sand the cutting edge of the material to perfect effect.

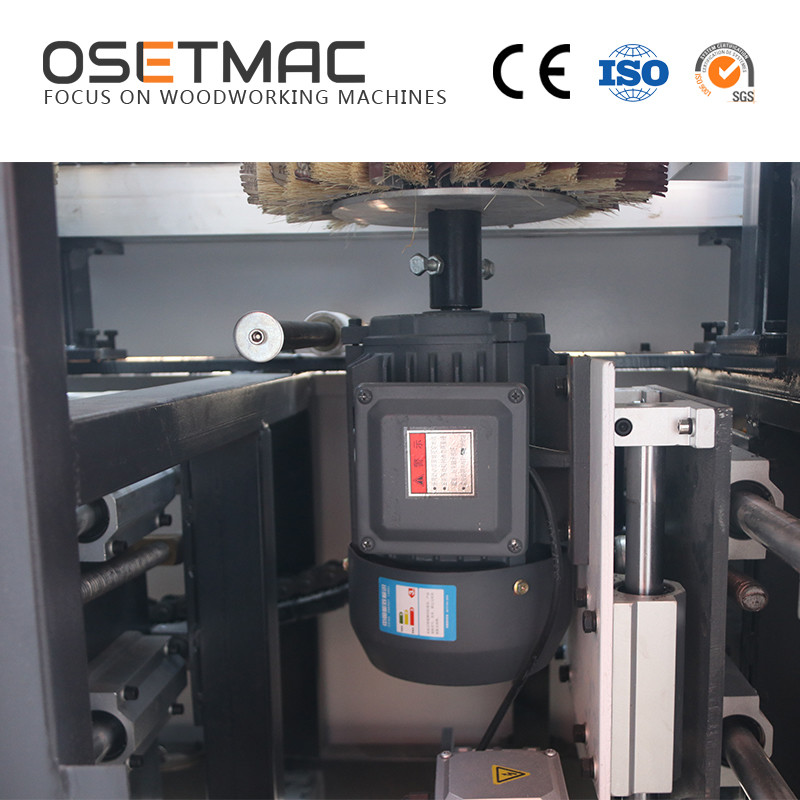

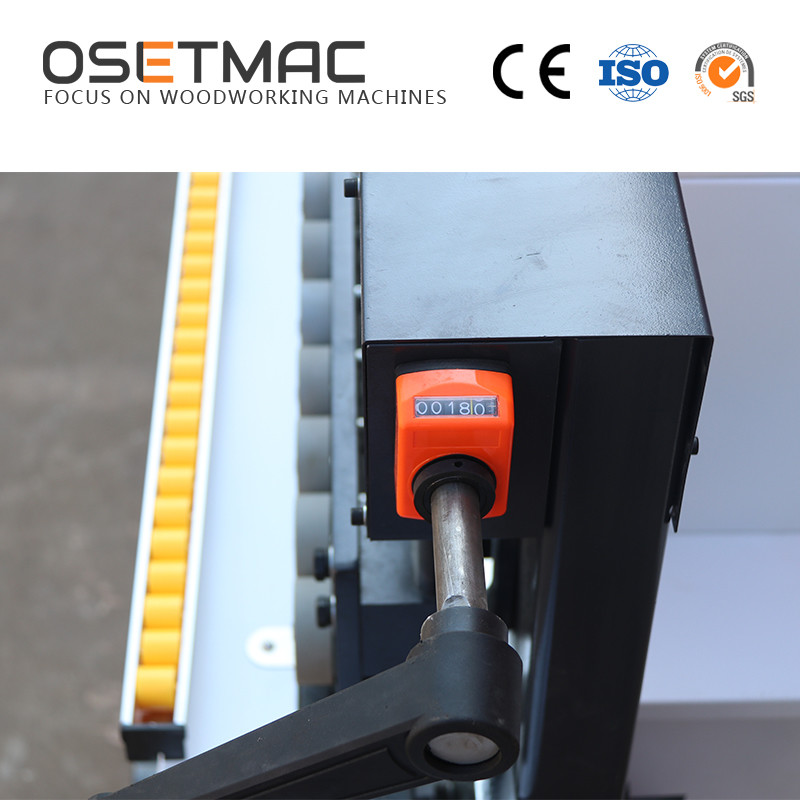

Electric Lifting Rollers
This side sanding machine can lift up and down by electric lifting whick make sure the perfect sanding effect of the materials.
Detailed Images
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
