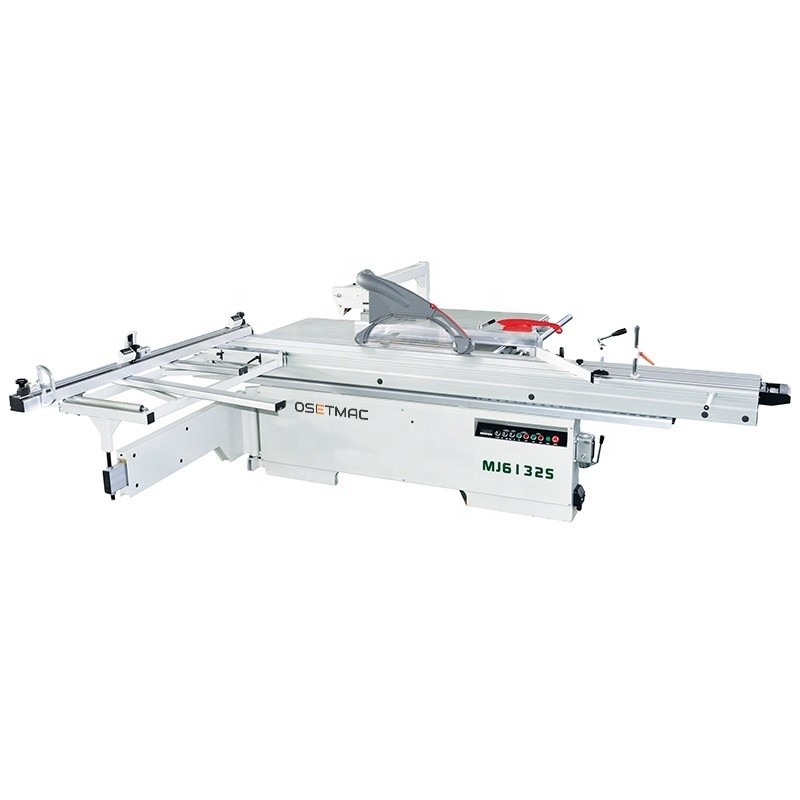

Electric Sliding Table Panel Saw OSETMAC 3200mm Circular Saw Precision Woodworking
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Panel Saw |
|---|---|---|---|
| Use | Woodworking, Cutting Wood Material | Style | Horizontal |
| Voltage | 220v/380v | Dimension(L*W*H) | 3250*3450*900mm |
| Warranty | 1 Year | Application | Furniture Factory, Home Using, Woodworking Machinery |
| Weight (KG) | 800 KG | Power (kW) | 5.5kw + 1.1kw |
| Key Selling Points | High-accuracy | Max.Cutting Height At 90°(mm) | 80mm |
| Max.Cutting Height At 45°(mm) | 50mm | Max. Length Of Workpiece (mm) | 3000mm |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Construction Works | Marketing Type | Hot Product 2019 |
| Machinery Test Report | Not Available | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| After-sales Service Provided | Online Support | After Warranty Service | Online Support |
Product Description
Product Description

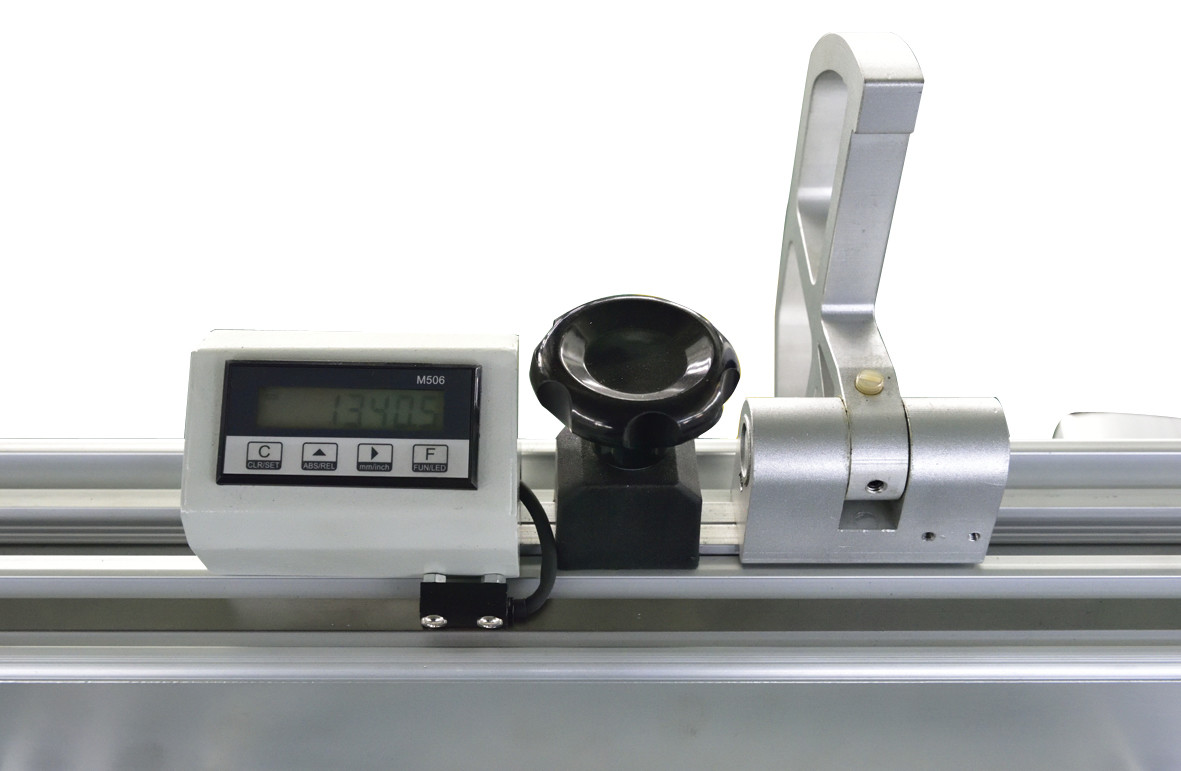

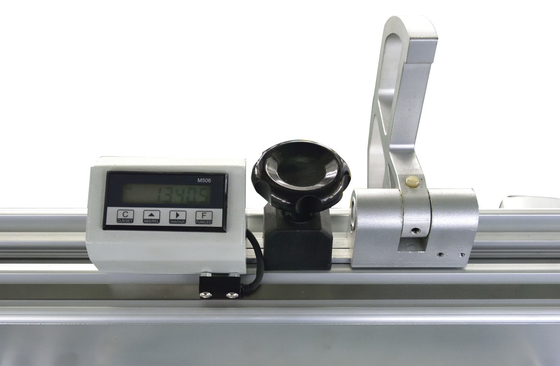

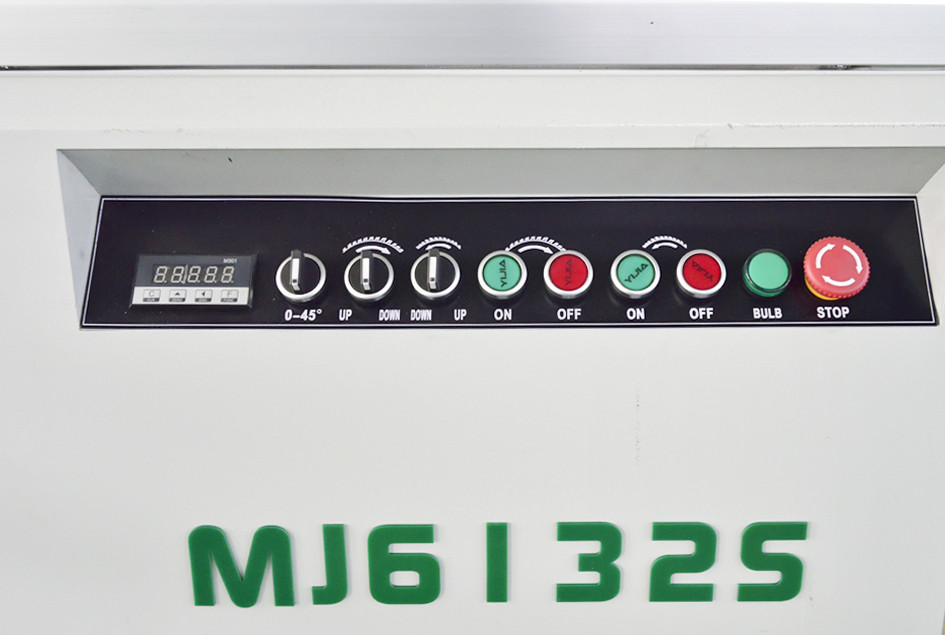

*Full Digital readout in this machine * Full electric lifting for main saw blade and scoring saw blade and also tilting. * This machine uses linear guideway to lift the saw blade. * All bearings in this machine are all imported SKF brand. * The table is made of fully-extruded, anodized aluminum. * With cast-iron main table and broaden extension table. * Fine adjustment range is between 0-10mm.
Sliding Table Dimension | 3200*390mm | ||||
Cast Iron Table Dimension | 910*620*80mm | ||||

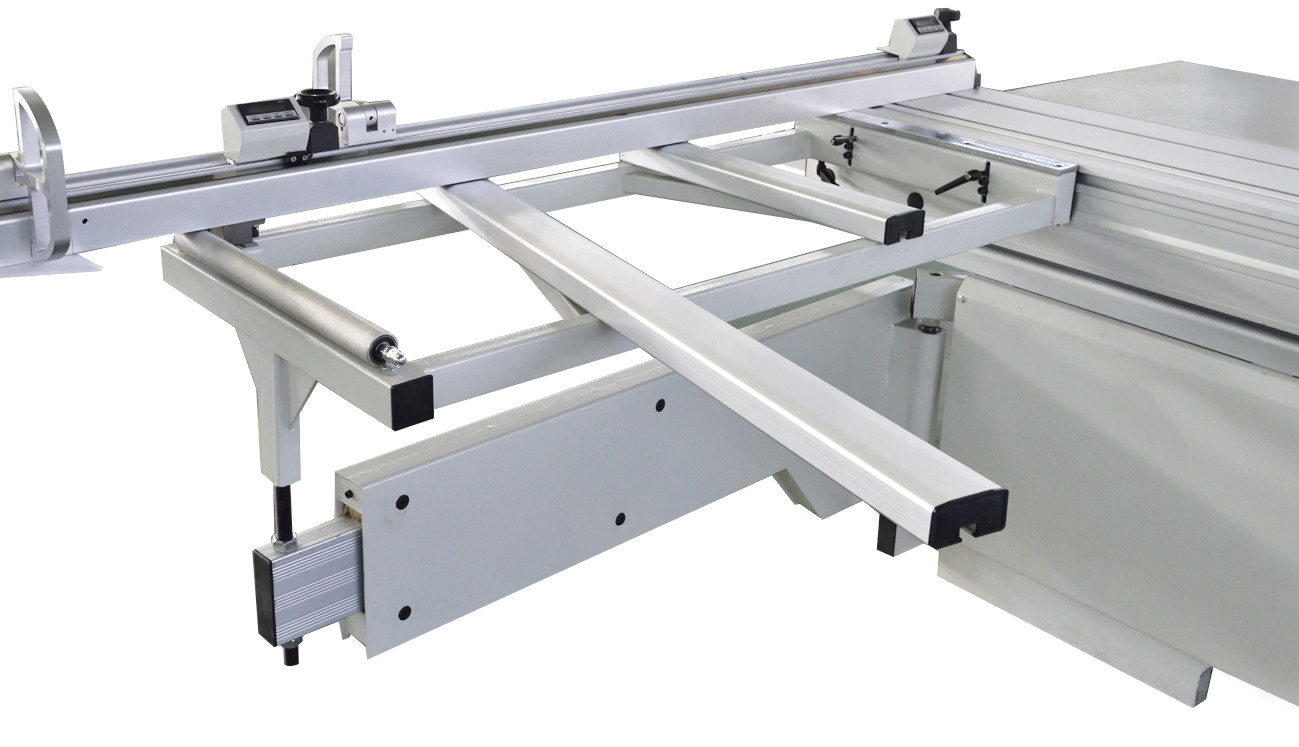

length extension table | 905*680*70mm | ||||
width cutting extension table | 640*680*70mm | ||||
Main Saw Diameter | 300mm | ||||
Main Saw Blade Diameter Maximum | 350mm | ||||
Main Saw Bore Diameter | 30mm | ||||
Max. Cutting Height With Bade at 90 | 80/100mm（φ300/350） | ||||
Max. Cutting Height With Bade at 45 | 50/70mm（φ300/350） | ||||
Main Motor Power | 5.5KW | ||||
Main Blade Speed | 4000/6000RPM | ||||
Scorning Saw Blade Diameter | 120mm | ||||
Scorning Saw Bore Diameter | 20mm | ||||
Scorning Saw Motor Power | 1.1KW | ||||
Scorning Blade Speed | 8000RPM | ||||
Max. Cutting Width | 1250mm | ||||
Max. Cutting Length | 3100mm | ||||
Blade Tilting Adjustment | 0-45° | ||||
Main Saw Height Adjustment | Electric | ||||
Scorning Saw Height Adjustment | Electric | ||||
Dust Guard Outlet Diameter | 80mm | ||||
Dust System Outlet Diameter | 100mm | ||||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||||
3400*450*290mm(Sliding Table) | |||||
Dimension | 3250*3450*900mm | ||||
G. W. | 800KG | ||||
Detailed Images
Packing&Shipping
After Sales Service
After Sales Service
Free training for cutomers, guiding the installation, explaining the operation points,establishing customers information files.
Company Introduction
Qingdao OSET International Trading Company is a professional manufacturer of woodworking machinery with research and development, manufacturing, sales and marketing. We have complete equipment, strong technical force and professional technicians. We can provide designing and manufacturing according to customer's needs.
