JoroI have got the machines and the sliding table saw are really good quality.
Woodworking Table Saw with 0-45° Blade Tilting Adjustment 3200mm Max. Workpiece Length
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Type | Panel Saw |
---|---|---|---|
Use | Woodworking, Wood Cutting | Style | VERTICAL |
Voltage | Customized | Dimension(L*W*H) | 3250*3450*900mm |
Warranty | 1 Year | Application | Furniture Factory, Wood Board Factory |
Weight (KG) | 800 KG | Power (kW) | 5.5KW |
Key Selling Points | High-accuracy | Max.Cutting Height At 90°(mm) | 100mm |
Max.Cutting Height At 45°(mm) | 70mm | Max. Length Of Workpiece (mm) | 3200mm |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Woodworking | Marketing Type | New Product 2023 |
Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
Warranty Of Core Components | 1 Year | Core Components | Motor |
Support Table Dimension | 910*620*80mm | Extension Table | 905*680*70mm |
Cutting Extension Table | 640*680*70mm | Main Saw Blade Diameter | 300mm |
Main Saw Blade Diameter Maximum | 350mm | Main Saw Bore Diameter | 30mm |
Scorning Saw Blade Diameter | 120mm | Scorning Saw Bore Diameter | 20mm |
Scorning Saw Motor Power | 1.1KW | Blade Tilting Adjustment | 0-45° |

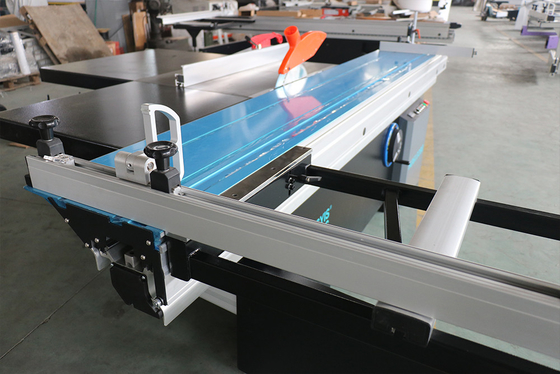

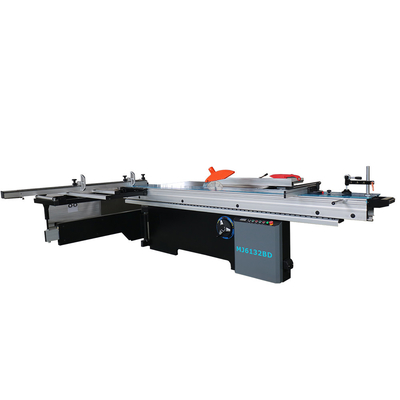

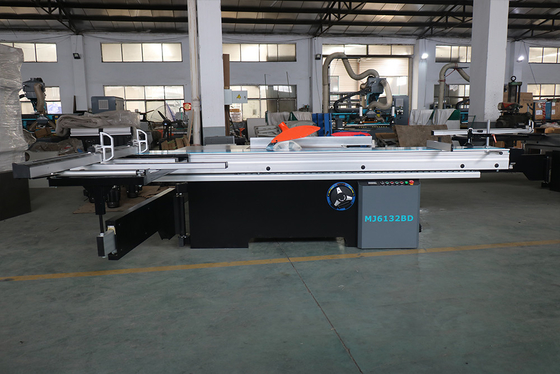

Industrial Table Saw Machine for Woodworking Premium Wood Saw Tool
* This machine uses linear guideway to lift the saw blade.
* All bearings in this machine are all imported SKF brand.
* The table is made of fully-extruded, anodized aluminum.
* With cast-iron main table and broaden extension table.

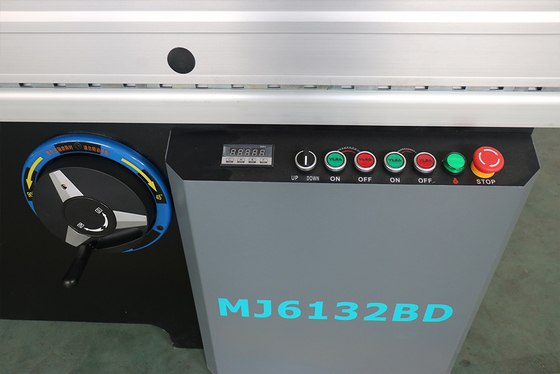

* The main saw blade lifting is electric control.
* The hand wheel for saw blade tilting is very light.
* Fine adjustment range is between 0-10mm.
* Digital Readout is available according to your requirement.
* There are comb lock on the table.
Parameters | |||
Sliding Table Dimension | 3200*390mm | ||
Cast Iron Table Dimension | 910*620*80mm | ||
length extension table | 905*680*70mm | ||
width cutting extension table | 640*680*70mm | ||
Main Saw Diameter | 300mm | ||
Main Saw Blade Diameter Maximum | 350mm | ||
Main Saw Bore Diameter | 30mm | ||
Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) | ||
Max. Cutting Height With Bade at 45 | 50/70mm(φ300/350) | ||
Main Motor Power | 5.5KW | ||
Main Blade Speed | 4000/6000RPM | ||
Scorning Saw Blade Diameter | 120mm | ||
Scorning Saw Bore Diameter | 20mm | ||
Scorning Saw Motor Power | 1.1KW | ||
Scorning Blade Speed | 8000RPM | ||
Max. Cutting Width | 1250mm | ||
Max. Cutting Length | 3100mm | ||
Blade Tilting Adjustment | 0-45° | ||
Main Saw Height Adjustment | Electric | ||
Scorning Saw Height Adjustment | Manual | ||
Dust Guard Outlet Diameter | 80mm | ||
Dust System Outlet Diameter | 100mm | ||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||
3400*450*290mm(Sliding Table) | |||
Dimension | 3250*3450*900mm | ||
G. W. | 800KG |
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
1. Who Are We?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What Can You Buy From Us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES
4. Why Should You Buy From Us Not From Other Suppliers?
Professional technical team and perfect careful after-sale service
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
