Plywood And Panel Cutting Woodworking Sliding Table Saw

  • Plywood And Panel Cutting Woodworking Sliding Table Saw
  • Plywood And Panel Cutting Woodworking Sliding Table Saw
  • Plywood And Panel Cutting Woodworking Sliding Table Saw
  • Plywood And Panel Cutting Woodworking Sliding Table Saw
  • Plywood And Panel Cutting Woodworking Sliding Table Saw
  • Plywood And Panel Cutting Woodworking Sliding Table Saw
Place of Origin Qingdao, China
Brand Name OSETMAC
Certification CE,ISO
Model Number MJ6132BD
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Seaworthy wooden case
Delivery Time 15 days
Payment Terms T/T, L/C
Supply Ability 3000 sets per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
SLIDING TABLE 3200 COLOR WHITE
High Light

wood edge banding machines

,

edge banding trimming machine
Leave a Message
Product Description

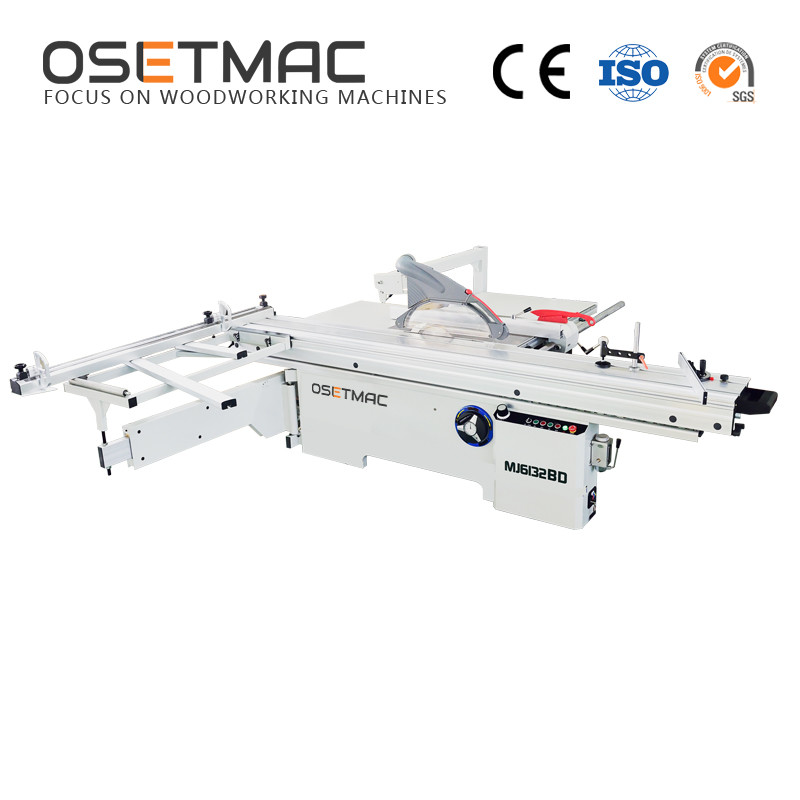

OSETMAC Sliding Table Saw MJ6132BD with Electric Lifting of Main Saw Blade and Scoring Saw Blade



Plywood And Panel Cutting Woodworking Sliding Table Saw 0

A Main Table Main working table
B Extension Table Extension working table
C Dust Guard Not only reduce dust produced by chips while cutting, but also warning the operator where the saw-blade position.
D Rip Fence Reference positioning while ripping
E Hand Swage To press the workpiece on the sliding table
F Miter Fence Reference positioning while 0-45° cutting
G Sliding Table Table for main feeding while cutting

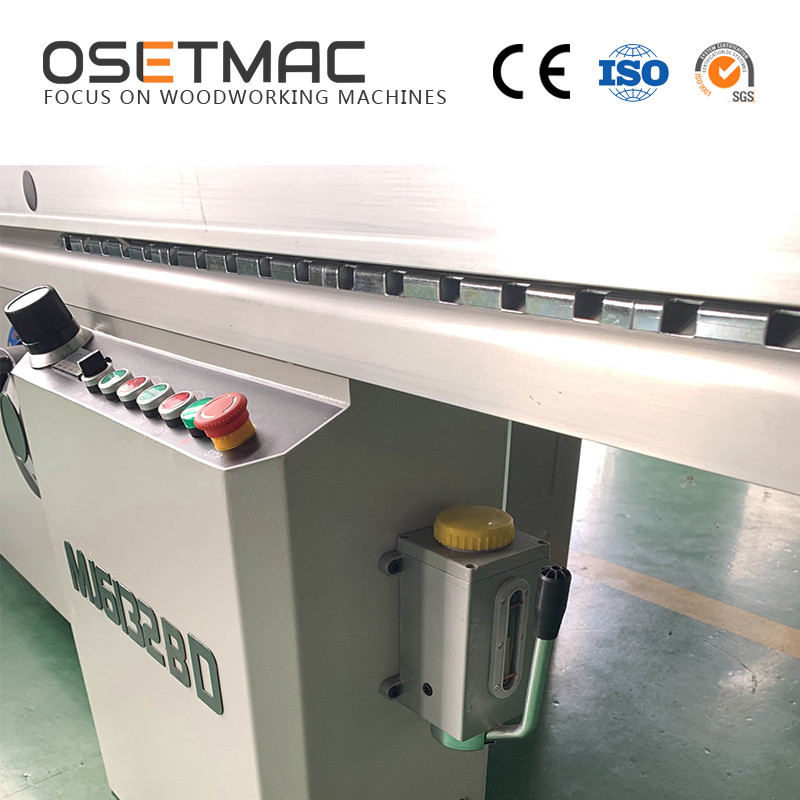

H Oiler To oil for the inner structure

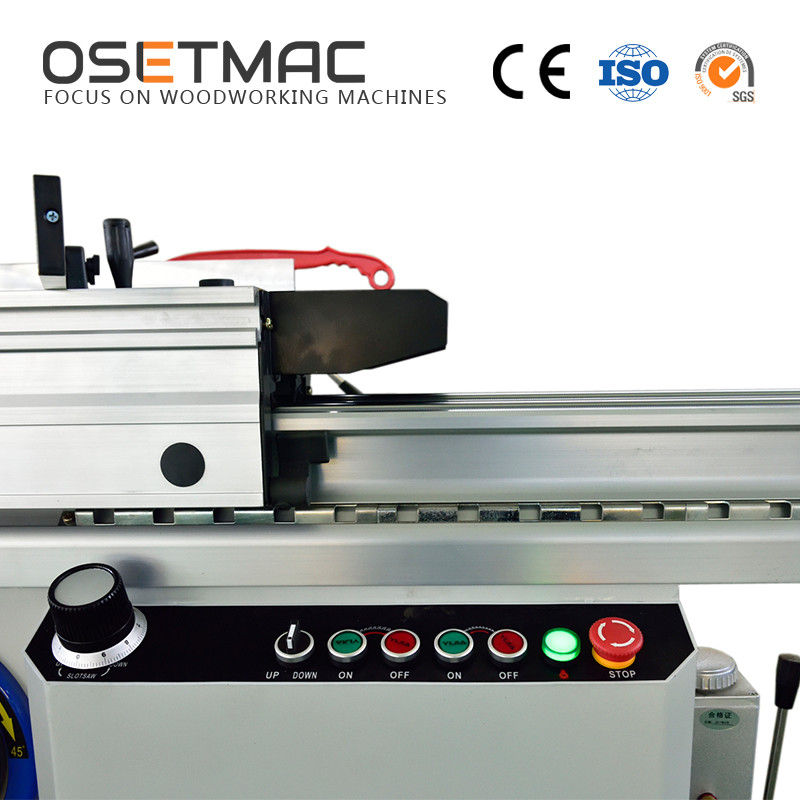

I Controlling Panel Control the machines running,indication, stop,lifting etc.
J Hand Wheel for Mail Saw Tilting To adjust main saw tilting 0-45°
K Cross Cut Table Used to put the workpiece while cross cutting
L Cross Cut Fence To position the size of the movable positioning board
M Movable Positioning Stops To position while cross cutting

Plywood And Panel Cutting Woodworking Sliding Table Saw 1

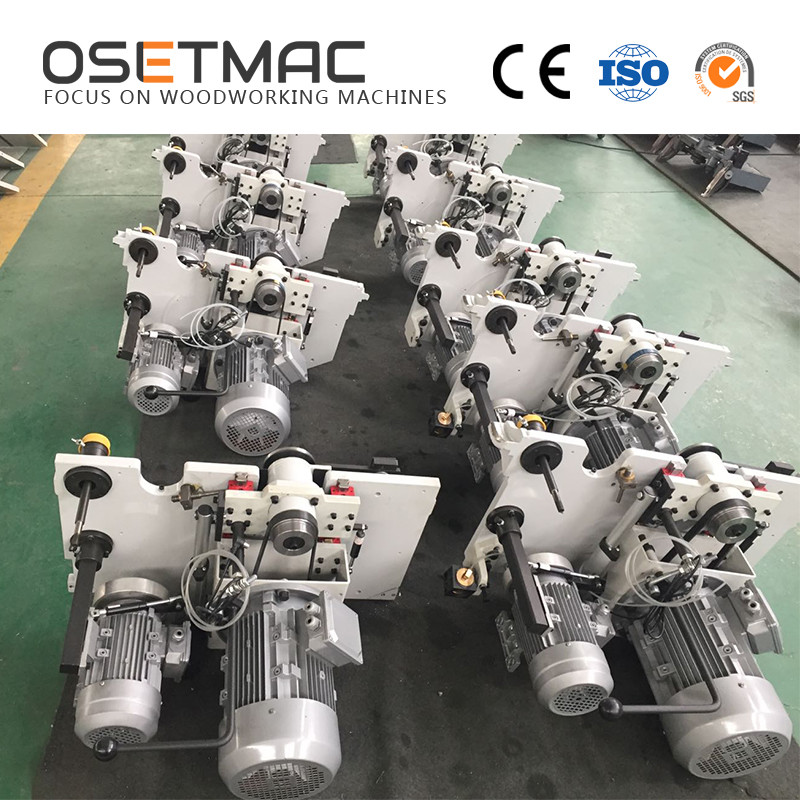

Inner Structure

This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

Plywood And Panel Cutting Woodworking Sliding Table Saw 2

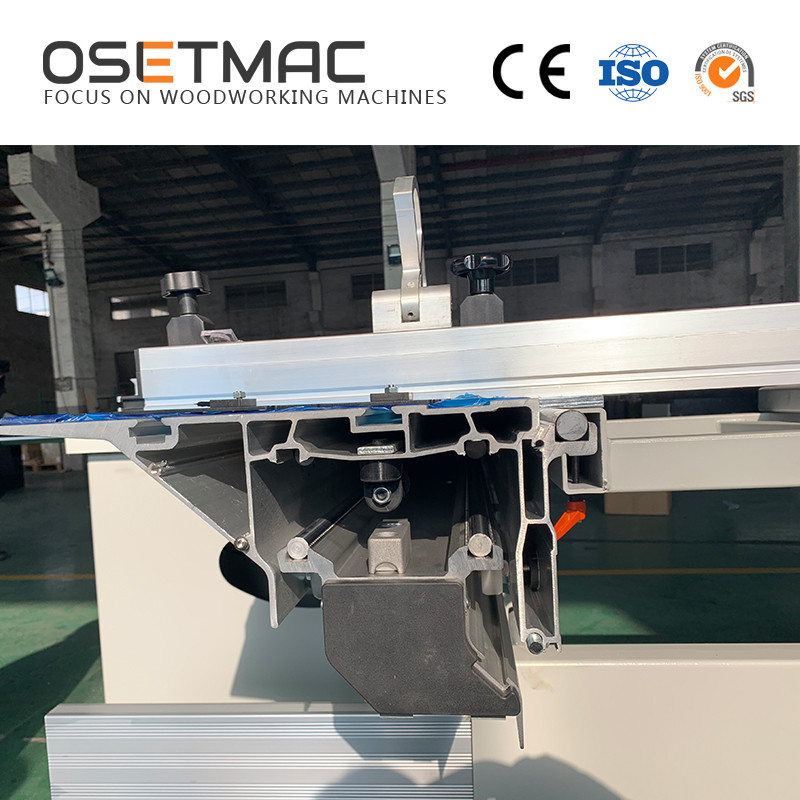

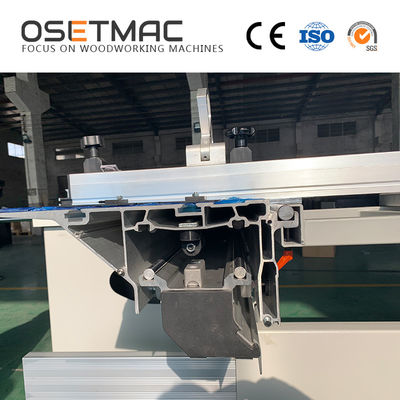

Sliding Table Structure and Feature

Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it

Plywood And Panel Cutting Woodworking Sliding Table Saw 3

Plywood And Panel Cutting Woodworking Sliding Table Saw 4

 Plywood And Panel Cutting Woodworking Sliding Table Saw 5
