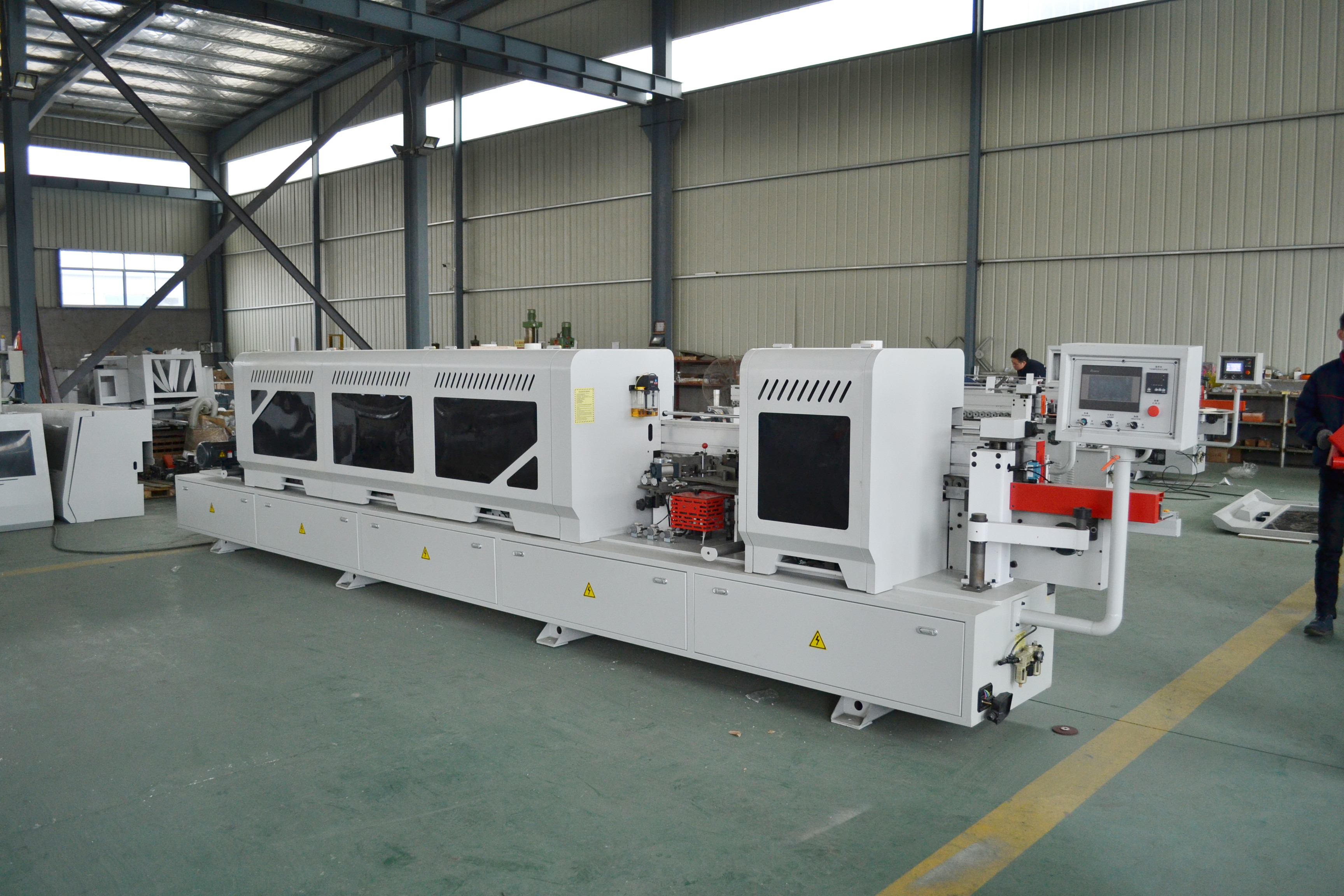

End Trimming Automatic Edge Banding Machine for Building Material Manufacturing Plants
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380V, 380V/50HZ/3PH | Dimension(L*W*H) | 6700*800*1620mm |
| Power (kW) | 16.62KW | Weight (KG) | 1980 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works , Advertising Company | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Automatic |
| Panel Feed Speed(m/min) | 23m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Bearing, Motor, PLC, Engine |
| Use | MDF Production | Panel Thickness | 10-60mm |
| Edge Band Thickness | 0.3-3mm | Panel Width | ≥60mm |
| Panel Length | ≥150mm | Working Pressure | 0.6Mpa |
| Gluing Motor | 0.75KW, 50HZ ,1400RPM | End Cutting Motor | 0.37KW * 2, 200HZ, 12000RPM |
| Trimming Motor | 0.75KW * 4, 200HZ, 12000RPM | Corner Trimming Motor | 0.37KW * 2 , 200HZ ,12000RPM; 0.75KW * 2 , 200HZ , 12000RPM |
Product Description
Product Description

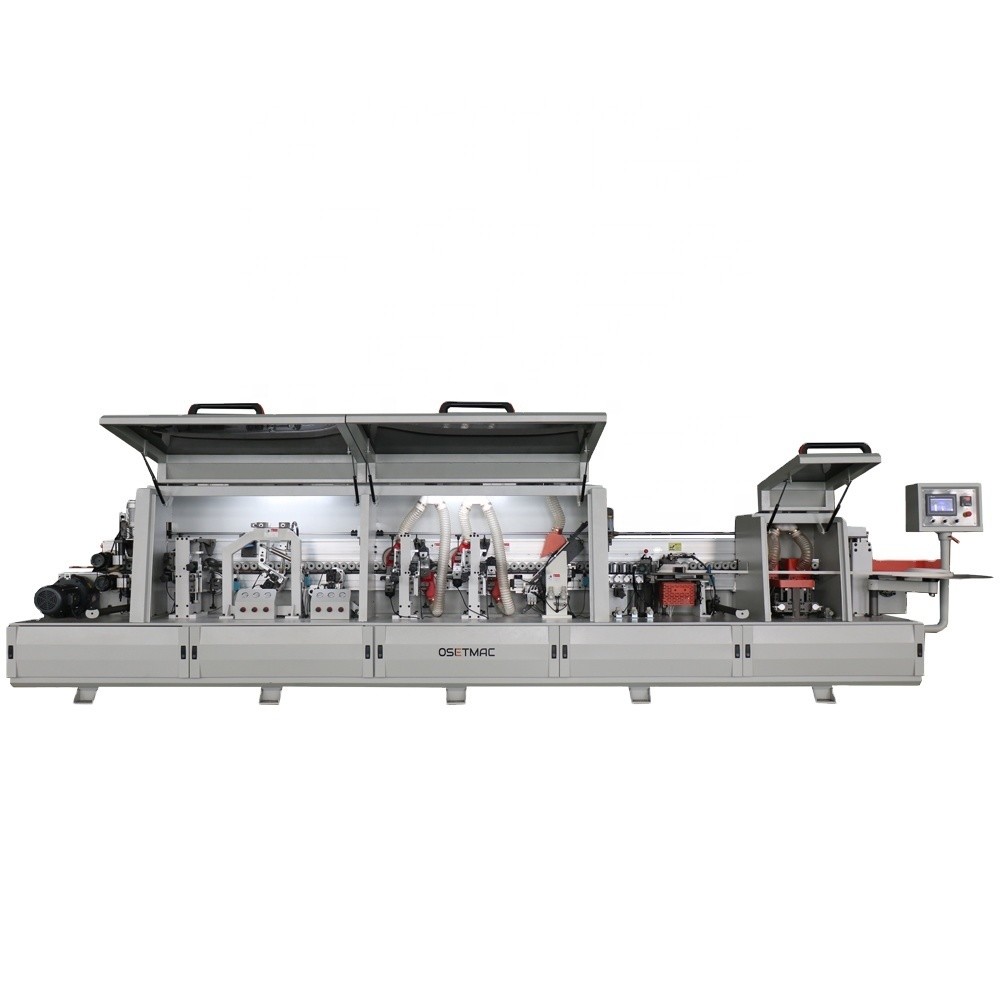

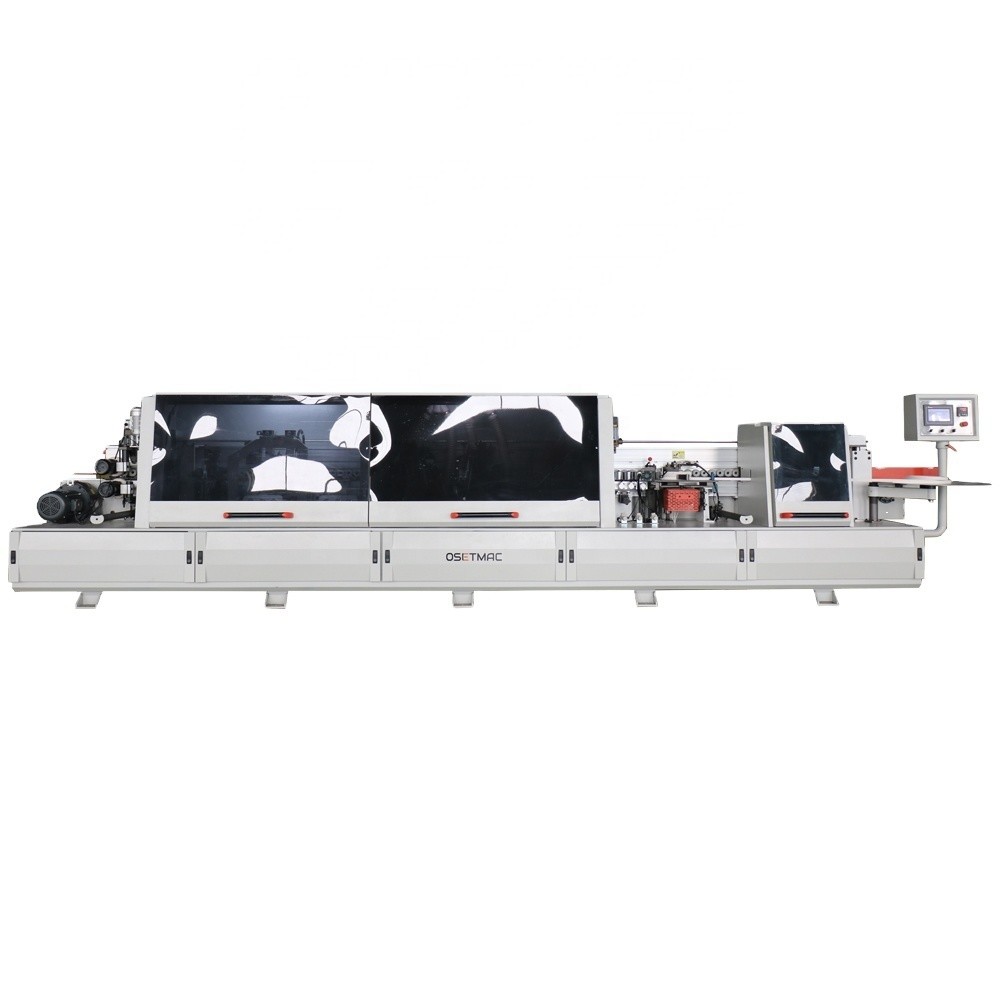

New Automatic Edge Banding Machine Pre-Milling Manufacturing Plants Building Material
* 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Machine | Function | ||||||||||||||
Pre-Milling | Gluing | End Cut | Rough Trim | Fine Trim | Corner Round | Scraping | Buffing | ||||||||
SYS-300 | ★ | ★ | ★ | ★ | |||||||||||
SYS-320 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320A | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320B | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-360 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-365J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-368J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-365 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-368 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-468 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-568 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-868 | ★ | ★ | ★ | ★ | ★★ | ★ | ★ | ||||||||
Specification
Parameters | ||||
Model | SYS-568 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Pre-milling Motor | 2.2KW * 2 | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 4 200HZ 12000RPM | |||
Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 3.7KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 16.62KW | |||
Dimension | 6700*800*1620mm | |||
Wooden Crate Package | 6800*900*1720mm | |||
