Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed

I'm Online Chat Now

Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed

China Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed supplier
Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed supplier Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed supplier

Large Image :  Woodworking Polishing Wide Belt Sanding Machine Optional Conveyor Speed

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: DT1000-6S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Working Width: 30-1000mm Application: Wood Process
Conveyor Speed: 5-20m/min Panel Length: ≥360mm
Roller Size: 300mm Panel Thickness: 10-150mm

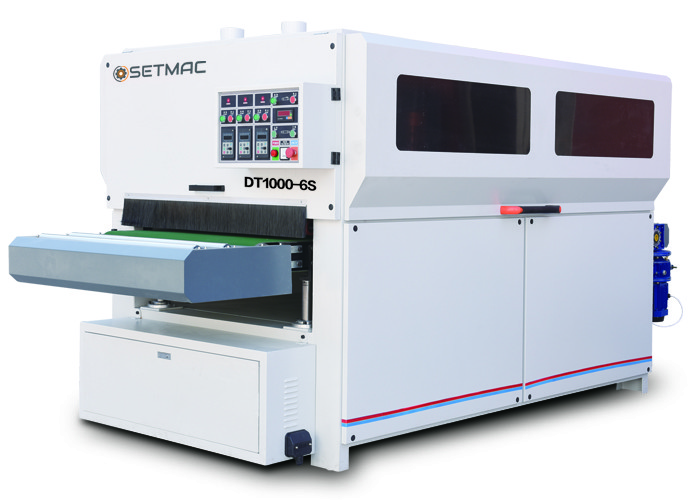

Automatic Wood Brush Sanding Machine DT1000-6S for the grinding of Door, Cabinet, Plywood and other Panel furniture or





This machine is mainly used for surface polishing and fixed thickness sanding, suitable for wood panels,flooring, furniture, artificial stone, handicrafts,wood products and other products.





1. Former sand frame is adjustable steel rollers, simple operation, the fixed thick roller and sanding pad effectively combine with high precision sanding

2. When breakdown happen,the device is powered down,transmission bed descend to protect the work piece safe.

3. Advanced balancing testing fixed thick rolls,steel rolls, pulleys,makes the machine run more smoothly

4. Elevating convey or bed microcomputer control, the error is small,fast and flexible

5. Light, electricity, gas integrated design and reliable operation







Applications:



This sanding machine is suitable for the polishing or grinding or sanding of solid wood furniture and panel furniture such as door, cabinet, etc. It usually work together with CNC router and vacuum membrane press and greatly improve work efficiency.







Specifications:



Panel Width 1000mm
Panel Thickness 10-150mm
Panel Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Roller Diameter 300mm
Total Power 11.65KW
Long Roller Motor 2.2KW*2
Conveyor Motor 1.1KW
Chain Motor 0.55KW
Disc Brush Motor 1.5KW
Disc Brush Oscillate Motor 0.55KW
Small Roller Motor 1.5KW*2
Small Roller Oscillate Motor 0.55KW
Packing Dimension 3100×1760×1900mm
Net Weight 1600KG







Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
