High Temp Painting Industrial Sanding Machine Full Automatic Compact Design

I'm Online Chat Now

High Temp Painting Industrial Sanding Machine Full Automatic Compact Design

China High Temp Painting Industrial Sanding Machine Full Automatic Compact Design supplier
High Temp Painting Industrial Sanding Machine Full Automatic Compact Design supplier High Temp Painting Industrial Sanding Machine Full Automatic Compact Design supplier High Temp Painting Industrial Sanding Machine Full Automatic Compact Design supplier

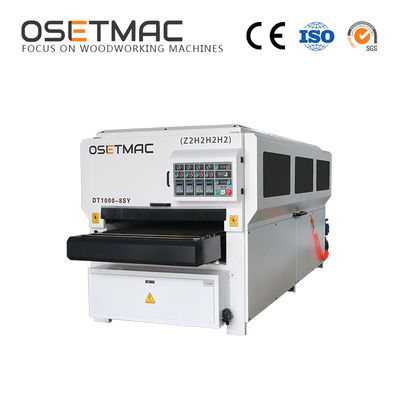

Large Image :  High Temp Painting Industrial Sanding Machine Full Automatic Compact Design

Product Details:

Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO

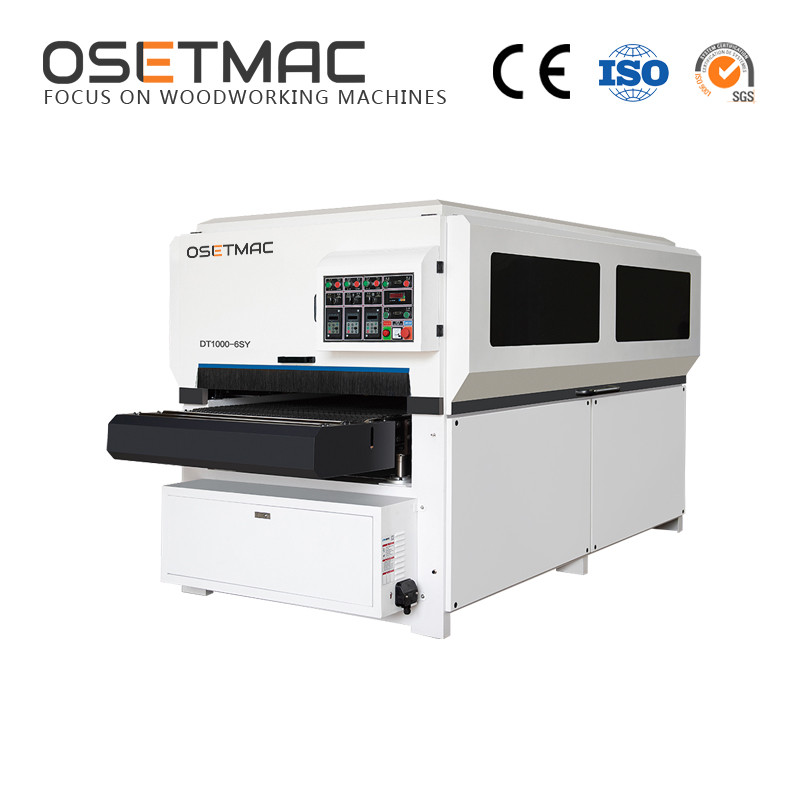

Model Number: DT1000-6SY

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year
Contact Now
Detailed Product Description
Application: Wood Panels,flooring, Furniture, Artificial Stone Usage: Wood Process
Model: DT1000-6SY Feature: Two-side
Character: Automatic Name: Woodworking Sanding Machine

Automatic Two-side Brush Grinding Machine for Woodworking Sanding such as Cabinet, Door Solid Wood and Panel Furniture





Description:

  1. The sandpaper on this machine is two-side and all rollers can change the direction of rotation, which make sure of two different polishing ways. Forward rotation for brushing bare wood and backward rotation for brushing primer wood.
  2. The sandpaper imported from Germany is really good quality and durable.
  3. There is 9 small rollers and 9 disc brushes and 2 long rollers which can oscillate to make sure the perfect polishing effect.
  4. The speed of rollers are adjustable so that the workers can adjust the speed according to different materials.
  5. This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
  6. High precision and easy-to-use features makes your work more efficient.
  7. This machine is time-saving, labor-saving, and manpower- saving.
  8. Covered by a 1-year parts warranty.





Quick Detail:

  1. Hermas sandpaper imported from Germany
  2. One machine, two sanding ways
  3. Different rollers assembly
  4. All rollers can oscillate
  5. Good quality motor and inverter and parts
  6. fine adjustment of each group of rollers
  7. High-temperature painting





Applications:



This sanding machine is suitable for the polishing or grinding or sanding of solid wood furniture and panel furniture such as door, cabinet, etc. It usually work together with CNC router and vacuum membrane press and greatly improve work efficiency.







Specifications:



Panel Width ≤1000mm
Panel Thickness 10-150mm
Panel Length ≥360mm
Conveyor Speed 5-20m/min
Roller Speed Frequency Control
Roller Diameter 300mm
Total Power 12.2KW
Long Roller Motor 2.2KW*2
Conveyor Motor 1.1KW
Chain Motor 0.55KW
Disc Brush Motor 1.5KW
Small Roller Motor 1.5KW*2
Disc Brush Oscillate Motor 0.55KW
Small Roller Oscillate Motor 0.55KW
Long Roller Oscillation Motor 0.55KW
Packing Dimension 3100×1760×1900mm
Net Weight 2000KG







Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
