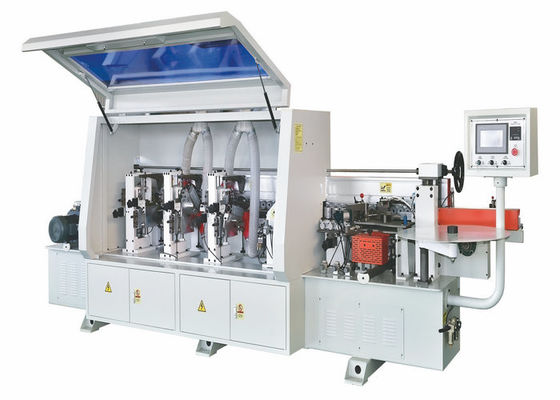

High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen

High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen
High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen

Large Image :  High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen

Product Details:
Place of Origin: Qingdao, China
Brand Name: OSETMAC
Certification: CE,ISO
Model Number: SYS-368
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Seaworthy wooden case
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per year

High Efficiency Woodworking Edge Banding Machine With PLC Touch Screen

Description
Detail: Delta PLC Touch Screen Application: Panel Furniture And PVC
Model: SYS-368 Feature: With Trimming
Feeding Speed: 15-23m/min
High Light:

woodworking edge bander

,

edge banding trimming machine

SYS-368 Automatic Edge Bander with Trimming for Panel Furniture and PVC





Quick Detail:





1) Pre-mlling equipment with double trim-blades works on the waved effect that is caused by precise dimersicen saw.

2) The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

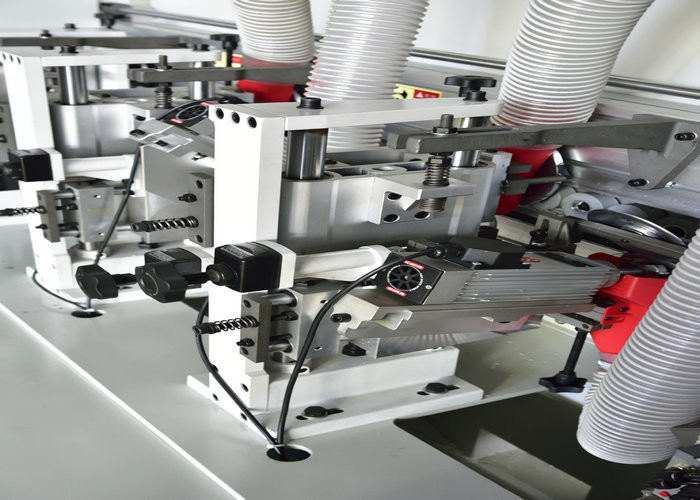

3) Fine Trimming Unit , with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even.

4) The buffing device adopt the board processed by cotton polishing wheel, by end- polishing to make a more smooth surface.

5) End-cutting mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the Cutting surface smoothly.

6) Scraping unit for a perfect finishing of the applied edge.





Applications:



This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.





Specifications:



MODEL SYS-368
Panel Thickness 10-60mm
Edge Band Thickness 0.4-3mm
Panel Width ≥60mm
Panel Length ≥150mm
Feeding Speed 15-23m/min
Working Pressure 0.6Mpa
Voltage 380V/50HZ/3PH
Gluing Motor 0.75KW 50HZ 1400RPM
End Cutting Motor 0.37KW * 2 200HZ 12000RPM
Trimming Motor 0.75KW * 4 300HZ 18000RPM
Buffing Motor 0.37KW * 2 50HZ 1400RPM
Conveyor Motor 2.2KW
Lifting Motor 0.25KW
Glue Pot Heating Power 1.85KW
Assistant Heating Power 0.45KW
Lighting Power 0.08KW
Total Power 10.4KW
Dimension 4417x830x1610mm
Net Weight 1500KGS



Competitive Advantage:

  1. We can customize the outlook and functions of the machine according to your requirement.
  2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
